- Product Details
- {{item.text}}
Quick Details
-
System Pressure:
-
32 MPa (320 bar)
-
Ram Speeds- Rapid Forward:
-
2160/min.
-
Maximum Track Link Pitch:
-
317 mm
-
After Warranty Service:
-
Video technical support, Online support
-
After-sales Service Provided:
-
Video technical support, Online support
-
Capacity:
-
3,922 kN/400T (each ram)
-
Ram Diameter:
-
300 mm
-
-Press:
-
360 mm/min.
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GM, GM
-
Type:
-
300Ton Hydraulic press machine
-
System Pressure:
-
32 MPa (320 bar)
-
Ram Speeds- Rapid Forward:
-
2160/min.
-
Maximum Track Link Pitch:
-
317 mm
-
After Warranty Service:
-
Video technical support, Online support
-
After-sales Service Provided:
-
Video technical support, Online support
-
Capacity:
-
3,922 kN/400T (each ram)
-
Ram Diameter:
-
300 mm
-
-Press:
-
360 mm/min.
Product Description

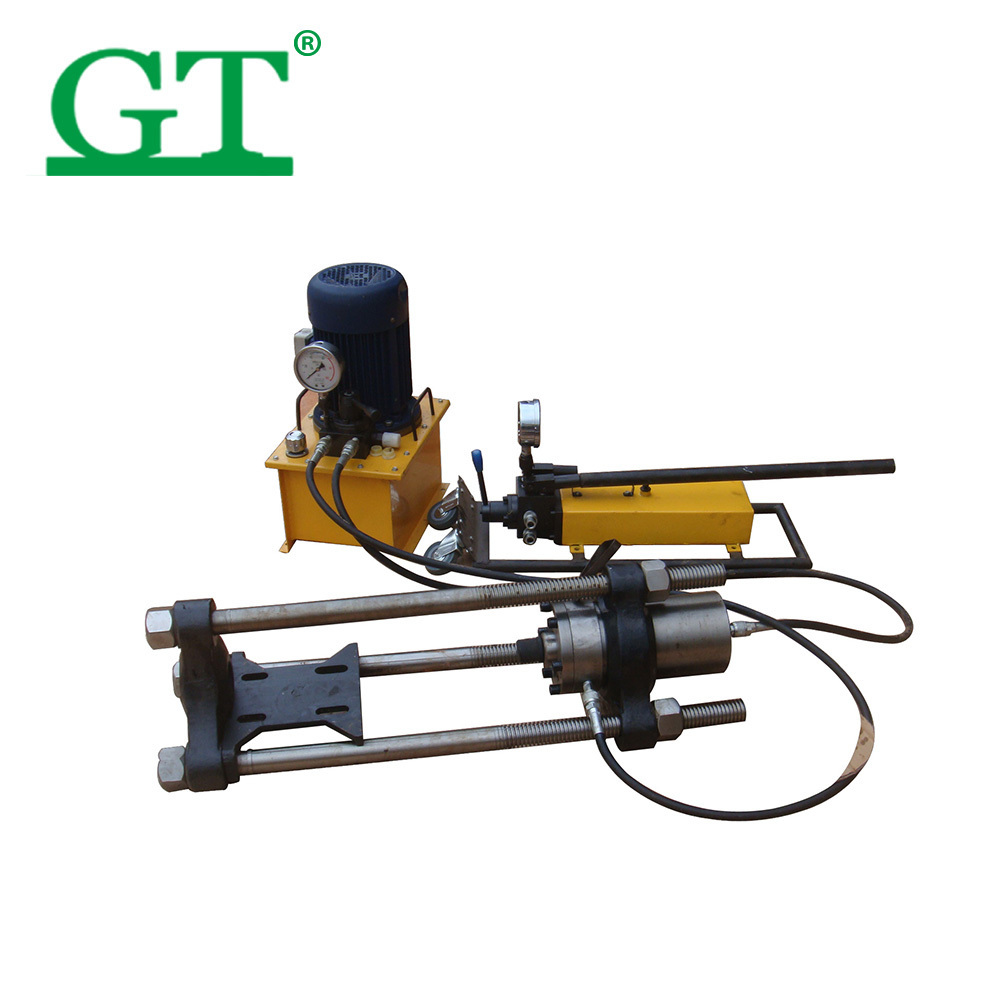

Hydraulic track presses are used for the removal or installation of the pins from the undercarriage tracks of excavators,bulldozers, tractors and similar track propelled machinery. High hydraulic pressures are required to force the pins which hold the modular plates, a portable hydraulic track field press (manual hydraulic or electric pump) is available for smaller machine tracks and larger fixed electrical machines are available for larger machinery tracks (suited for workshop).
Specification
|
Type |
Machine type
|
Fit for pitch (mm)
|
Mould
|
unit price USD FOB Chinese port
|
Fit machine
|
Efficiency
|
|
|
|
|
qty
|
|
Example of Komatsu
|
|
|
1
|
Manual press link machine weight about 250Kgs
|
GT150-1
|
175,190
|
1
|
2500
|
PC100,PC200
|
|
|
|
GT150-2
|
175,190,203
|
2
|
2600
|
PC100,PC200,
|
|
|
|
|
|
|
|
PC300
|
|
|
|
GT150-3
|
175,190,203,216
|
3
|
2800
|
PC100,PC200,
|
|
|
|
|
|
|
|
PC300,PC400
|
|
|
|
GT200
|
175,190,203,216,228
|
4
|
3100
|
PC100,PC200,
|
|
|
|
|
|
|
|
PC300,PC400-6
|
|
|
|
GT200-1
|
Only for 280
|
1
|
3650
|
PC600,D9,D10
|
|
2
|
Manual & Electronic press link machine, weight about 300Kgs
|
GT150-1E
|
175,190
|
1
|
3340
|
PC100,PC200,
|
|
|
|
GT150-2E
|
175,190,203
|
2
|
3440
|
PC300
|
|
|
|
GT150-3E
|
175,190,203,216
|
3
|
3640
|
PC100,PC200,
|
|
|
|
GT200E
|
175,190,203,216,228
|
4
|
3940
|
PC100,PC200, PC300,PC400-6
|
|
|
|
GT200-1E
|
Only 280
|
1
|
4490
|
PC600,D9,D10
|
The double-acting cylinders equipping the presses have been built according to the latest techniques .
The remarkable length of stroke makes it possible to carry through assembling and disassembling of track chains without any work
stoppage . provisions on cylinder head and piston rod end allow fitting tooling for the different servicing operations .
The two quick half couplers ,cylinder side, are supplied only upon request.
Notes:
1.Life Guarantee: 6 months .
2. Price valid time: 30 days.
3.Delivery date: with 30 days.
4. In order to increase efficiency, we suggest you order type E .
