Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 200*200*60 mm, Other, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinlong
-
Voltage:
-
220v,380v
-
Dimension(L*W*H):
-
1700*1600*1680mm
-
Marketing Type:
-
Hot Product 2024
-
Weight (KG):
-
1000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
every molding time:
-
45 seconds
-
workshop:
-
30-50m2
-
total plant aera:
-
300-500m2
-
suitable mixer:
-
JS350 mixer
-
type:
-
mobile with four wheels,no need pallet
-
main market:
-
Africa,Middle East South America,Austrilia
-
Overall Dimensions:
-
1700*1600*1650mm
-
Weight:
-
1000KG
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 5760 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 200*200*60 mm, Other, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinlong
-
Voltage:
-
220v,380v
-
Dimension(L*W*H):
-
1700*1600*1680mm
-
Marketing Type:
-
Hot Product 2024
-
Weight (KG):
-
1000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
every molding time:
-
45 seconds
-
workshop:
-
30-50m2
-
total plant aera:
-
300-500m2
-
suitable mixer:
-
JS350 mixer
-
type:
-
mobile with four wheels,no need pallet
-
main market:
-
Africa,Middle East South America,Austrilia
-
Overall Dimensions:
-
1700*1600*1650mm
-
Weight:
-
1000KG

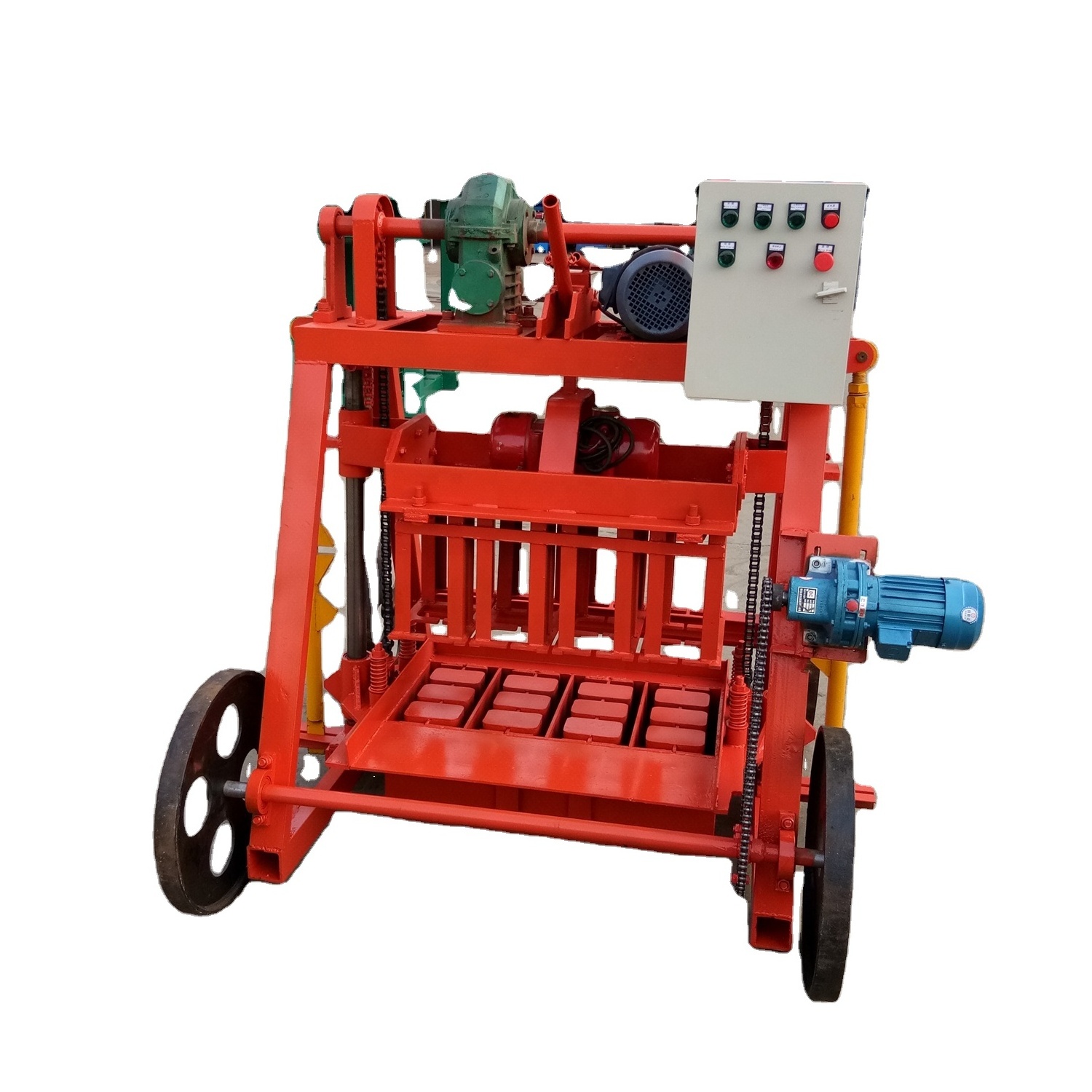

The introduction of QMY4-45 mobile blockmachine:
Mobile block making machine QMY4-45 is small and exquisite, very smart; four wheels can move to the right place according to your different requirements, So as to achieve the purpose to save the area.
Two workers can complete the work, very economical and practical.
1. mobile block machine QMY4-45 Productivity
Size Quantity Cycle molding Per hour
400×200×200 mm 4pcs/mould 45~50s 300 pcs
400×150×200 mm 5pcs/mould 43~48s 400 pcs
400×120×200mm 6pcs/mould 42~48s 480 pcs
2. Mobile Block Machine Main Technical Specification
Overall size: 1700×1600×1650mm
Main vibration : Platform
Vibration frequency : 2400 r/min
Pallet Size: no need
Molding Cycle: 40-45s
Power: 8.8kw
Weight: 1.0 T
Raw Materials: Crushed stone, sand, cement, dust and coal fly ash,
cinder, slag, gangue, gravel, and other industrial wastes.
Applied Products: concrete blocks, solid/hollow/cellular masonry products,
paving stones with or without face mix, garden and landscaping
products, slabs, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields: widely used in buildings, road pavers, squares, gardens,
landscaping, city constructions, etc.
