Quick Details
-
Appreance:
-
Aluminum structure, modular design
-
Drive Tool:
-
drill Operated
-
Maximum Presure:
-
70Mpa / 10000psi / 680bar
-
Drive Power:
-
220V or 110V
-
Working pressure:
-
195 to 390 bar
-
Sealing agent applied:
-
Polyurethane resin, epoxy resin
-
Net Weight:
-
7.5 KGS
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
RUTH or OEM
-
Product name:
-
Crack injection pump
-
Appreance:
-
Aluminum structure, modular design
-
Drive Tool:
-
drill Operated
-
Maximum Presure:
-
70Mpa / 10000psi / 680bar
-
Drive Power:
-
220V or 110V
-
Working pressure:
-
195 to 390 bar
-
Sealing agent applied:
-
Polyurethane resin, epoxy resin
-
Net Weight:
-
7.5 KGS

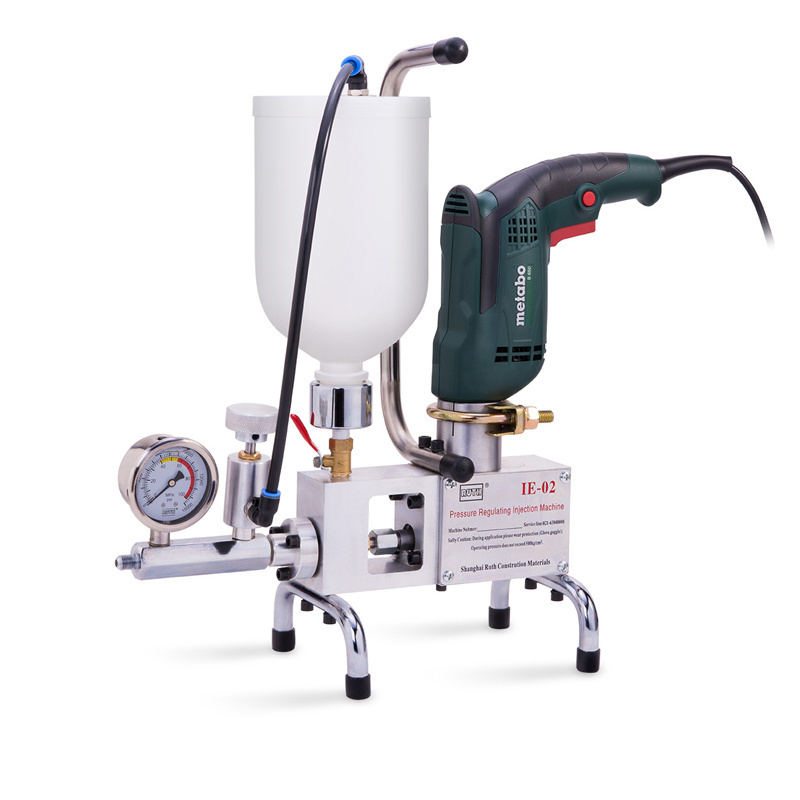

High Pressure Portable Injection Pump
Product Introduction
Ruth IE-02, High Pressure Portable Injection Pump, adds an adjustable pressure regulator onto the basic edition IE-03. It prevents the machine and the hose system from exceeded pressure, which results in damaging and/or breaking the whole system. This is the professional machine for h ydrophilic polyurethane (WPU), hydrophobic polyurethane (OPU), and epoxy resin injection. The pressure which is created can inject materials into 0.02mm hairline cracks. It is widely used in waterproof, water leakage seal, and concrete crack repair. IEs are well known for their light weight, small size, simple to operate and maintain, and long product life. It is the best choice for stanch workers.
Product Description
1. Product Name: IE-02a / IE-02b
2. Power Consumption: IE-02a (with Metabo drill) 560W/ 200V or 110V,
IE-02b (with Ruth drill) 500W/220V
3. One Ways of Material Feed-In: Pour
4. Adjustable Pressure Regulator
5. Single Component
Specification
No. | Item | Standard |
1 | Appearance | Aluminum structure, modular design |
2 | Volume | 450mm length * 500mm height * 230mm width |
3 | Drive tool | Metabo B561 electrical drill |
4 | Drive power | 220V/110V,50HZ,26A,560W |
5 | Maximum pressure | 70Mpa / 10000psi / 680bar |
6 | Working pressure | 20-40MPa / 2800-5600psi / 195-390bar |
Weight |
9 Kgs / 20Lbs. |
Maximum Output Pressure |
70 MPa / 10,000 Psi |
Pressure of Restarting |
Less than 20 MPa / 2,900 Psi |
Safe range of High-Pressure Hose |
Less than 70 MPa / 10,000 Psi |
Safe Range of Switch Valve |
Less than 50 MPa / 7,250 Psi |
Materials of Application
Hydrophilic Polyurethane (WPU) and Hydrophobic Polyurethane (OPU) foam stop leakage agent, Epoxy Resin.
Application Field
Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement Hairline Crack, etc., water stop projects.
Full Set per Purchase Includes:
1. IE-02a / IE-02b Machine
2. Accessories Parts: High-Pressure Hose (4.5 m), On & Off Valve, Coupler (Zerk)
3. Tool Kit
4. Standby Repair Parts
5. Other types of high pressure hose available
High Pressure Portable Epoxy Injection Pump
Transportation / Packing
Packing Size: 46*22*49 cm / Carton
Transportation by Air: Arrival within 2-7 days upon receipt of payment, excluding weekends and holidays.
Transportation by Ship: Delivery within 3-10 days upon receipt of payment, excluding weekends and holidays.
Detail: 20 carton per pallet (1*1 M)
