Quick Details
-
Model Number:
-
ID 3/8" 1/2"
-
Material:
-
CSM NBR
-
Application:
-
Fuel, Air
-
Color:
-
Red Blue Black
-
Working pressure:
-
300 Psi (20 Bar)
-
Feature:
-
Non-clamping
-
Surface:
-
Smooth
-
ID:
-
12.7 MM
-
OD:
-
21 MM
-
Bursting pressure:
-
1200 Psi
-
Temperature:
-
-30 to 120 deg C
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Paishun
-
Model Number:
-
ID 3/8" 1/2"
-
Material:
-
CSM NBR
-
Application:
-
Fuel, Air
-
Color:
-
Red Blue Black
-
Working pressure:
-
300 Psi (20 Bar)
-
Feature:
-
Non-clamping
-
Surface:
-
Smooth
-
ID:
-
12.7 MM
-
OD:
-
21 MM
-
Bursting pressure:
-
1200 Psi
-
Temperature:
-
-30 to 120 deg C

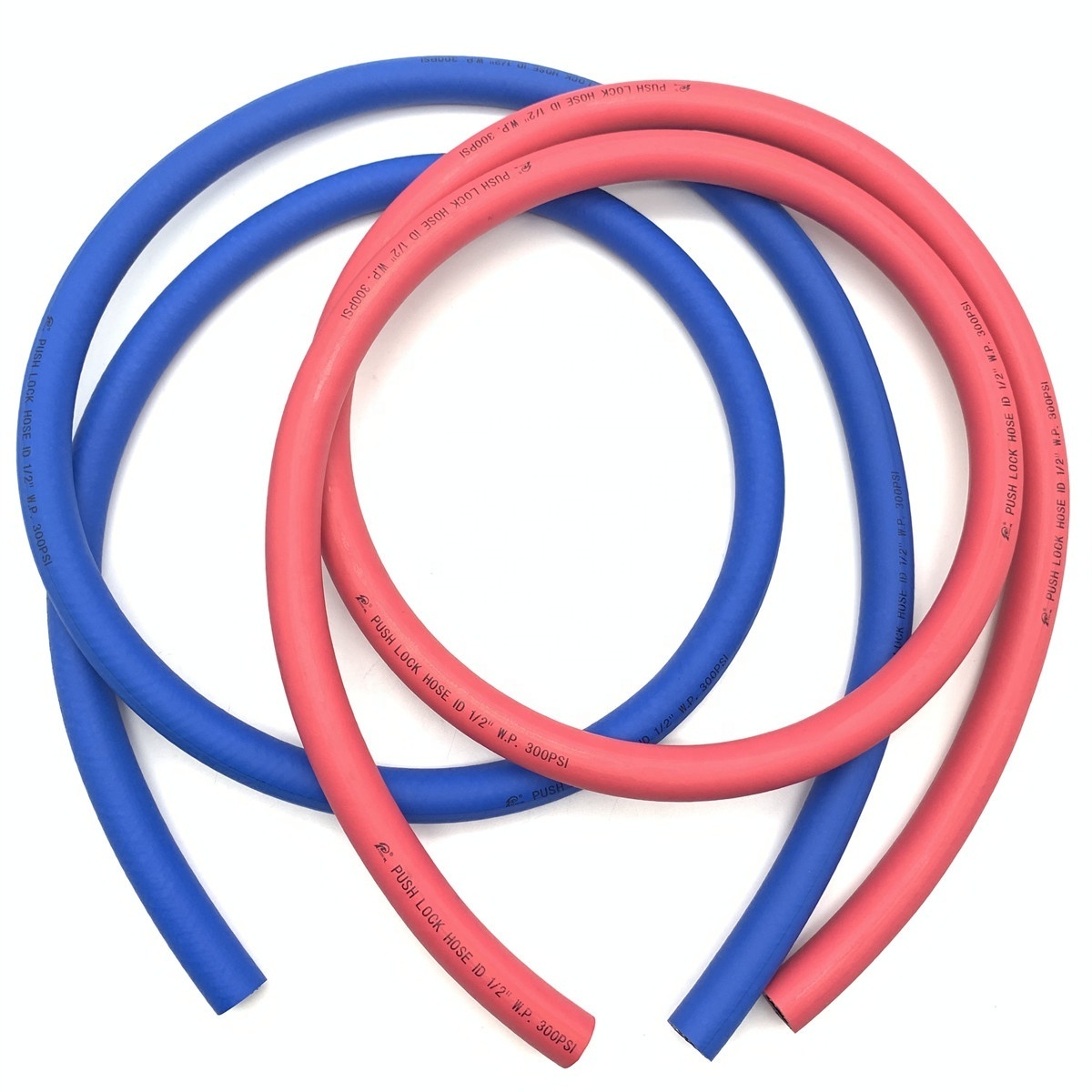

PUSH Lock HOSE
Non-clamp fastening, RMA super oil resistant, wear resistant and bending resistant;
120℃ temperature resistant, applicable to outdoor harsh environment, excellent durability;
Application: High-quality multipurpose push-on hose is especially designed for manipulators and automation equipment, with flexibility, durability and high tensile strength. It is especially suitable for transporting gas, oils, air, water and emulsified liquid at rigorous occasions in assembly line, mold, robot and T-grade welding. It is non-conducting, and can withstand 6000V or above voltage.
Technical characteristics: It is produced according to the highest European and American standards, so that it can withstand severe tests in aspect of air-tightness, durability and pressure safety.
The hose stands 5 million times of bending tests, is applicable to rolling-up of spindle, in particular to occasions needing repeated bending or friction;
It has excellent anti-UV property, can be used around clock.
By dedicated push-on connectors, it can be fastened without clamps.
Structure: Inner rubber layer: black RMA-A super oil-resistant and gas-tight NBR synthetic rubber;
Outer rubber layer: Oil-resistant, wear-resistant and super anti-aging CSM synthetic rubber.
Reinforced layer: high-strength fiber reinforced layer.
Appearance: Glossy, commonly in black, red or blue, or customized colors.
Working pressure: W.P 300 PSI
Safety factor: 4 times
Temperature: -30 to 120℃ (Free clip fastening temperature -30 to 80 ℃ ; With clamps temperature -30 to 120 ℃ )
Packing: Standard export packing with double protection. Available for specific length cutting and pallet package according to customer needs.
Technical standard: ISO 19013 AS 1869
|
Product number |
specifications |
I.D (mm) |
O.D (mm) |
W.P (PSI) |
B.P (PSI) |
Bend Radius (mm) |
Weight (kg/m) |
Length (m/pc) |
|
push on hose -06 |
1/4" |
6.4 |
13.0 |
300 |
1200 |
50 |
0.15 |
100 |
|
push on hose -08 |
5/16" |
7.9 |
15.0 |
300 |
1200 |
60 |
0.18 |
100 |
|
push on hose -10 |
3/8" |
9.5 |
17.0 |
300 |
1200 |
70 |
0.23 |
100 |
|
push on hose -13 |
1/2" |
12.7 |
21.0 |
300 |
1200 |
120 |
0.31 |
100 |
|
push on hose -16 |
5/8" |
15.9 |
24.0 |
300 |
1200 |
150 |
0.38 |
60 |
|
push on hose -19 |
3/4" |
19.0 |
28.0 |
300 |
1200 |
170 |
0.50 |
60 |
|
push on hose -25 |
1" |
25.4 |
36.0 |
300 |
1200 |
200 |
0.74 |
60 |
