Quick Details
-
Product name:
-

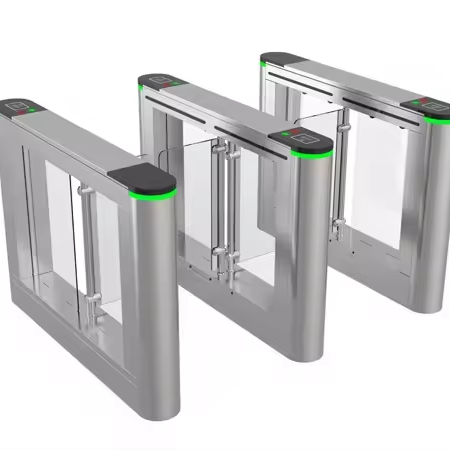

Swing Turnstile
-
Material:
-
304 Stainless Steel
-
Application:
-
Security Access Control Management
-
Type:
-
Single Core
-
Size:
-
1200*300*980mm
-
Working environment:
-
Temperature: -10 ~ +60
-
Power supply:
-
AC 220V/110V 10% 50/60MHZ (optional)
-
Direction:
-
Bi-direction Adjustable
-
Color:
-
Silver
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DQ
-
Model Number:
-
TP-3501
-
Product name:
-
Swing Turnstile
-
Material:
-
304 Stainless Steel
-
Application:
-
Security Access Control Management
-
Type:
-
Single Core
-
Size:
-
1200*300*980mm
-
Working environment:
-
Temperature: -10 ~ +60
-
Power supply:
-
AC 220V/110V 10% 50/60MHZ (optional)
-
Direction:
-
Bi-direction Adjustable
-
Color:
-
Silver
-
Warranty:
-
1 Year
Product Description
Specification
|
Model No.
|
TP-3306
|
|
Cabinet Material
|
304 Stainless Steel
|
|
Dimensions
|
Cabinet:420*330*980mm
|
|
Weight
|
60KG
|
|
Motor Type
|
Single motor
|
|
Arm Length
|
≤600-1200mm
|
|
Passage Width
|
≤1200-2200mm
|
|
Dry Contact
|
12V
|
|
Material Thickness
|
1.5mm
|
|
Card-reading Window
|
One
|
|
Direction
|
Unidirectional
|
|
Service Life
|
5million times
|
|
Operating Temperature
|
-25℃ ~ +60℃
|
|
Related Humidity
|
≥90%RH
|
|
Communication Interface
|
TCP/IP
|
|
Power Supply
|
AC 220V/110V ±10% 50/60MHZ (optional)
|
|
Opening Speed
|
30-45persons per minute
|
|
Closing Speed
|
25-35 persons per minute
|
