Quick Details
-
Brand Name:
-
GMG
-
Dimension(L*W*H):
-
2930*2761*3053
-
Weight:
-
20 KG
-
Product name:
-

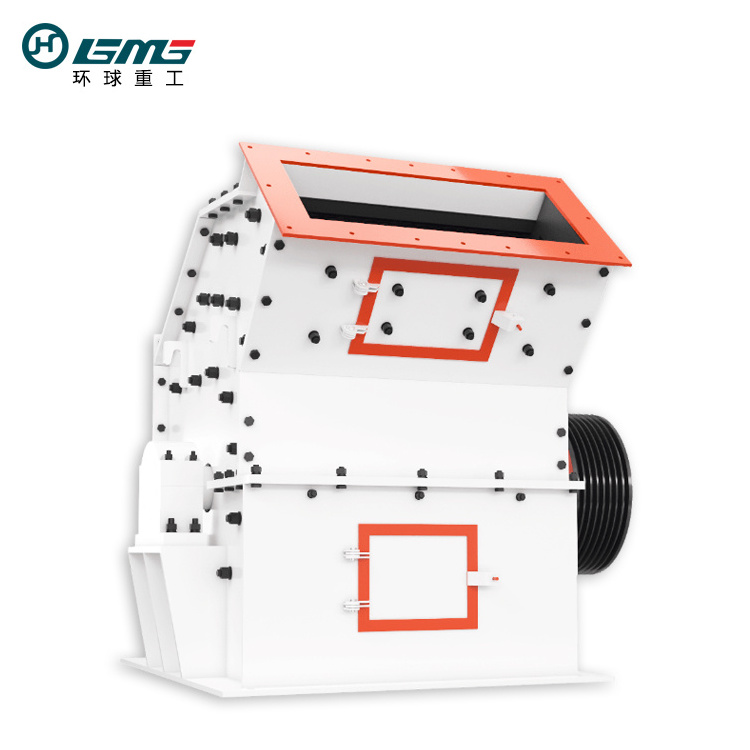

PF series Impact Stone Crusher Limestone impactor secondary Crusher
-
Model:
-
PF1315
-
Color:
-
Customizable
-
Max feeding size:
-
350mm
-
Output size:
-
0-40mm
-
Capacity:
-
150-200tph
-
Motor:
-
160kw
-
Delivery Time:
-
10-15 Days
Quick Details
-
Application:
-
Mining and Quarry
-
Capacity(t/h):
-
150-200
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GMG
-
Dimension(L*W*H):
-
2930*2761*3053
-
Weight:
-
20 KG
-
Product name:
-
PF series Impact Stone Crusher Limestone impactor secondary Crusher
-
Model:
-
PF1315
-
Color:
-
Customizable
-
Max feeding size:
-
350mm
-
Output size:
-
0-40mm
-
Capacity:
-
150-200tph
-
Motor:
-
160kw
-
Delivery Time:
-
10-15 Days
China primary impact crusher stone crusher gravel impact crusher
The impact crusher adopts new manufacturing technology and unique structural design, making the finished product particles to be cube, no tension and cracks, particle shape is better. The equipment can crush all kinds of coarse, medium and fine materials (such as granite, limestone, concrete aggregate, etc.) whose grain size does not exceed 800mm and compressive strength does not exceed 350MPA.
|
Model |
Specification |
Feed Opening Size(mm) |
Feeding Size (mm) |
Capacity (t/h) |
Motor Power(kw) |
Overall Dimension(mm) |
|
PF-1007 |
Φ1000 × 700 |
400 x 730 |
≤250 |
15-60 |
45 |
2319 x 1654 x 2558 |
|
PF-1010 |
Φ1000 × 1050 |
400 x 1080 |
≤300 |
50-90 |
55 |
2319 x 2001 x 2558 |
|
PF-1210 |
Φ1250 × 1050 |
450 x 1060 |
≤300 |
80-150 |
90 |
2585 x 2053 x 2809 |
|
PFV-1214 |
Φ1250 × 1400 |
450 x 1440 |
≤300 |
100-200 |
132 |
2582 x 2403 x 2809 |
|
PFV-1315 |
Φ1320 × 1500 |
550 x 1530 |
≤350 |
130-280 |
160 |
2930 x 2761 x 3053 |
|
PFV-1320 |
Φ1320 × 2000 |
610 x 1900 |
≤500 |
180-400 |
220 |
3224 x 3175 x 2706 |
|
PFV-1520 |
Φ1500 x 2000 |
830 x 2040 |
≤700 |
300-550 |
315-400 |
3959 x 3564 x 3330 |
|
PFV-1820 |
Φ1800 x 2000 |
1260 x 2040 |
≤800 |
600-800 |
630-710 |
4400 x 3866 x 4009 |
