Quick Details
-
Brand Name:
-
MSL
-
Model Number:
-
SE-2012
-
Product name:
-
Twelve channels ECG machine
-
Display:
-
OLED -screen
-
High Frequency:
-
70Hz/100Hz/150Hz
-
Standard/Cabrera:
-
12-Leads
-
System input:
-
RS-232/ USB2.0/ RJ-45/ SD Interface
-
Dimension:
-
86mmx54mmx18mm
-
Weight:
-
78g
-
Storage Type:
-
Nandflash Storage
-
Recording mode:
-
Thermal array printer
-
Battery:
-
1 AAA alkaline battery
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MSL
-
Model Number:
-
SE-2012
-
Product name:
-
Twelve channels ECG machine
-
Display:
-
OLED -screen
-
High Frequency:
-
70Hz/100Hz/150Hz
-
Standard/Cabrera:
-
12-Leads
-
System input:
-
RS-232/ USB2.0/ RJ-45/ SD Interface
-
Dimension:
-
86mmx54mmx18mm
-
Weight:
-
78g
-
Storage Type:
-
Nandflash Storage
-
Recording mode:
-
Thermal array printer
-
Battery:
-
1 AAA alkaline battery
Product Description

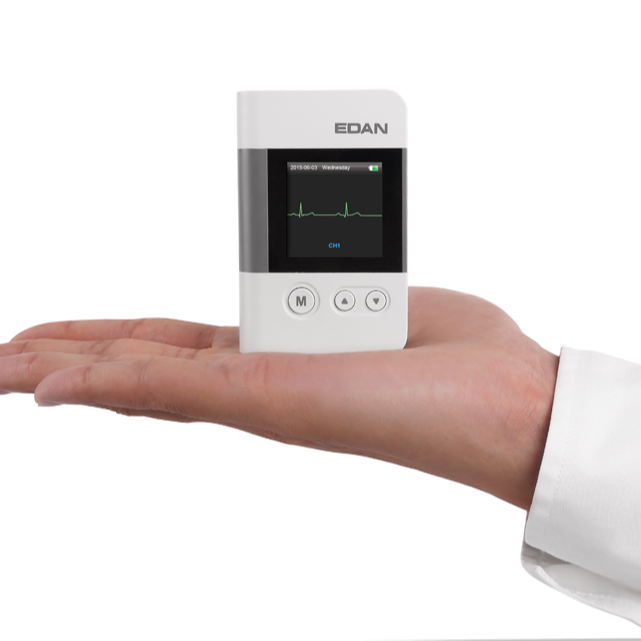

EDAN SE-2012 ECG 3 Channel 12 channel Holter
Up to 8 days recording
cable heart rate monitor
Recorder Features
The 24-hour full-information synchronous uncompressed high fidelity record of standard electrocardiogram is realized
Recorder:
Light-weight recorder
Waterproof design
3/12-channel digital recording
Real-time waveforms display on the recorder
Pacemaker detection
Up to 8 days recording with only one AAA battery
Demix tool is available to discriminate and edit different QRS shapes
Flexible Lorenz Scatter Plot Edit for beat editing according to time range and beat type
Automatic pacemaker analysis: VVI, AAI, DDD etc.
Fibrillation/ Flutter Detection and Edit
Software Features
High-performance data filtering to remove all kinds of noise interference in the recording process.
High-performance data filtering to remove all kinds of noise interference in the recording process.
Special Two-grade Pacemaker Dectection Circuit Design to Ensure Accurate Pacemaker Detection.
It has many functions, such as Overlay Beat Analysis, Lorenz Scatter Plot Edit, automatic analysis of atrial fibrillation Analysis, pacemaker , Accurate ST Segment Analysis , histogram and so on.
It has powerful analytical tools such as HRV, HRT, DC, TWA, AC, SA , and automatic analysis function of atrial fibrillation/flutter.
Patient info can be written to Recorde Before Recording
512M bytes Nandflash to storage 24 hours ECG data, no data compression
Real-time clock, no need to enter record time and date
Technical parameters
|
Lead
|
3-lead/12-lead
|
|
Record time:
|
24-hour
|
|
Battery
|
two “AA” batteries
|
|
Interface
|
USB2.0
|
|
Calibration voltage
|
1mV±5%
|
|
Noise level
|
≤30μV
|
|
CMRR
|
≥60dB
|
|
Low-frequency characteristics
|
time constant≥3.2s
|
|
Scan speed
|
25mm/s±5%
|
|
Polarizing voltage
|
±300mV, sensitivity: ≤±10%
|
|
Minimum measure signal:
|
50 µV p-p
|
