Quick Details
-
Voltage:
-
AC380
-
Dimension(L*W*H):
-
850*1100*1900mm
-
Weight (KG):
-
650
-
Power (kW):
-
3
-
Product name:
-

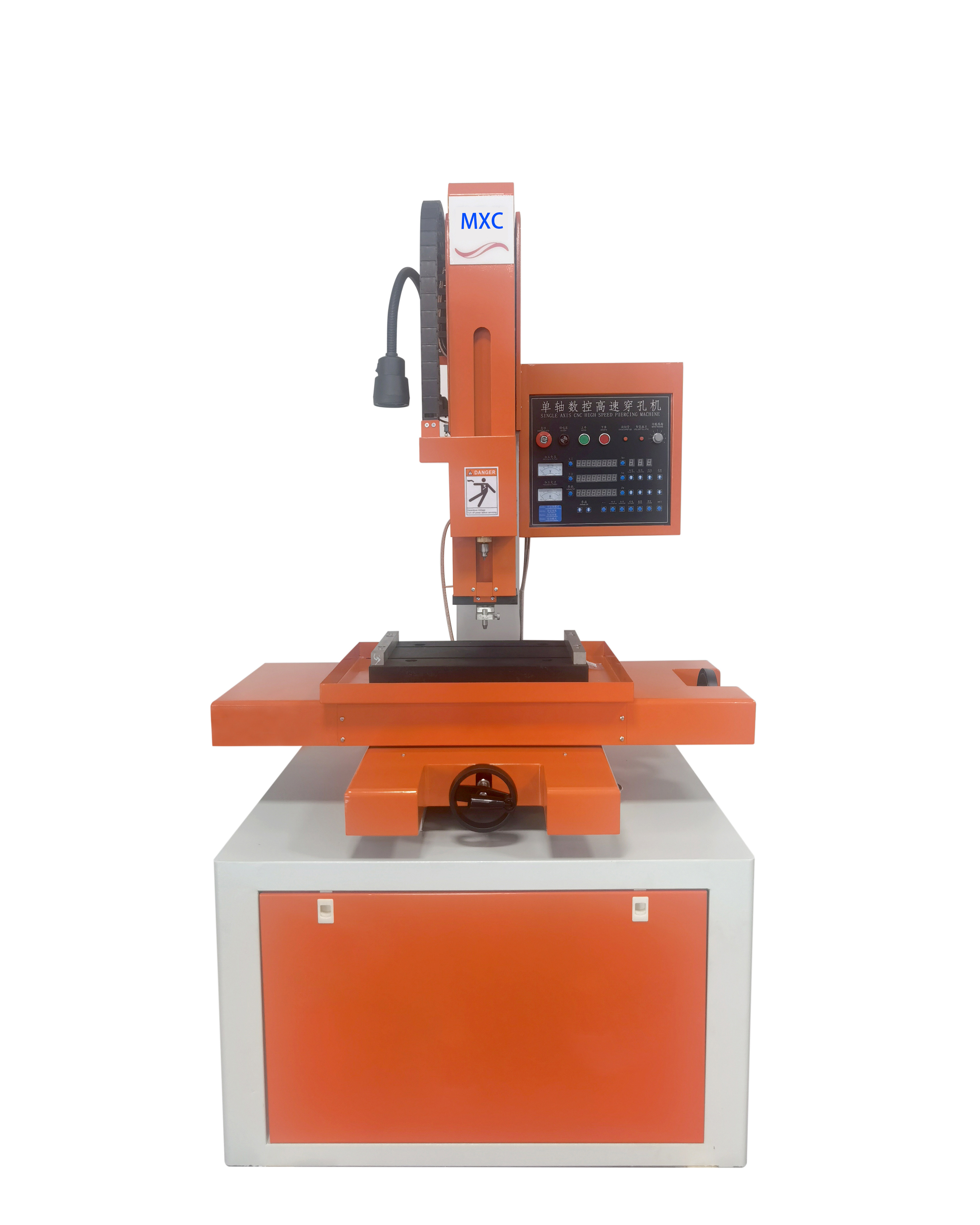

CNC hole edm drilling machine
-
Type:
-
DB703
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
-
Controlling Mode:
-
CNC Control
-
Maximum working fluid pressure:
-
6MPa
-
Maximum aspect ratio:
-
300/1
-
Clamping motor diameter:
-
0.3-3.0mm
-
Maximum working current:
-
30A
-
Application:
-
Mold processing
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2022
-
Brand Name:
-
MING XIN CHEN
-
Voltage:
-
AC380
-
Dimension(L*W*H):
-
850*1100*1900mm
-
Weight (KG):
-
650
-
Power (kW):
-
3
-
Product name:
-
CNC hole edm drilling machine
-
Type:
-
DB703
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
-
Controlling Mode:
-
CNC Control
-
Maximum working fluid pressure:
-
6MPa
-
Maximum aspect ratio:
-
300/1
-
Clamping motor diameter:
-
0.3-3.0mm
-
Maximum working current:
-
30A
-
Application:
-
Mold processing
Products Description
|
Machine model
|
DB703
|
|
working desk size
|
320*440mm
|
|
X-Y trip
|
300*400mm
|
|
Spindle servo stroke
|
350mm
|
|
Spindle head stroke
|
350mm
|
|
Spindle head speed
|
20-120rpm
|
|
Clamping electrode diameter
|
0.3-3mm
|
|
Maximum distance between the guide and the table
|
350mm
|
|
input power
|
3kw
|
|
Mainframe dimensions
|
850*1100*1900mm
|
Suitable for processing various conductive materials such as stainless steel, hardened steel, cemented carbide, copper,
aluminum,etc.
Low power consumption, the processing aperture is 0.15-3mm, and the maximum aspect ratio can reach more than 300mm
High power consumption, processing speed up to 30-60mm/min
Penetrate directly from the inclined surface and curved surface; directly use tap water as the working fluid, and can use the
circulating water tank for recycling
The main shaft is equipped with a precision servo motor, which can be raised and lowered quickly and has good perforation
stability.
According to user requirements, the machine can be configured as a multi-axis CNC or digital display machine
aluminum,etc.
Low power consumption, the processing aperture is 0.15-3mm, and the maximum aspect ratio can reach more than 300mm
High power consumption, processing speed up to 30-60mm/min
Penetrate directly from the inclined surface and curved surface; directly use tap water as the working fluid, and can use the
circulating water tank for recycling
The main shaft is equipped with a precision servo motor, which can be raised and lowered quickly and has good perforation
stability.
According to user requirements, the machine can be configured as a multi-axis CNC or digital display machine
About us
Our Certificate
FAQ
Q1:Could I visit your factory?
A:Of course,yes!Warmly welcome all customer from all over the world to visit our factory.
Q2:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q3:What about the price?
A:We promise the price we offer is lowest if same application,only to enlarge the market share.And given you cost price for
consumable parts.
consumable parts.
Q4:Why choose you?What is the difference between you and other Chinese supplier?
A:We Specializing in the search and development, testing, manufacturing and sales of CNC numerical control system for wire-cutting
electric discharge machine tools, wire-cutting wire cutting machine tools and electrical processing equipment.
electric discharge machine tools, wire-cutting wire cutting machine tools and electrical processing equipment.
Q5:I`m worried about after-sales service!
A:Warranty is one year.
Take a photo or video of the problem and send it to us. After we check and confirm the problem, we will provide you with a
satisfactory solution within 24 hours.
Take a photo or video of the problem and send it to us. After we check and confirm the problem, we will provide you with a
satisfactory solution within 24 hours.
