Quick Details
-
Warranty(Year):
-
2-Year
-
Input Voltage(V):
-
DC12V/24V
-
Lamp Luminous Flux(lm):
-
450
-
CRI (Ra>):
-
70
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEDWERKER
-
Emitting Color:
-
RGB
-
Product Name:
-
Digital LED Bar Light
-
LED Light Source:
-
5050 RGB SMD
-
Power:
-
15W/m
-
Voltage:
-
DC24V/12V
-
LED QTY:
-
60pcs
-
Pixel qty:
-
20 pixels
-
IC Type:
-
DMX512
-
Controller:
-
DMX512 Art-Net/DVI/DMX Controller
-
Usage:
-
Nightclub
Quick Details
-
Color Temperature(CCT):
-
RGB
-
Type:
-
LED Matrix Light
-
Application:
-
NIGHTCLUB
-
Warranty(Year):
-
2-Year
-
Input Voltage(V):
-
DC12V/24V
-
Lamp Luminous Flux(lm):
-
450
-
CRI (Ra>):
-
70
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEDWERKER
-
Emitting Color:
-
RGB
-
Product Name:
-
Digital LED Bar Light
-
LED Light Source:
-
5050 RGB SMD
-
Power:
-
15W/m
-
Voltage:
-
DC24V/12V
-
LED QTY:
-
60pcs
-
Pixel qty:
-
20 pixels
-
IC Type:
-
DMX512
-
Controller:
-
DMX512 Art-Net/DVI/DMX Controller
-
Usage:
-
Nightclub
Product Description
3d effect bar light dmx led bar light night club decoration
Technical Parameter:
|
Items |
Product Description: |
|
|
Product |
0.5m DMX Digital Bar |
1m DMX Digital Bar |
|
Model No. |
LW-DMXDB-D3010 |
LW-DMXDB-D6020 |
|
Diameter |
500*27*45mm |
1000*27*45mm |
|
LED QTY |
30pcs RGB SMD 5050 |
60pcs RGB SMD 5050 |
|
Pixel QTY |
10 |
20 |
|
View Angle |
120° |
120° |
|
Voltage |
DC12V |
DC12V |
|
Max Power |
10W |
15W |
|
Cover |
Clear or Frosted |
|
|
Color |
RGB full color |
|
|
Protocol |
DMX512 |
|
|
LED Source Life |
50'000 hours |
|
|
Protection |
IP65 |
|
Wiring Diagram:
Dimension :
500mm /1000mm length for your choice
Application:

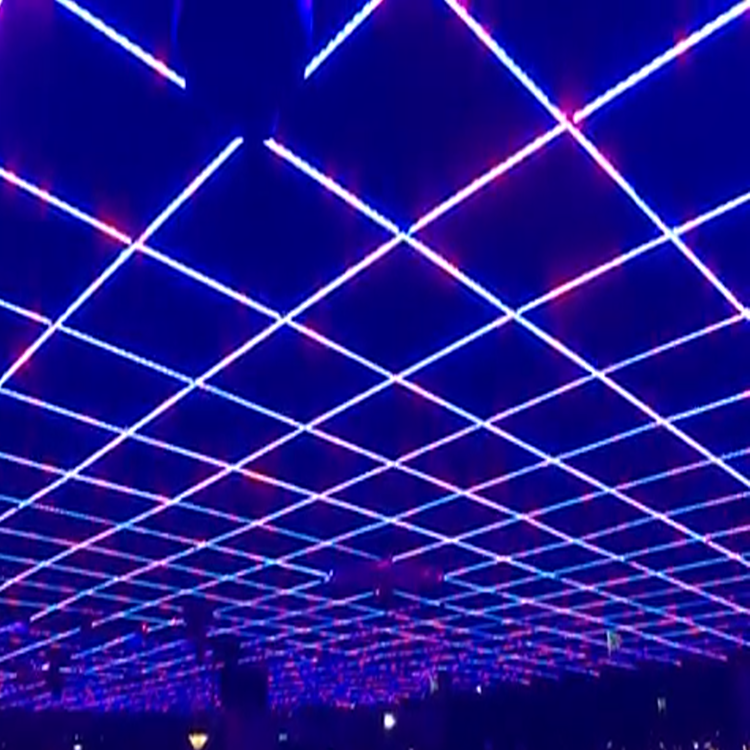

Ceiling decoration, DJ, nightclub, bar, KTV, television studio, theater and so on.
Main Features:
1. SMD 5050 RGB full color LEDs
2. IP65, coated with waterproofing, complete encapsulation, can be used indoor or outdoor.
3. Multiples of strips can be designed to form a video, graphic show and visual matrix
4. Pixel pitch can be customized, to meet different design requirement.
5. Constant current driver contributes to the protecting of LEDS’ lifespan.
6. DMX512 Protocol, sharing long-distance of transmission and high ability of anti-interference.
7. Madrix Software compatible, Madrix DMX led light control solution.
8. Light and audio controlled synchronously, music controllable.
9. Environment friendly, no harsh glare and buzzing noise, no flicker.
10. Also compatible with software likes Vixen, Light Show Pro, HLS, Light-O-Rama, Light Jams, Light Factory, ArKaos, Madmapper and others
Paciking Details:
0.5m: 6 0 pcs/ctn, Carton Size: 51*37*21cm
1m: 30 pcs/ctn, Carton Size: 110*37*21cm
1. We warrranty 2 years warrranty, if any defect product, we take full responsibility to repair, or replace the defect ones with new ones.
2. OEM or ODM service available.
3. Installation guidence, and technical support if needed.
4. Full lighting solution for projects.
5. Fast shipping service.
