Product Description

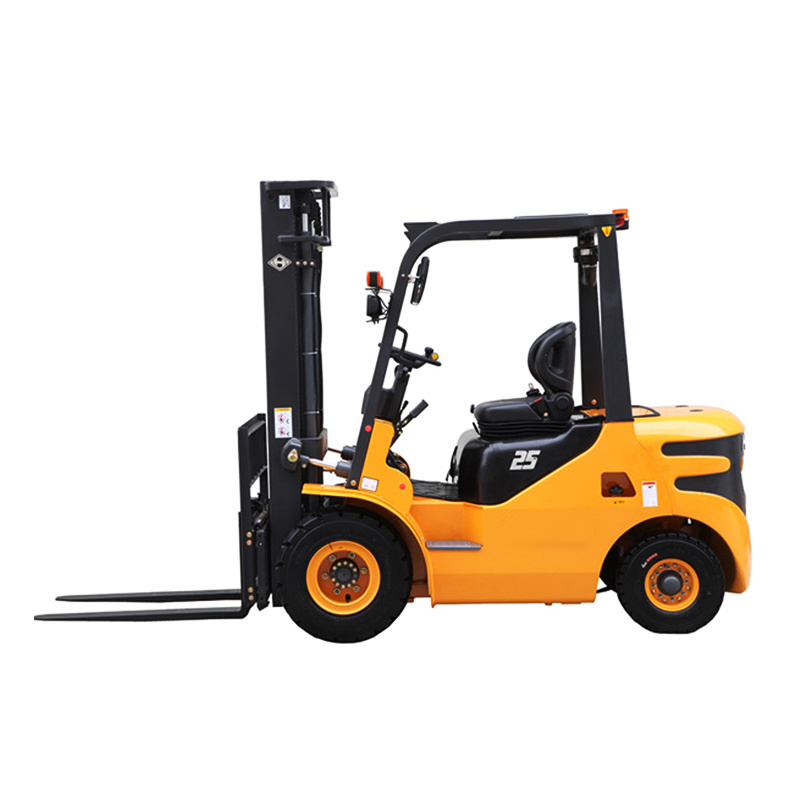

small hot selling 2.5ton LPG&Gasoline forklift HH25Z-GL
with famous brand and cheap price
MODEL: HH25Z-K5-GL
HS CODE: 8427209000
SPECIFICATION: 1, 2.5Ton rated loading capacity, Load center 500MM
2, with Japanese NISSAN K25 gasoline engine, USA technology IMPCO transfer system, with LPG support
3, Automatic transmission, 4.5meter full free lift height, triplex mast, with sideshifter
4, with strobe light, 2pcs rear mirrors, Seat with safety belt and handles
5, Standard pneumatic tires, 1.07meter length forks
6, Dimension length*width*height 2570*1160*2150MM , Self-weight 4200KGS
Specification
|
1
|
Model
|
|
|
UNIT
|
HH25Z-K5-GL
|
||
|
2
|
Power type
|
|
|
|
Gasoline/LPG
|
||
|
3
|
Rated capacity
|
|
|
kg
|
2500
|
||
|
4
|
Load center
|
|
|
mm
|
500
|
||
|
5
|
Lift height
|
|
|
mm
|
4500
|
||
|
6
|
Free lift height
|
|
|
mm
|
130
|
||
|
7
|
Fork size(L*W*T)
|
|
|
mm
|
1070×120×40
|
||
|
8
|
Fork outside spread(Min./Max.)
|
|
|
mm
|
300/1200
|
||
|
9
|
Mast tilt range(F/R)
|
|
|
deg
|
6/6
|
||
|
10
|
Front overhang
|
|
|
mm
|
482
|
||
|
11
|
Overall dimensions
|
Length to face of fork
|
Without of fork
|
mm
|
2630
|
||
|
12
|
|
|
With fork
|
mm
|
2630
|
||
|
13
|
|
|
Wheel width
|
mm
|
1150
|
||
|
14
|
|
Mast lowered height
|
|
mm
|
2095
|
||
|
15
|
|
Mast extended height
|
|
mm
|
5550
|
||
|
16
|
|
Overhead guard height
|
|
mm
|
2120
|
||
|
17
|
Turning radius
|
|
|
mm
|
2380
|
||
|
18
|
Min. right angle aisle width
|
|
|
km/h
|
2000
|
||
|
19
|
Travel speed (unload/full load)
|
|
|
mm/s
|
20/18.5
|
||
|
20
|
Lift speed (unload/ full load)
|
|
|
mm/s
|
480
|
||
|
21
|
Max. gradeability
|
|
|
%
|
20
|
||
|
22
|
Tires
|
|
Front
|
|
7.00-12-12PR
|
||
|
23
|
|
|
Rear
|
|
6.00-9-10PR
|
||
|
24
|
Tread
|
|
Front
|
mm
|
970
|
||
|
25
|
|
|
Rear
|
mm
|
970
|
||
|
26
|
Wheelbase
|
|
|
mm
|
1650
|
||
|
27
|
Min. ground clearance （unload/ full load）
|
|
Mast
|
mm
|
152/132
|
||
|
28
|
|
|
Frame
|
mm
|
158/138
|
||
|
29
|
Battery
|
|
|
v/ah
|
12/90
|
||
|
30
|
Engine
|
|
Model
|
|
NISSAN K25
|
||
|
31
|
|
|
Rated output
|
kw/r.p.m
|
44/2500
|
||
|
32
|
|
|
Rated torque
|
n.m/r.p.m
|
186/1600
|
||
|
33
|
|
|
Displacement
|
cc
|
2472
|
||
|
34
|
|
|
No. of cylinder
|
|
4
|
||
|
35
|
|
|
Bore×stroke
|
mm
|
/
|
||
|
36
|
Transmission
|
|
Model
|
|
Hydraulic
|
||
|
37
|
|
|
Shift (FWD/RVS)
|
|
1/1
|
||
|
38
|
Operating pressure
|
|
|
mpa
|
17.5
|
||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
