1. GMB2550r CNC gantry miller is processing
runner blade
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
N3-3.43
-
Output Voltage (V):
-
220
-
Certificate:
-
ISO9001
-
Application:
-
For Power Generation
-
Name:
-
Small Steam Turbine Generator
-
Rated power:
-
3MW
-
Rated voltage:
-
220/380/400/440
-
Usage:
-
Thermal
-
Rotating speed:
-
5600
-
Structure:
-
multi-stage layer
-
Generator:
-
Three Phase
-
Supply Scope:
-
Complete Solution
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DTEC
-
Model Number:
-
N3-3.43
-
Output Voltage (V):
-
220
-
Certificate:
-
ISO9001
-
Application:
-
For Power Generation
-
Name:
-
Small Steam Turbine Generator
-
Rated power:
-
3MW
-
Rated voltage:
-
220/380/400/440
-
Usage:
-
Thermal
-
Rotating speed:
-
5600
-
Structure:
-
multi-stage layer
-
Generator:
-
Three Phase
-
Supply Scope:
-
Complete Solution
Product Description

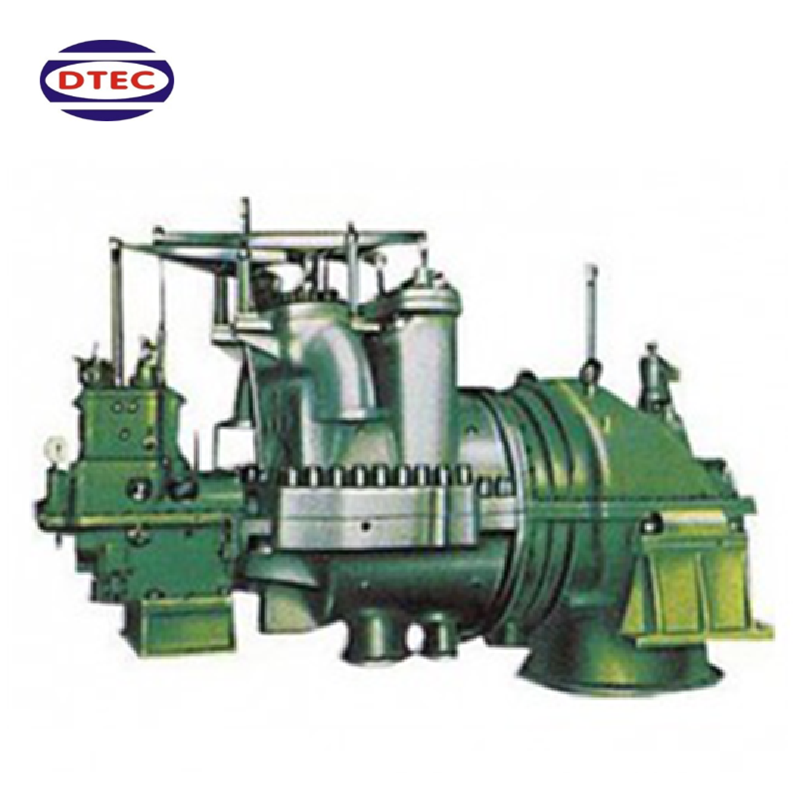

Small Condensing Steam Turbine 0.5-6MW
K60 steam turbine unit is a multi-stage small steam turbine, this small steam turbine has high
utilization rate of steam cycle, which can be pumped for production process or heating system. the exhaust of steam turbine enters the condenser and condenses into water recovery heating and returns to boiler recycling. the exhaust pressure of steam turbine is lower than atmospheric pressure. High safety and reliability, widely used in thermoelectricity, petroleum, chemical industry, printing and dyeing, textile, cement, sugar, paper and other industries BR> structural forms: fast-loading two-point impulse multi-stage small steam turbine
utilization rate of steam cycle, which can be pumped for production process or heating system. the exhaust of steam turbine enters the condenser and condenses into water recovery heating and returns to boiler recycling. the exhaust pressure of steam turbine is lower than atmospheric pressure. High safety and reliability, widely used in thermoelectricity, petroleum, chemical industry, printing and dyeing, textile, cement, sugar, paper and other industries BR> structural forms: fast-loading two-point impulse multi-stage small steam turbine
Parameters
|
Model
|
Capacity
(MW) |
Speed
(r/min) |
Inlet
|
|
|
Consumption
（kg/kw.h） |
Exhaust
Ptessure (Mpa) |
Weight
(t) |
Overall
dimensions (L*W*H)mm |
||
|
|
|
|
Pressure
(Mpa) |
Temp(°C)
|
Flow
（t/h） |
|
|
|
|
||
|
N0.66-1.6
|
0.66
|
5600
|
1.6
|
280
|
4.45
|
6.74
|
0.008
|
12
|
3655*2200*1950
|
||
|
N0.75-1.27
|
0.75
|
6500
|
1.27
|
340
|
4.4
|
5.87
|
0.0086
|
14
|
3630*2250*2120
|
||
|
N1.1-2.3
|
1.1
|
6500
|
2.3
|
305
|
7.1
|
6.45
|
0.008
|
10
|
2755*2050*1943
|
||
|
N1.1-3.92
|
1.1
|
6500
|
3.92
|
320
|
6.8
|
6.18
|
0.013
|
10
|
2755*2050*1943
|
||
|
N1.5-1.27
|
1.5
|
5600
|
1.27
|
300
|
9.49
|
6.33
|
0.063
|
12.1
|
3655*2200*1950
|
||
|
N1.5-1.27
|
1.5
|
5600
|
1.27
|
340
|
8.75
|
5.83
|
0.0103
|
25
|
4112*2652*2515
|
||
|
N1.5-2.35
|
1.5
|
6500
|
2.35
|
390
|
8.41
|
5.61
|
0.0103
|
17
|
3655*2240*2115
|
||
|
N1.5-2.35
|
1.5
|
6500
|
2.35
|
390
|
8.27
|
5.51
|
0.009
|
12.1
|
3655*2200*1950
|
||
|
N1.5-3.43
|
1.5
|
6500
|
3.43
|
435
|
7.32
|
4.88
|
0.008
|
12.1
|
3655*2200*1950
|
||
|
N1.6-2.35
|
1.6
|
6500
|
2.35
|
380
|
8.51
|
5.32
|
0.103
|
8.5
|
2750*2020*1945
|
||
|
N1.9-2.35
|
1.9
|
4800
|
2.35
|
305
|
11.1
|
5.84
|
0.008
|
25
|
4110*2655*2510
|
||
|
N3-1.25
|
3
|
5600
|
1.25
|
310
|
19
|
6.33
|
0.01
|
25
|
4110*2655*2510
|
||
|
N3-2.35
|
3
|
5600
|
2.35
|
390
|
16
|
5.33
|
0.0103
|
25
|
4110*2655*2510
|
||
|
N3-2.35
|
3
|
5600
|
2.35
|
390
|
16
|
5.33
|
0.0103
|
25
|
4245*2440*1960
|
||
|
N3-3.43
|
3
|
5600
|
3.43
|
435
|
13.3
|
4.43
|
0.0103
|
25
|
4440*2400*1965
|
||
|
N3-4.9
|
3
|
6500
|
4.9
|
470
|
13.7
|
4.57
|
0.008
|
25
|
4440*2400*1965
|
||
|
N4-2.35
|
4
|
3000
|
2.35
|
390
|
20
|
5
|
0.062
|
17
|
3750*2295*2825
|
||
Layout
: single or double layer
Speed Control System : Hydraulic actuator manufactured by Siemens Technology of German Electro-hydraulic Converter for 505 Digital Governor of USA
Super speed protection : Two sets of mechanical hammer and solenoid valve electronic intelligent control
Steam seal form : stainless steel sheet labyrinth seal
Main valve : Integrated automatic main valve (combined regulating valve)
Main shaft assembly : multi-speed stage impeller blade, rotor and impeller interference set, impeller blade mounted
Lubricating system : forced oil lubrication, with fuel tank, thin oil station and cooler
Thermal expansion compensation : front bearing support sliding heat compensation
Electrical configuration : full set of electronic control cabinet, protection cabinet, main control cabinet, supporting Siemens generator
Truck unit : Electric wheel
Speed Control System : Hydraulic actuator manufactured by Siemens Technology of German Electro-hydraulic Converter for 505 Digital Governor of USA
Super speed protection : Two sets of mechanical hammer and solenoid valve electronic intelligent control
Steam seal form : stainless steel sheet labyrinth seal
Main valve : Integrated automatic main valve (combined regulating valve)
Main shaft assembly : multi-speed stage impeller blade, rotor and impeller interference set, impeller blade mounted
Lubricating system : forced oil lubrication, with fuel tank, thin oil station and cooler
Thermal expansion compensation : front bearing support sliding heat compensation
Electrical configuration : full set of electronic control cabinet, protection cabinet, main control cabinet, supporting Siemens generator
Truck unit : Electric wheel
Our advantages:
1. With a steam turbine manufacture experience of more than 20 years.
2. We offer turnkey service, including project design, production,construction, installation, and adjustment.
3. Low steam consumption rate, high efficiency to help customer save cost.
4. Strong overload capacity, easy to operate, safety guaranteed
5. We offer customed products.
2. We offer turnkey service, including project design, production,construction, installation, and adjustment.
3. Low steam consumption rate, high efficiency to help customer save cost.
4. Strong overload capacity, easy to operate, safety guaranteed
5. We offer customed products.
Application
1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.
2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.
3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.
4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.
5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven
air blowers, compressors, and other highly energy-intensive equipment.
2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.
3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.
4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.
5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven
air blowers, compressors, and other highly energy-intensive equipment.
Specification
Manufacturing & Facility
Manufacturing & Facility
2.CNC coil 12-axis expander imported from France
Manufacturing & Facility
3. Dovetail miller
Manufacturing & Facility
4. 10m Vertical lathe
Manufacturing & Facility
5. A corner of workshop
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Actually, in addition to various steam turbines,we can also provide you with all kinds of steam turbine parts. Please feel free to contact us at any time when you are interested in our products.
spare parts include:
Rotor;
- Moving Blades of Rotor;
- HP/IP/LP Gland Sealings;
- HP/IP/LP Diaphragms;
- Seal Rings;
- Couplings between Steam Turbine and Generator;
- Spcial Studs and Nuts;
- Bolts and Nuts of Turbine Casings;
- Bolts and Nuts of Diaphragms;
- Thrust Bearings and Surport Bearings;
- Gaskets, Srews, Keys, Pins, Washers, Grooved gaskets;
- Turning Gear;
- Babbit Metal Lined Bearings;
- Stem, Disc, Pilot and Sleeve of Main Steam Stop Valves, Combined Steam Valves, Governing Valves;
- Actuators of Control System;
- Steam Strainer;
- Start up Oil Pump and Spare Parts;
- Jacking Oil Pump and Spare Parts;
- Main Oil Pump and Spare Parts;
- Emergency Oil Pump and Spare Parts;
- Condensate Pump and Spare Parts;
- Jet Water Pump and Spare Parts;
- Drainage Pump and Spare Parts;
- Spare Parts of Circulating Water Pump;
- Spare Parts of DEH, TSI, ETS;
Rotor;
- Moving Blades of Rotor;
- HP/IP/LP Gland Sealings;
- HP/IP/LP Diaphragms;
- Seal Rings;
- Couplings between Steam Turbine and Generator;
- Spcial Studs and Nuts;
- Bolts and Nuts of Turbine Casings;
- Bolts and Nuts of Diaphragms;
- Thrust Bearings and Surport Bearings;
- Gaskets, Srews, Keys, Pins, Washers, Grooved gaskets;
- Turning Gear;
- Babbit Metal Lined Bearings;
- Stem, Disc, Pilot and Sleeve of Main Steam Stop Valves, Combined Steam Valves, Governing Valves;
- Actuators of Control System;
- Steam Strainer;
- Start up Oil Pump and Spare Parts;
- Jacking Oil Pump and Spare Parts;
- Main Oil Pump and Spare Parts;
- Emergency Oil Pump and Spare Parts;
- Condensate Pump and Spare Parts;
- Jet Water Pump and Spare Parts;
- Drainage Pump and Spare Parts;
- Spare Parts of Circulating Water Pump;
- Spare Parts of DEH, TSI, ETS;
