Quick Details
-
Usage:
-
Humidity Sensor
-
Theory:
-
Ultrasonic Sensor
-
Output:
-
Switching Transducer
-
Power:
-
60Watts
-
Frequency:
-
40KHz
-
Capacitance:
-
3800±10%pF
-
Height:
-
52mm
-
Weight:
-
301g
-
Ceramic Diameter:
-
38mm
-
Material:
-
Aluminum alloy
Quick Details
-
Model Number:
-
193797
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AV
-
Usage:
-
Humidity Sensor
-
Theory:
-
Ultrasonic Sensor
-
Output:
-
Switching Transducer
-
Power:
-
60Watts
-
Frequency:
-
40KHz
-
Capacitance:
-
3800±10%pF
-
Height:
-
52mm
-
Weight:
-
301g
-
Ceramic Diameter:
-
38mm
-
Material:
-
Aluminum alloy
Products Description

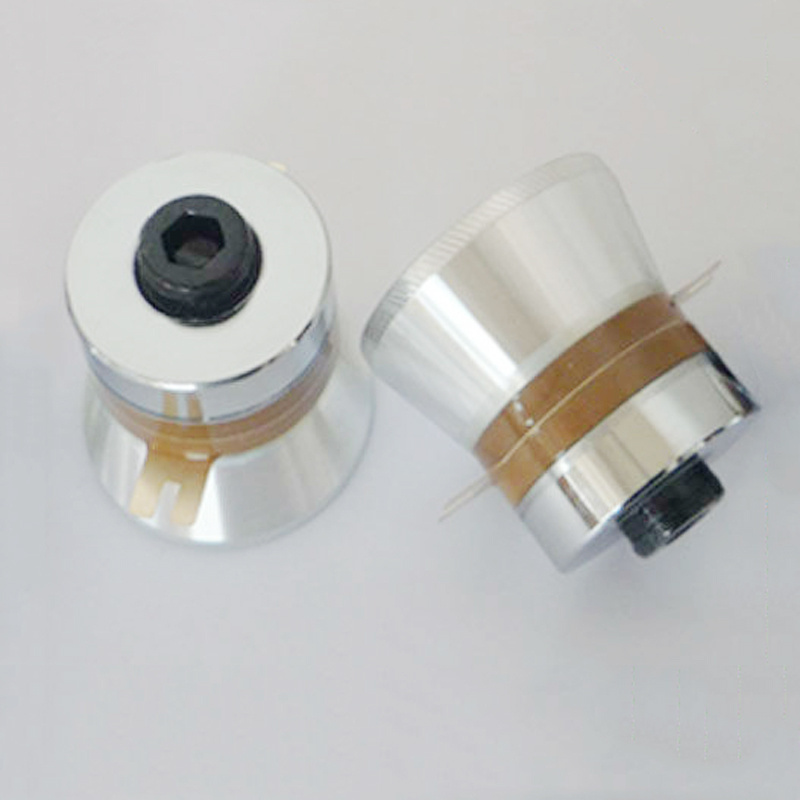

Product Display
|
Dimension
（Outer Diometer*Inner Dimension * Thickness)
|
Capacity
(pF)
|
Dielectric Loss- tg
δ (%)
|
Resonant Frequency -Fr(kHz)
|
Coupling
Factor -
Kp(%)
|
Quality
Factor-Qm
|
Application
|
|
Φ10*Φ5*2
|
330
|
0.3
|
145
|
≧0.4
|
800
|
For Small Power
Transducers:
1) ultrasonic spot welding
2) ultrasonic polishing
3) ultrasonic
physiotherapy
4) ultrasonic scaler
5) fine bubbles crushed
6) ultrasonic agitation
|
|
Φ25-Φ10*2
|
900
|
0.3
|
87.0
|
≧0.42
|
800
|
|
|
Φ28*Φ10*3
|
1400
|
0.3
|
59.0
|
≧0.43
|
800
|
|
|
Φ30*Φ10*5
|
1140
|
0.3
|
58.0
|
≧0.44
|
800
|
|
|
Φ32*Φ10*5
|
1255
|
0.3
|
52.7
|
≧0.44
|
800
|
|
|
Φ34*10.5*5
|
1350
|
0.3
|
50.2
|
≧0.45
|
800
|
|
|
Φ34*Φ14*5
|
1390
|
0.3
|
48.5
|
≧0.45
|
800
|
|
|
Φ35*Φ15*5
|
1425
|
0.3
|
46.4
|
≧0.45
|
800
|
|
|
Φ36*Φ15*5
|
1500
|
0.3
|
41.5
|
≧0.45
|
800
|
For Medium Power
Transducer:
1) Ultrasonic cleaning,
2) ultrasonic descaling
3) ultrasonic extraction
4) phacoemulsification
|
|
Φ38*Φ15*5
|
1735
|
0.3
|
43.8
|
≧0.45
|
800
|
|
|
Φ40*Φ12*5
|
2075
|
0.3
|
44.6
|
≧0.45
|
800
|
|
|
Φ40*Φ15*5
|
1960
|
0.3
|
42.2
|
≧0.45
|
800
|
|
|
Φ45*Φ15*5
|
2565
|
0.3
|
38.7
|
≧0.45
|
800
|
|
|
Φ50*Φ17*5
|
3150
|
0.3
|
34.6
|
≧0.45
|
800
|
|
|
Φ49*Φ23*6
|
2225
|
0.3
|
32.2
|
≧0.43
|
800
|
|
|
Φ50*Φ17*6.5
|
2425
|
0.3
|
34.6
|
≧0.45
|
800
|
For High Power
Transducer:
1) Ultrasonic Machining,
2) ultrasonic plastic
welding,
3) ultrasonic drilling ,
4) ultrasonic oil-water
emulsions ,
5) Spinneret powerful
cleaning
|
|
Φ49*Φ23*6
|
2340
|
0.3
|
31.8
|
≧0.43
|
800
|
|
|
Φ50*Φ23*6.5
|
2170
|
0.3
|
31.8
|
≧0.43
|
800
|
|
|
Φ60*Φ30*10
|
1925
|
0.3
|
25.8
|
≧0.43
|
800
|
|
|
Φ70*Φ30*10
|
2850
|
0.3
|
22.7
|
≧0.43
|
800
|
|
