Quick Details
-
Type:
-
Bucket Conveyor
-
After-sales Service:
-
Video or Technical Support
-
Loading Capacity:
-
20-60m3/H
-
Bucket Volume:
-
0.17-0.45m2
-
Rated Load:
-
>9ton
-
Weight:
-
2700-4800kg
-
Load and Unload Mode:
-
Front Discharge
-
Size:
-
Medium-Sized Loader
-
Specification:
-
2120*1130*1200
-
HS Code:
-
8429590000
Quick Details
-
Weight (KG):
-
2700
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CSME
-
Type:
-
Bucket Conveyor
-
After-sales Service:
-
Video or Technical Support
-
Loading Capacity:
-
20-60m3/H
-
Bucket Volume:
-
0.17-0.45m2
-
Rated Load:
-
>9ton
-
Weight:
-
2700-4800kg
-
Load and Unload Mode:
-
Front Discharge
-
Size:
-
Medium-Sized Loader
-
Specification:
-
2120*1130*1200
-
HS Code:
-
8429590000
Product Description

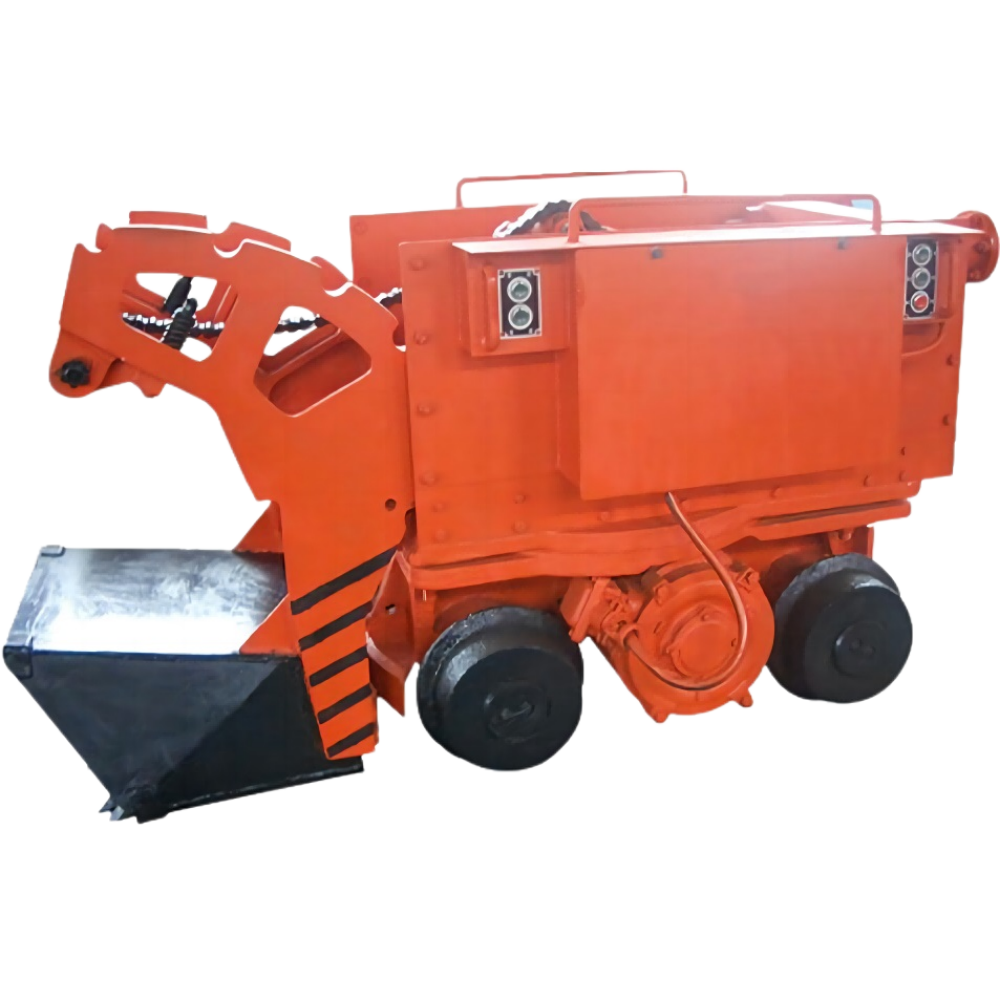

Z series Rock Loader
are designed as light,compact,flexible,easy operated and stable working equipment for underground mining,suitable for normal rocks,stones,grits,iron mine,gold mine,granite mine,and other metal or nonmeta mines.Maximum size of the loadable rocks can be 500mm diameter.And they gain highest efficiency by loading 100-400mm diameter rocks.
They are suitable for level tunnels(8 degree maximum)for various underground mines.They are designed as' electric or compressed air driven,single bucketed and automatic walking machines by loading at front and unloading at back.Of which,Z-20 series electric rock loaders won the First Product Title of Hunan Province and National Mechanical Industry in recent years. Z-30W Rock Loader is the national patent.
They are suitable for level tunnels(8 degree maximum)for various underground mines.They are designed as' electric or compressed air driven,single bucketed and automatic walking machines by loading at front and unloading at back.Of which,Z-20 series electric rock loaders won the First Product Title of Hunan Province and National Mechanical Industry in recent years. Z-30W Rock Loader is the national patent.
Specification
|
Model
|
Z-17W
|
ZLKY20
|
Z-20W
|
ZLKY26
|
Z-30W
|
ZLKY45
|
ZQ-26
|
|
Applicable roadway size W*H/m
|
1.7*2
|
2*2.2
|
2*2.2
|
2.2*2.5
|
2.2*2.5
|
2.2*2.5
|
2.2*2.5
|
|
Loading Capacity m³/h
|
20-30
|
35-45
|
30-40
|
50-60
|
50-60
|
80-100
|
50-60
|
|
Bucket volume m²
|
0.17
|
0.2
|
0.2
|
0.26
|
0.3
|
0.45
|
0.26
|
|
Loading width mm
|
1700
|
Arbitrarily
|
2000
|
Arbitrarily
|
2400
|
Arbitrarily
|
2700
|
|
Weight kg
|
3200
|
3700
|
3750
|
3900
|
4500
|
4800
|
2700
|
