FOB Reference Price: Get Latest Price
≥1 Sets
US $3980
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight:
945
Marketing Type:
Hot Product 2021
Product name:

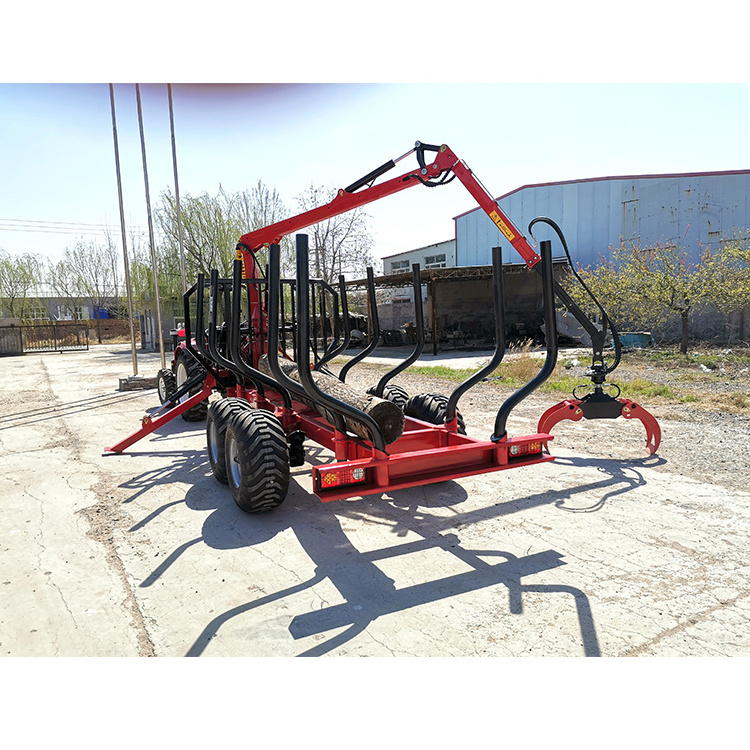

forest log trailer with hydraulic crane for tractor
Item:
TC420~TC780
Max arm length:
7800mm
Rotary angle:
380
Rotary oil cylinder quantity:
4
Noumber of balance valve:
1
working pressure:
20mpa
hydraulic oil flow:
30~70l/min
Grab size:
TG18~TG30
Max loading capacity:
550kg

Quick Details

Applicable Industries:
Foresty industry
Use:
wood/log/timber grab
Place of Origin:
China
Weight:
945
Marketing Type:
Hot Product 2021
Product name:
forest log trailer with hydraulic crane for tractor
Item:
TC420~TC780
Max arm length:
7800mm
Rotary angle:
380
Rotary oil cylinder quantity:
4
Noumber of balance valve:
1
working pressure:
20mpa
hydraulic oil flow:
30~70l/min
Grab size:
TG18~TG30
Max loading capacity:
550kg

3 point hitch log hydraulic crane tractor log trailer hydraulic crane is an attachment that allows you to grab tree trunks, branches, wood waste and transport them both lengthwise and crosswise. This makes it possible to pass through narrow places also with long logs and enables loading on trailer or on a pile in any direction. Timber grab is available either with a hydraulic rotator or as freely rotating version. The grab with hydraulic rotator is equipped with an electric solenoid valve for selection between grab opening/closing and rotator.

1. Matching Tractors, ATV or truck
2. Power options: PTO, Gas/Diesel engine available
3. Air Brake or wide tyre offered as options
4. Stable Hydraulic System
5. Flexibility and convenient operation
6. Quick mounting and dismounting

Model

TC420 TC470 TC550L TC650L TC700Z TC760 TC780Z
Max Outreach(m) 4.2 4.7 5.5 6.5 7 7.6 7.8
Slewing torque(KNm) 8 8 10 10 22 24 24
Rotation angle(°) 370° 370° 370° 370° 370° 370° 370°
Number of rotating cylinders 4 4 4 4 4 4 4
Lifting capacity at 4 m(KG) 500 580 680 930 1650 1020 1650
Lifting capacity at full reach(KG) 480 510 520 550 860 450 580
Telescopic arm(M) none none 1 1.3 2.1 M (two sections ) 2.5 M (two section s) 2.5 M (two sections )
Hydraulic oil flow(L/min) 15-35 20-40 25-50 30-50 40-60 35-60 40-80
Working pressure(mpa) 18 18 18 18 18 18 18
Rotary motor GR-10(1T) GR-10(1T) GR-30(3T) GR-30(3T) GR-30(3T) GR-30(3T)/GR35F(3.5T) GR-30(3T)/GR35F(3.5T)
Grab TG16 TG16 TG18 TG18 TG20 TG20 TG26
Total weight( without support, gripping tool and valve),KG 480 505 636 700 1020 1020 1150
Eight type outriggers weight( KG) 175 175 175 175 195 225 225
A type outriggers weight( KG) 160 165 170 170 195 215 215
M type outriggers weight(KG) 270 270 270 270 290 310 310

More information for Timber hydraulic crane with hydraulic boom and grapple

Comfort hinge between first boom and outer boom for optimum movement pattern. The crane has top-mounted cylinders for first boom and outer boom, hidden hoses, hose wear guard on exposed places as well as impact protection on the fully rotating rotator, which minimises exterior damage to hoses and couplings.

log trailer grip LG08 with hydraulics in protected location. The crane can be additionally equipped with DIBO winch, SW1000-remote-controlled, bucket inserts are available for the grapple.

The safety headboard is more than sufficiently sized to protect the operator. All hydraulics and hoses are built in and guarded to minimise the risk of external damage.
Plenty of free space below the trailer to allow it to easily pass over any obstacles and a terrain-friendly bogie equipped with 11.5/80-15.3 wheels. The trailer has a low centre of gravity and hydraulic stabilisers for stable loading, unloading and
operation. Articulated steering with one cylinder.
The crane is equipped with a bent lifting arm providing maximum lifting capacity in flat ground positions. Top-mounted lift
cylinders in protected position. The interior hoses in the lifting arm and articulated boom are protected from external damage during operation.
The trailer is equipped as standard with articulated tow bar, parking jack, 2-lever valve block, hydraulic stabilisers, fully
rotating rotator.
The forestry trailer requires one return and one double-acting hydraulic outlet on the tractor. The trailer is supplied with four hydraulic ½ inch, quick coupling male hoses. The trailer is not equipped with brakes.

Timber hydraulic crane with hydraulic boom and grapple.

Ideal for lifting,handling and transporting long logs and firewood with speed and precision. Specifically designed for anygrab need related to timber loading, they have great lifting and loading capacity thanks to their special geometry.

Details for Timber hydraulic crane with hydraulic boom and grapple

1. Hydralic driving

2. More flexible

3. Available with hydraulic rotator

4. Grapple opening 48.1 inches

5. Versatile grab for transporting and loading of tree trunks, branches and debris

6. Timber Grab with stronger boom and rotator and larger grapple

Drawing draft for your view

1.Lightweight, strong, highly maneuverable and designed to be very stable even when fully loaded
2.Easy to operate by joystick.
3.Can be attached to ATV, truck, car or tractor.
4. High reliability ,Simple hydraulic and mechanical systems, easy to use and maintain.
5.High quality laser cut parts.f Timber hydraulic crane with hydraulic boom and grapple

Packaging & Shipping

-spare parts package by plywood box or carton box

- machine for film package

FAQ

Q: What's your payment term?
A: Usually,we request 30% by T/T in advance,balance to be paid before shipment,or 100% by irrevocable confirmed L/C payable at sight.We also accept payment to be transferred through Alibaba Trade Assurance.

Q: Can I have my own customized product?
A: Yes,Your customized requirements for color,logo,design,package,carton mark,your language manual etc.are very welcome.

Q: What is the delivery time?
A:It will take about 45 days to finish an order.But the exact time is according to actual situation.

Q:Can I visit your company?
A:Yes.welcome any time
