Quick Details
-
Weight (T):
-
0.4 T
-
Motor Power (kw):
-
5.5 kw
-
Marketing Type:
-
New Product
-
Product name:
-
Gantry hydraulic press
-
Power Source:
-
Hydraulic
-
Keyword:
-
Mechanical Metal Punching Machine
-
Function:
-
Metal Processing
-
Application:
-
Auto Parts
-
Type:
-
Four Columns
-
Local Service Location:
-
United Kingdom
-
Usage:
-
Metal Press
-
Name:
-
Hydraulic Punch Press Machine
-
Color:
-
Costomized
Quick Details
-
Machine Type:
-
H Frame Hydraulic Press
-
Return Force (kN):
-
500 kN
-
Place of Origin:
-
China
-
Weight (T):
-
0.4 T
-
Motor Power (kw):
-
5.5 kw
-
Marketing Type:
-
New Product
-
Product name:
-
Gantry hydraulic press
-
Power Source:
-
Hydraulic
-
Keyword:
-
Mechanical Metal Punching Machine
-
Function:
-
Metal Processing
-
Application:
-
Auto Parts
-
Type:
-
Four Columns
-
Local Service Location:
-
United Kingdom
-
Usage:
-
Metal Press
-
Name:
-
Hydraulic Punch Press Machine
-
Color:
-
Costomized

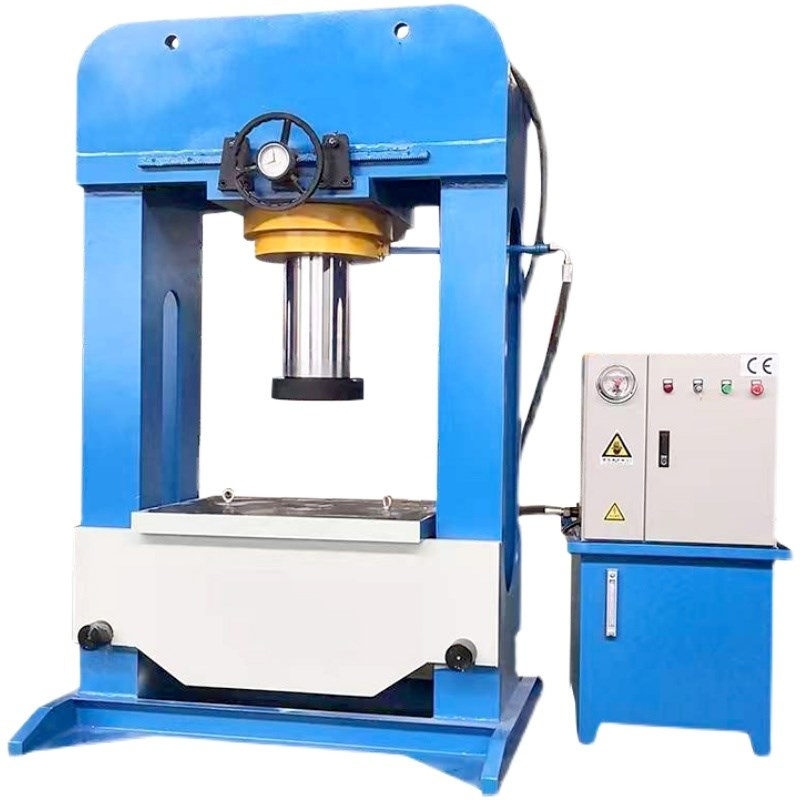

H type gantry hydraulic press
Product Description
The machine adopts the full steel structure of the gantry frame, and the mechanical deformation is small after the vibration aging treatment. The frame design is designed by the finite element, which has high rigidity and high precision. The working table of the gantry hydraulic press can move up and down, which greatly expands the opening and closing height of the machine and is more convenient to use. It is composed of main cylinder, hydraulic power system and electrical system. Worktables are welded from high-quality steel plates for reliability and durability
Specification
|
technical parameter
|
20TA
|
30T
|
40TB
|
60TB
|
80TB
|
|
Stroke (mm)
|
200
|
200
|
200
|
200
|
240
|
|
Gantry span (mm)
|
420
|
520
|
520
|
520
|
520
|
|
Table size (mm)
|
360*400
|
400*460
|
400*460
|
400*460
|
500*450
|
|
Motor power (kw)
|
2.2
|
3
|
5.5
|
5.5
|
5.5
|
|
Oil pump displacement (ml / R)
|
6
|
5
|
10
|
10
|
25
|
|
Descending speed (mm / s)
|
12
|
6.5
|
14
|
12
|
23
|
|
Return speed (mm / s)
|
19
|
9.5
|
19
|
16
|
34
|
|
Net weight (kg)
|
240
|
370
|
370
|
380
|
860
|
Details display
The gantry hydraulic press adopts an all-steel structure, and the mechanical deformation is small after vibration aging treatment. The frame design has high rigidity and high precision through finite element analysis. The working table of the gantry hydraulic press can move up and down, which greatly expands the opening and closing height of the machine and is more convenient to use.
production products
It is widely used in the pressing work of disassembly, forming, straightening, stretching and sheet metal forming in the machinery industry, and it can be used for one-time cold riveting forming of the split angle teeth. It is an essential pressure equipment in the modern automobile repair industry.
Packing & Delivery
All machines are packed in wood to ensure safety during transportation
