Quick Details
-
Brand Name:
-
Landa
-
Dimension(L*W*H):
-
D60*H8(mm)
-
Weight (KG):
-
0.2 kg
-
Product Name:
-
24v dc disc electromagnet
-
power:
-
4w
-
force:
-
150N(Min)
-
size:
-
D60*H8(mm)
-
Model:
-
H6008
-
Material:
-
Steel + Magnetic Coil
-
Feature:
-
Electromagnetic Magnet
-
Keyword:
-
Small Size Sucking Electromagnet
-
Voltage:
-
Dc 12v/24v
-
Shape:
-
Small Round
Quick Details
-
Warranty:
-
1 Year
-
Core Components:
-
iron & enamelled wire
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Landa
-
Dimension(L*W*H):
-
D60*H8(mm)
-
Weight (KG):
-
0.2 kg
-
Product Name:
-
24v dc disc electromagnet
-
power:
-
4w
-
force:
-
150N(Min)
-
size:
-
D60*H8(mm)
-
Model:
-
H6008
-
Material:
-
Steel + Magnetic Coil
-
Feature:
-
Electromagnetic Magnet
-
Keyword:
-
Small Size Sucking Electromagnet
-
Voltage:
-
Dc 12v/24v
-
Shape:
-
Small Round
Miniature Flat Magnet Lifter Small Electric Magnet 12 Volt 24v Dc Disc Electromagnet
| Specifications | |||
| Brand | Landa | Product Name | circular electromagnet |
| Model | H6008 | Rated Voltage | DC 12v/24v |
| Power | 4w | Force | 150N |
| Waterproof Class | IP65 | Duty Cycle | 100% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Holding type | Weight(N.W.) | 0.2kg |
| Install Style | Screw | Thread Size & Deepth(mm) | M6,8 |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | D60*H8(mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |

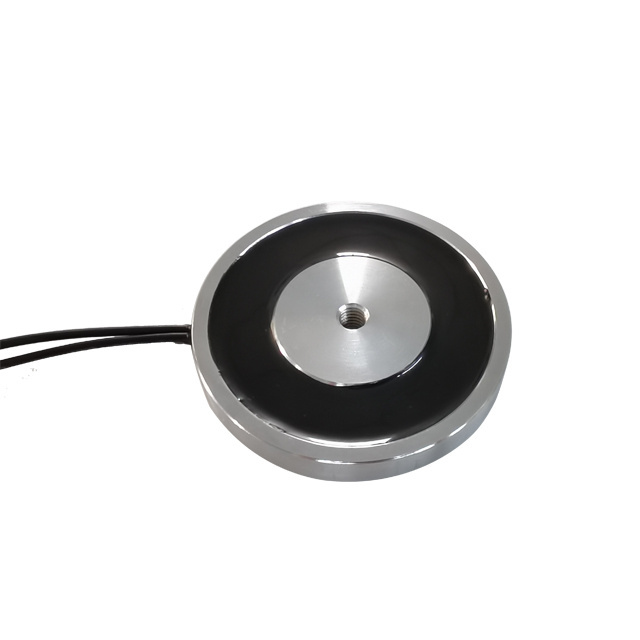

Round electromagnet
1.Holding type, round shape, mini size, ip65 waterproof, DC electromagnet, 12v 24v standard voltage, accepted custom
2.The mini round electromagnet need to be energised to develop suction force and deenergised release, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and supply power on release mini dc electromagnet.
