Quick Details
-
Brand Name:
-
HST
-
Model Number:
-
JBW-300C
-
Product name:
-
Thermal metal impact testing machine 300J for lab
-
Certificate:
-
CE certificate
-
impact energy:
-
150J,300J
-
Impact speed:
-
5.2m/s
-
Round angle of the jaw:
-
R1-1.5mm
-
Round angle of impact edge:
-
R2-2.5mm
-
Angle accuracy:
-
0.1°
-
Application:
-
measuring the metal material resistance performance under dynamic load
-
Standard specimen dimension:
-
10mm*10mm*55mm
-
Specimen bearer span:
-
40+0.2mm
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HST
-
Model Number:
-
JBW-300C
-
Product name:
-
Thermal metal impact testing machine 300J for lab
-
Certificate:
-
CE certificate
-
impact energy:
-
150J,300J
-
Impact speed:
-
5.2m/s
-
Round angle of the jaw:
-
R1-1.5mm
-
Round angle of impact edge:
-
R2-2.5mm
-
Angle accuracy:
-
0.1°
-
Application:
-
measuring the metal material resistance performance under dynamic load
-
Standard specimen dimension:
-
10mm*10mm*55mm
-
Specimen bearer span:
-
40+0.2mm

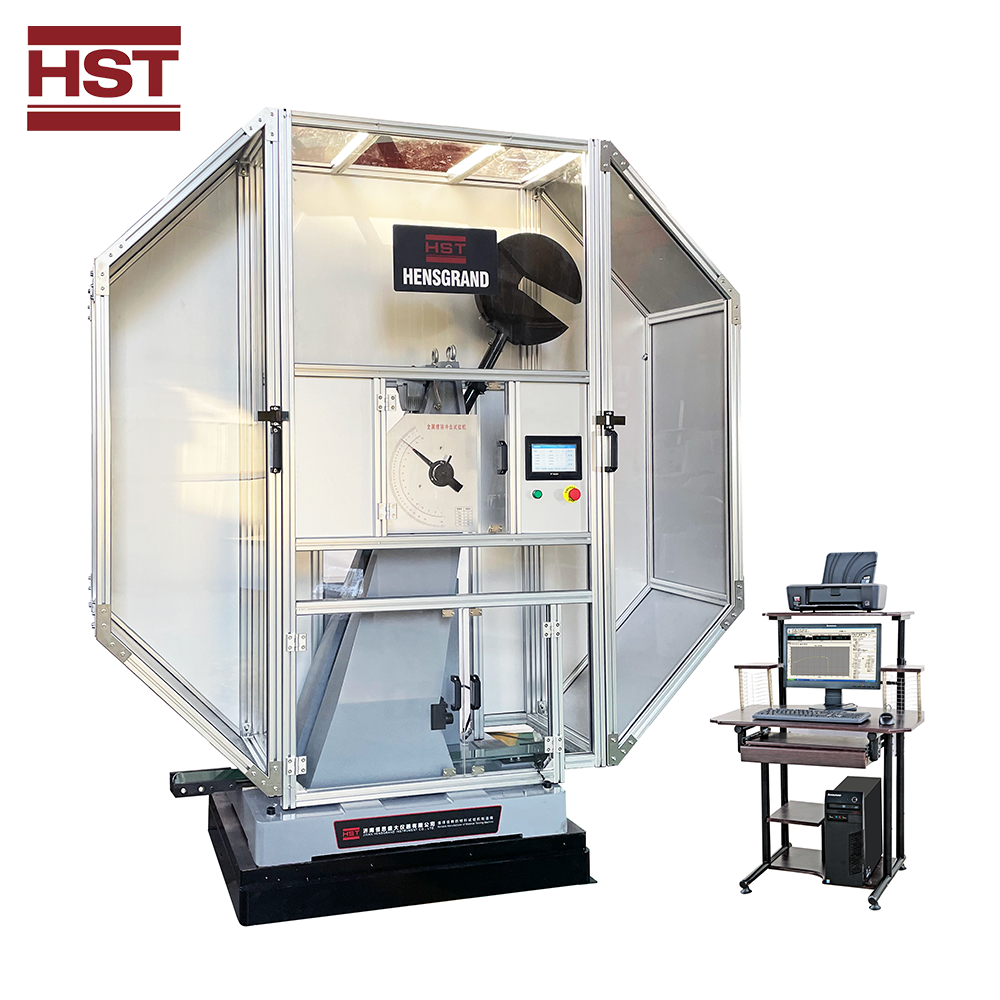

ASTM E23 JBW-300C 150J 300J 750J charpy impact strength testing machine mental impact tester
2. Application
JBW-C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring
the metal material resistance performance under dynamic load,in order to determine the material
properties under dynamic load.
It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas,
but also used for the science research.
3. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-200 ,ISO 138,EN10045.
4. Main Technical Specifications:
|
Model |
JBW-300C |
JBW-450C/500C |
JBW-600C |
JBW-750C |
|
Max. impact energy (J) |
300 |
450/500 |
600 |
750 |
|
Pendulum Torque |
160.7695 |
241.1543 |
321.5390 |
401.9238 |
|
The distance between the pendulum shaft and impact point |
750mm |
|||
|
Impact speed |
5. 2 4 m/s |
|||
|
Raised angle |
150° |
|||
|
Round angle of the jaw |
R1-1.5mm |
|||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
|||
|
Angle accuracy |
0.1° |
|||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
|||
|
Power supply |
3phs, 380V, 50Hz or specified by users |
|||
|
Net Weight (kg) |
900 |
|||
JBW series computer display Impact Testing Machine : ----Izod structure
-----Charpy Structure metal impact testing machine:
Impact Testing Machines in stock, can be shipped directly after receiving orders:
Izod Impact universal Testing Machine: ---- CLICK BELOW PICTURE FOR MORE DETAILS:
low temperature impact testing machine digital semi-automatic impact testing machine
Impact Specimen Gap Broaching Machine: --- For cutting notch of the impact sample in impact test.
CST-50 Charpy Projector --- use for checking the processing quality of U or V-shaped notch of the impact specimen.
DWC series Low Temperature Chamber --- use for cooling the impact sample before low temperate imapct test . ------click picture for more details
Compressor Cooling Chamber Liquid Nitrogen Cooling Chamber
