Strong metal body.
Beautiful appearance.
Professional and human design for FM480.
Unique design for heating button.
Before you buy FM480, pls check the heating button lies on top pannel.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIGO
-
Dimension(L*W*H):
-
85*55*54cm
-
Weight:
-
60 KG
-
Max. Laminating Width:
-
480mm
-
Max. Laminating Thcikness:
-
5mm
-
Laminating Speed:
-
0.2-1.6m/min
-
Laminating Temperature:
-
0-140 Celsius degree
-
File core dia.:
-
1", 3"
-
Roller qty:
-
4pcs
-
Laminate Type:
-
Single+Double Sides
-
LCD Control:
-
Yes
-
Reverse:
-
Yes
-
Marketing Type:
-
Hot Product
Quick Details
-
Packaging Type:
-
Film, Pouch, Bookcover, Picuter, Photo,etc
-
Packaging Material:
-
Paper, Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIGO
-
Dimension(L*W*H):
-
85*55*54cm
-
Weight:
-
60 KG
-
Max. Laminating Width:
-
480mm
-
Max. Laminating Thcikness:
-
5mm
-
Laminating Speed:
-
0.2-1.6m/min
-
Laminating Temperature:
-
0-140 Celsius degree
-
File core dia.:
-
1", 3"
-
Roller qty:
-
4pcs
-
Laminate Type:
-
Single+Double Sides
-
LCD Control:
-
Yes
-
Reverse:
-
Yes
-
Marketing Type:
-
Hot Product
Product Description

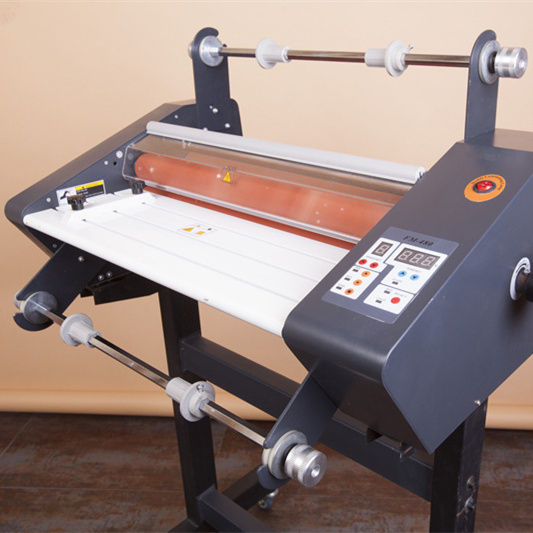

FM480 Single and Double Sides Hot/Cold Roll Laminator Laminating Machine
FM480 was named by SIGO company. Before you choose FM480, Pls check the power switch lies on top pannel.
Application:
After printing equipment. Available for photographic, Ad. Shop and copy shop to do lamination work, adding a protective layer on books cover, photographic, color pages, documents, charts, drawings, indoor advertising products, etc.
Applicable Laminating Medium:
Photopaper, PP, self adhesive PP, backlit film or transparent film
Detailed Images
FM480 Single and Double Sides Hot/Cold Roll Laminator Laminating Machine
|
Model
|
FM360
|
FM480
|
FM650
|
|
Max. laminate width
|
340mm
|
480mm
|
635mm
|
|
Max. laminate thickness
|
5mm
|
5mm
|
5mm
|
|
Laminating speed
|
0.2-1.6m/min
|
0.2-1.6m/min
|
0.2-1.6m/min
|
|
Temperature
|
140℃
|
60℃-160℃
|
60℃-160℃
|
|
Max. thickness of film
|
250mic
|
250mic
|
250mic
|
|
Display screen
|
LED
|
LED
|
LED
|
|
Power supply
|
110V/220V,1100W
|
110V/220V,1200W
|
110V/220V,1600W
|
|
Dimensions
|
62*52*31cm
|
72*44*31cm
|
91*52*31cm
|
|
Gross weight
|
35kg
|
60kg
|
90kg
|
|
Feeding roller dia.
|
45mm
|
45mm
|
55mm
|
|
Discharge roller dia.
|
30mm
|
30mm
|
45mm
|
|
Max. gap
|
5mm
|
5mm
|
5mm
|
|
File core dia.
|
1inch, 3inches
|
1inch, 3inches
|
1inch, 3inches
|
Structure
Operating pannel
Easy to use.
Speed can be set 9 level
Temp can be set from 60-160℃, so that it can use for different thickness of BOPP film.
Forward and reverse function and emergency button.
It can be use for laminate with hot and cold
Rubber roller
Import heating roller.
Easy to be clean.
HIgh qulity to make sure long service life.
Heating roller dia.:45mm
Working table and Limit block
Aluminum alloy table to looks beautiful.
Professional liminting block to adjust working size.
Opps: When you feeding paper, pls put the paper in the middle of table.
Install film rod
Metal rod to fit FM 480 roll laminator.
Equipped with 1inch and 3 inches bushings
Press paper wheel
Comportable design for press paper wheel.
You can adjust this wheel to meet different thickness of paper.
Convenient. Good job!!!
Packing & Delivery
Hot sale with high quality FM 480 Roll to roll laminator pacakge and shipment
FAQ
Q1. Can I have a sample order for FM480 hot and cold laminating machine?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 2-3weeks for order quantity more than
Q3. Do you have any MOQ limit for double sides laminator FM480?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for roll laminator laminating machine?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on hot sale roll laminator product?
A: No, we provide free sample without LOGO. If you need to do, you should pay for printing charge.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Q8: Are you a factory or trading company ?
A: Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around 1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
Hot Sale Products
Certifications
System Certification:
*GBT/TB28001-2011 Occupational health and Safety Management System;
*The generator passed CCC, CE,GS,SGS,EU2,SASO,SONCAP certifications, etc.
Our Company
Hangzhou Fuyang Sigao Office Supplies CO., LTD was founded in 2003. Our company is a synthetical enterprise occupying more than ten thousand square meters of factory building. We own import and export right.
The major products of our corporation are text binding machines, paper processing machinery, and various of file folder/binding materl (Binding plstic comb, double loops wire, spiral coil, paper cover, PVC cover, slide binder,etc). In addition, we also deal with office consumption, such as cover paper of binding,clamp bars, plastic and rubber rings, and iron rings. Our products have won high reputation among customer at home and abroad for the reliable performance and novel design.
Welcome to visit our company and cooperate with us.
Our Service
We are professional factory on binding machine, laminating machine, guillotine paper cutter,etc.
If you have any question for post printing equipment. Pls contact me. Whatsapp ID:+86 15658826416.
