Quick Details
-
Application:
-
Warehouse, workshop, farmhouse, factory
-
Design Style:
-
Industrial
-
Weight:
-
Theoretical weight
-
Chemical Composition:
-
Carbon, silicon, manganese, phosphorus, sulfur
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YT
-
Usage:
-
Concrete construction support,ditch cover,platform slab
-
Size:
-
Customized Size
-
Shape:
-
Customized Shape
-
Superiority:
-
Carbon Steel / Heavy Duty / Steel
-
Type:
-
Checkered plate welded steel grid step
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, total solution for projects, Others
-
Application:
-
Warehouse, workshop, farmhouse, factory
-
Design Style:
-
Industrial
-
Weight:
-
Theoretical weight
-
Chemical Composition:
-
Carbon, silicon, manganese, phosphorus, sulfur
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YT
-
Usage:
-
Concrete construction support,ditch cover,platform slab
-
Size:
-
Customized Size
-
Shape:
-
Customized Shape
-
Superiority:
-
Carbon Steel / Heavy Duty / Steel
-
Type:
-
Checkered plate welded steel grid step
Specification
|
Material Standard
|
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc
|
|
(Width × Thickness) |
25×3, 25×4, 25×4.5, 25×5, 30×3, 30×4, 30×4.5, 30×5, 32×5, 40×5, 50×5, 65×5, 75×6, 75×10…..100 ×10mm etc;
I bar: 25×5×3, 30×5×3, 32×5×3, 40×5×3 etc US standard: 1″×3/16″, 1 1/4″×3/16″, 1 1/2″×3/16″, 1″×1/4″,1 1/4″×1/4″, 1 1/2″×1/4″, 1″×1/8″, 1 1/4″×1/8″, 1 1/2″×1/8″ etc |
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2″″ & 4″″ etc
|
|
Surface Treatment
|
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers″ requirement.
|
|
Grating Style
|
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
|
Product Description

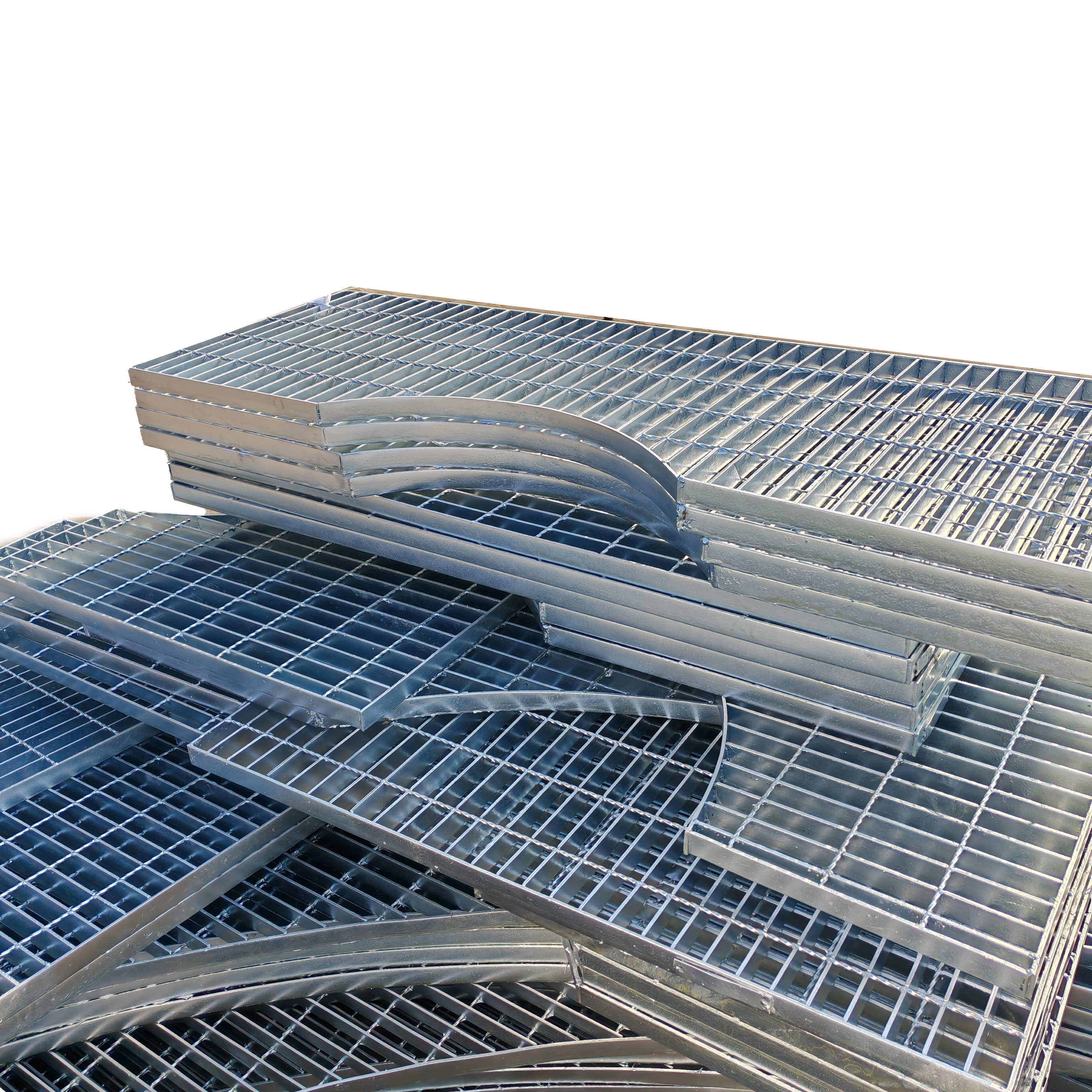

Galvanized steel grating
Process: Hot dip galvanizing and electrogalvanizing
Common spacing and characteristics of flat steel:
30mm - Strong impact resistance
40mm - Affordable and lightweight
60mm - large spacing, mostly used in mining
Installation method and characteristics:
Welding - permanently fixed without loosening
Installation clip - will not damage the hot-dip galvanized layer and is easy to disassemble
Hot dip galvanized surface treatment gives it good corrosion resistance and beautiful surface gloss; Good ventilation, lighting, heat dissipation, anti slip, and dustproof performance.
plug-in steel grating
It is the steel grating that is fixed by pressing the cross bar into the bearing flat steel or the bearing flat steel with pre-slot through pressure at each intersection of the bearing flat steel and the cross bar.
Type: pressed steel grating, heavy-load steel grating, integral steel grating, sunshade steel grating, etc.
The commonly used height is 100mm. Length less than 2000mm
The welding point of the plug-in steel grating is firm, the hole spacing is uniform, the design is beautiful, convenient and practical.
Toothed steel grating
Surface technology:
Hot dip galvanizing, cold dip galvanizing, electroplating, painting, immersion in rust proof oil, immersion in plastic, etc.
Flat steel height: 20mm-50mm
Flat steel thickness: 3mm-8mm
Flat steel spacing: 30mm-60mm
Horizontal bar spacing: 50mm-100mm
Features: Large mesh size, good drainage function, and high anti slip characteristics.
Trench steel grating
Materials: hot-dip galvanized carbon steel and stainless steel
Size: Customized
Features: Simple structure, light weight, good load-bearing capacity, impact resistance, non bending, large displacement, and corrosion resistance.
Shape: Normal, U-shaped, tubular, and openable.
Type: Side ditch cover plate and cross ditch cover plate
Composite steel grating
Craftsmanship: Composed of steel grating with certain crossing ability and sealing surface patterned plate
Steel grating: G323/40/100, etc
Patterned steel plate: 3-6mm, etc
Features:
1. High strength and light structure
2. Strong corrosion resistance and durability
3. Beautiful appearance and smooth surface
4. Good ventilation, lighting, heat dissipation, anti slip, and explosion-proof performance.
5. Easy to install and disassemble.
Steel grating pedal
Size: Customized
Type: T1, T2, T3, T4.
Installation: Welding and screw fixation
Features: Simple installation, good ventilation,lighting, heat dissipation, explosion-proof, anti slip performance, high strength, light structure, and durability.
Application
It is mainly used on the industrial platform , flooring , drainge cover , well cover , oil platform , stair tread etc.
Packing
2. Steel tray: Traditional export packaging.
3. Support customers to customize packaging.
