Quick Details
-
Brand Name:
-
original
-
Model Number:
-
N3K-C3524P-XL
-
Place of Origin:
-
Malaysia
-
Product Name:
-
N3K-C3524P-XL
-
Manufacturer:
-
Systems.inc
-
Condition:
-
100% Original Brand
-
Forward rate:
-
360mpps
Quick Details
-
Transmission Rate:
-
100/1000/10000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
480Gbps, 480Gbps
-
Brand Name:
-
original
-
Model Number:
-
N3K-C3524P-XL
-
Place of Origin:
-
Malaysia
-
Product Name:
-
N3K-C3524P-XL
-
Manufacturer:
-
Systems.inc
-
Condition:
-
100% Original Brand
-
Forward rate:
-
360mpps

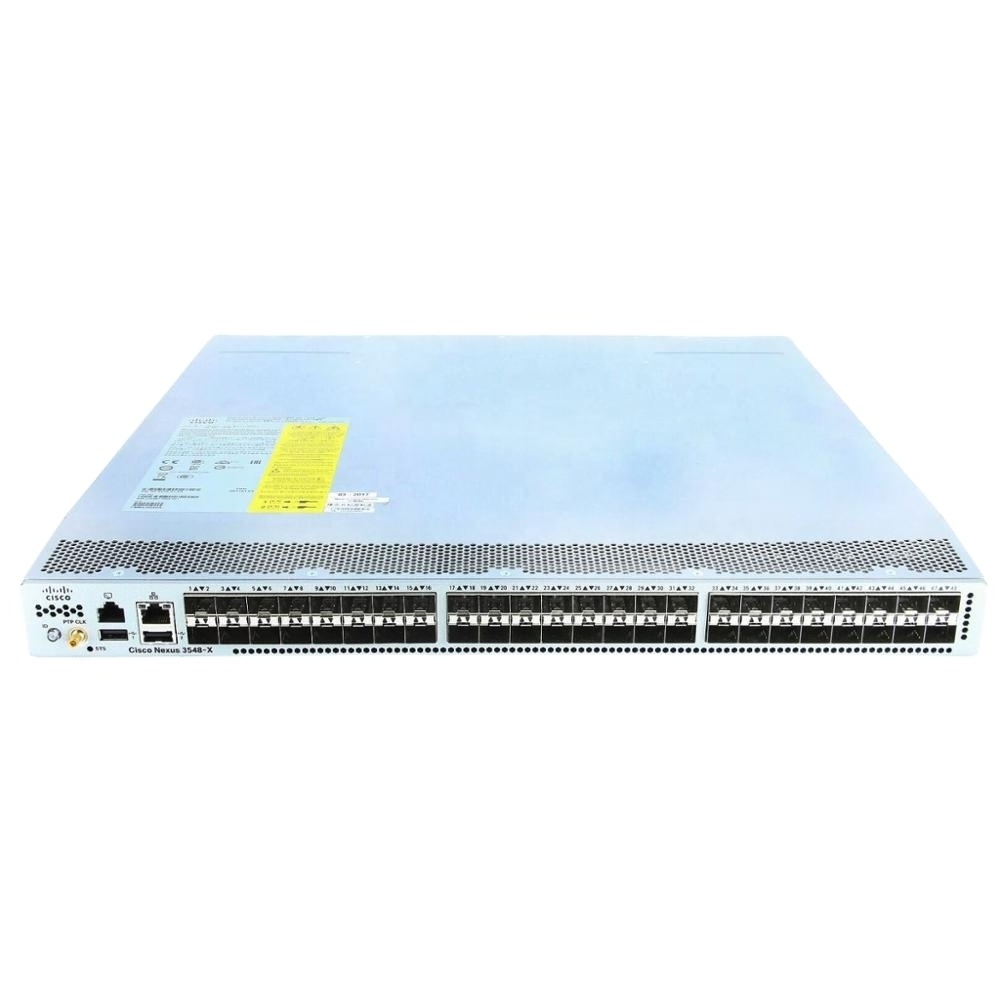

Nexus switch N3K-C3524P-10GX Nexus 3524x, 24 10G Ports
Nexus 3548-XL and 3524-XL Switches
The Nexus 3548-XL and 3524-XL Switches are, respectively, Nexus 3548-X and 3524-X Switches with a faster CPU, running at 2.5 GHz; system memory increased to 16 GB; and bootflash memory increased to 16 GB. These enhancements allow the switches to support the NX-OS Data Management Engine (DME) model.
Nexus 3548-XL and 3524-XL Switch
The Nexus 3548-XL and 3524-XL have the following hardware configuration:
* 48 fixed SFP+ ports (1 or 10 Gbps); the Nexus 3524-XL enables only 24 ports
* Dual redundant hot-swappable power supplies
* Four individual redundant hot-swappable fans
* One 1-PPS timing port, with the RF1.0 and 2.3 QuickConnect connector type
* One 10/100/1000 management port
* One RS-232 serial console port
* Two USB ports
* Locator LED
* Locator LED button
Support for both port-side exhaust and port-side intake airflow schemes is available.Port-side exhaust airflow is useful when the port side of the switch sits on a hot aisle and the power supply side sits on a cold aisle.Port-side intake airflow is useful when the power supply side of the switch sits on a hot aisle and the port side sits on a cold aisle.
Colored handles on each fan or power supply clearly indicate the airflow direction, as shown in Figures 1 and 2.
Figure 1. Nexus 3548-XL and 3524-XL with blue handles indicating port-side exhaust airflow
Figure 2. Nexus 3548-XL and 3524-XL with red handles indicating port-side intake airflow
|
Part number |
Description |
|
N3K-C3548P-XL |
Nexus 3548-XL Switch, 48 SFP+ |
|
N3K-C3524P-XL |
Nexus 3524-XL Switch, 24 SFP+ |
|
N3K-C3548P-10GX |
Nexus 3548-X Switch, 48 SFP+ |
|
N3K-C3524P-10GX |
Nexus 3524-X Switch, 24 SFP+ |
|
Specification |
Nexus 3524-X |
|
Physical |
24 fixed SFP+ ports (1 or 10 Gbps); expandable to 48 ports Dual redundant hot-swappable power supplies Four individual redundant hot-swappable fans One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type Two 10/100/1000-Mbps management ports One RS-232 serial console port One USB port Locator LED Locator LED button |
|
Performance |
480-Gbps switching capacity Forwarding rate of 360 mpps Line-rate traffic throughput (both Layer 2 and 3) on all ports Configurable MTUs of up to 9216 bytes (jumbo frames) |
|
Typical operating power |
102W |
|
Maximum power |
193 W |
|
|
Mode |
Normal mode |
|
Hardware tables and scalability
|
Number of spanning-tree instances |
Rapid Spanning Tree Protocol (RSTP): 512 Multiple Spanning Tree (MST) Protocol: 64 |
|
Number of EtherChannels |
24 |
|
|
Number of ports per EtherChannel |
24 |
|
|
Buffer size |
6 MB shared among 16 ports; 18 MB total |
|
|
System memory |
16 GB (3524-XL and 3548-XL models) |
|
|
Boot flash memory |
16 GB (3524-XL and 3548-XL models) |
|
|
Power
|
Number of power supplies |
2 (redundant) |
|
Power supply types |
AC ( forward and reversed airflow) DC (forward and reversed airflow) |
|
|
Input voltage |
100 to 240 VAC |
|
|
Frequency |
50 to 60 Hz |
|
|
Cooling |
Forward and reversed airflow schemes Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports) Reversed airflow : Port-side intake (air enters through ports and exits through fan tray and power supplies) Four individual, hot-swappable fans (3+1 redundant) |
|
|
Dimensions (height x width x depth) |
1.72 x 17.3 x 18.38 in.(4.36 x 43.9 x 46.7 cm) |
|
|
Weight |
17.4 lb (7.9 kg) |
|
