Quick Details
-
Model Number:
-

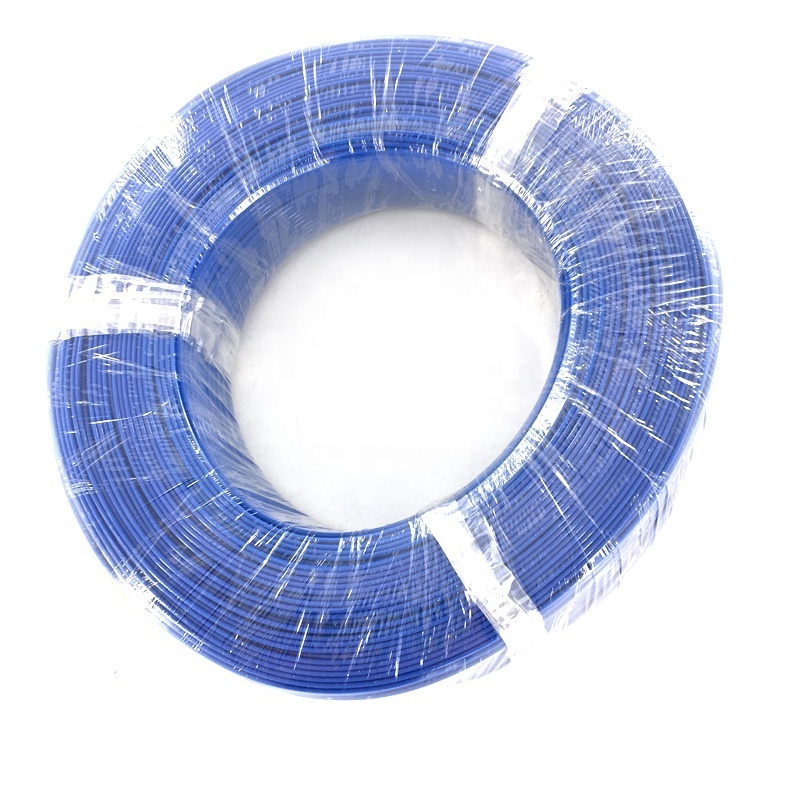

thermocouple, Compensating Lead Wire
-
Use:
-
Industrial
-
Dia:
-
0.5mm for standard
-
Insulated:
-
fiber glass/PTFE/stainless steel
-
Working temperature:
-
-60 °C ~ 200°C
-
Strand or Solid:
-
K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
-
MOQ:
-
1 M
-
Quality::
-
CE
-
factory sell::
-
yes
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Songtai
-
Model Number:
-
thermocouple, Compensating Lead Wire
-
Use:
-
Industrial
-
Dia:
-
0.5mm for standard
-
Insulated:
-
fiber glass/PTFE/stainless steel
-
Working temperature:
-
-60 °C ~ 200°C
-
Strand or Solid:
-
K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
-
MOQ:
-
1 M
-
Quality::
-
CE
-
factory sell::
-
yes
Thermocouple
Related Products
Flange Tubular Heater
Finned Tubular Heater
Tubular Heater
Products description
Thermocouple grade wire is used to manufacture thermocouple probes. Thermocouple grade wire is normally used for the junction and inside the stem sheath. This is because the thermocouple grade wire has a accuracy specification than extension grade wire.
Extension grade wire is a less expensive, lower grade wire. It is used to extend from the thermocouple probe to the control system or digital display. Extension grade wire is more economical due to the length requirements. Also, it is not in the process itself and does not play as critical a role nor does it experience the temperature extremes & temperature cycling.
In many industrial applications a sensor is located in a process pipe far away from the control room. This means a wire must be run a considerable distance back to the control room to get the temperature reading. Using more expensive thermocouple grade wire to accomplish this is unnecessary. Extension grade wire will do the job
.
Detailed products
|
Model
|
Graduation
|
Equipped with thermocouple
|
Compensation wire alloy wires
|
|
|
||
|
|
|
|
Cathode
|
Anode
|
Color
|
||
|
BC BC
|
B B
|
PtRh30-PtRh6
|
Cu
|
Cu
|
|
||
|
SC SC
|
S S
|
PtRh10- Pt
|
SPC (Cu)
|
SNC (Cu-Ni 0.6)
|
|
||
|
RC RC
|
R R
|
PtRh13- Pt
|
RPC (Cu)
|
RNC (Cu-Ni 0.6)
|
|
||
|
KCA KCA
|
K K
|
NiCr-NiSi
|
KPCA (Fe)
|
KNCA ((Cu-Ni 22)
|
|
||
|
KCB 1D
|
|
|
KPCB(Cu)
|
KNCB (Cu-Ni 40)
|
|
||
|
KX KX
|
|
|
KPX(NiCr 10)
|
KNX (Ni-Si 3)
|
|
||
|
NC NC
|
N N
|
NiCrSi- SiNi
|
NPC(Fe) NPC (railways)
|
NNC (CuNi 18)
|
|
||
|
NX NX
|
|
|
NPX (Ni-Cr-Si 14)
|
NNX (Ni-Si 4)
|
|
||
|
EX EX
|
E E
|
SiNi-CuNi
|
EPX (NiCr-10)
|
Methylxanthine (Cu-Ni 45)
|
|
||
|
JX JX
|
J J
|
Fe-CuNi
|
JPX(Fe)
|
JNX (Cu-Ni 45)
|
|
||
|
TX TX
|
T T
|
Cu-CuNi
|
TPX(Cu)
|
TIPS (Cu-Ni 45)
|
|
||
|
WC3/25
|
WRe3-WRe25
|
WRe3- WRe25
|
WPC3/25
|
WNC3/25
|
|
||
|
WC5/26
|
WRe5-WRe26
|
WRe5- WRe26
|
WPC5/26
|
WNC5/26
|
|
||
