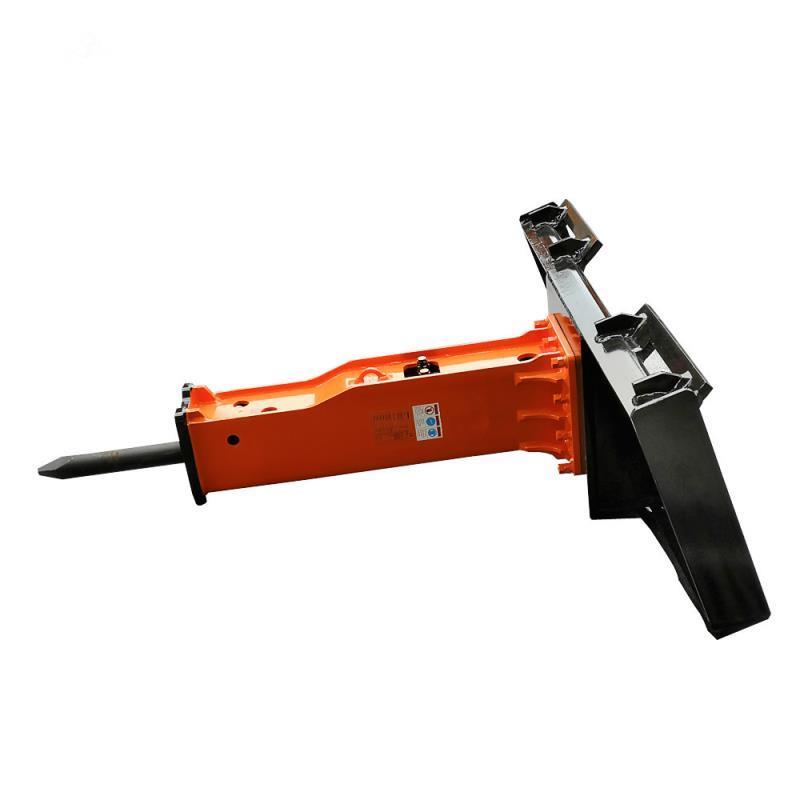

hammer hydraulic breaker skid steer attachments

hammer hydraulic breaker skid steer attachments

FOB Reference Price: Get Latest Price

≥1 Sets

US $600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Condition:: New Condition

Applicable Industries:: Farms,mining,demolition,construction,quarry

Weight:: 158 kg

Suitable Excavator(ton):: 2.5-4.5ton

Length:: 1178mm

Core Components:: inner body

Color:: Customer's Request

Type:: side/ top/ silence type

Pins:: Heat treatment

Working Flow:: 25-50 L/Min

Working Pressure:: 90-120 kg/cm3

Chisel Diameter:: 53mm

Diameter of hose:: 1/2 inch

Weight of Chisel:: 9kg

System:: hydraulic-gas system

OEM:: Acceptable

Quick Details

Place of Origin:: Shandong, China

Brand Name:: DEHN

Model Number:: DEHN530=SB30

Condition:: New Condition

Applicable Industries:: Farms,mining,demolition,construction,quarry

Weight:: 158 kg

Suitable Excavator(ton):: 2.5-4.5ton

Length:: 1178mm

Core Components:: inner body

Color:: Customer's Request

Type:: side/ top/ silence type

Pins:: Heat treatment

Working Flow:: 25-50 L/Min

Working Pressure:: 90-120 kg/cm3

Chisel Diameter:: 53mm

Diameter of hose:: 1/2 inch

Weight of Chisel:: 9kg

System:: hydraulic-gas system

OEM:: Acceptable

Products Description

We're the direct manufacturer in Yantai city，and we can guarantee the quality and delivery time.

Product Details

Side Type Breaker

1.Reducing total-length
2.More easier to handle
the breaking objects
3. low maintenance.

Top Type Breaker

1.Easy-operating to achieve excavation work
2.Without side weight, reducing the rate of chisel breakage
3.longer total-length and heavier total-weight.

Silence Box Type Breaker

1.Low noise level
2.Full-closed bracket protects
main body from damage.

model	unit	DEHN400	DEHN450	DEHN530	DEHN600
operation weight(side/top/box)	kg	70/75/102	95/95/126	138/138/152	180/180/224
length(side/top/box)	mm	910/1086/1190	1090/1235/1331	1178/1344/1417	1239/1460/1472
working flow rate	1iter/min	15-25	20-30	25-50	30-60
oil relief pressure	kg/cm²	160	160	160	160
working pressure	kg/cm²	90-120	90-120	90-120	100-130
impact rate	bpm	800-1400	700-1200	600-1000	500-1000
chisel diameter	mm	¢40	¢45	¢53	¢60
oil pipe nominaldiameter	inch	1/2	1/2	1/2	1/2
back head pressure	kg/cm²	16	16	16	16
Accumulator pressure	kg/cm²	/	/	/	/
Applicable Excavator weight	ton	0.8-2.5	1.2-3.0	2.5-4.5	3-5.5
Applicable Bucket	m³	0.07	0.03-0.1	0.06-0.2	0.06-0.2
Value Ass'y Position		internal	internal	internal	internal

Structure

Patented body design
Inner valve
Quiet operation
Fuel saving
Low maintenance cost
Smart bracket design
Energy recovery system
Various working tools

Our Advantage

Related Series

Trade Show

Yantai Shijin Machinery CO., Ltd was founded in 2010.Our company is specialized in manufacturing Hydraulic Breaker, QuickCoupler, Hydraulic Chisel, Earth Anger, Excavator Ripper and Spare Parts.We built a wide global marketing network .Our company has been attended the global exhibition of machinery named Bauma in China 2016.

Packing and Shipping

Standard free spare parts

Two chisels, two hoses, one set of N2 charging kit with N2 bottle and pressure gauge, one tool box with maintenance tools and
operation manual as well.

Standard free spare parts

Double-layers stretch Film Inside, solid packaging with pallets in case the water leakage.in container.

Non-fumigation wooden case

Standard export wooden case, double reinforcement inside. No need for fumigation, free from your concerns of Customs inspection
and quarantine.

Mode of transport：deliver by sea/Air/multimodel transport/logistic or Express company is available
Port: QINGDAO/YANTAI

Certifications

DEHN brand has been approved CE certificate and 4 product patents since 2010. By using the piston recoil energy, to increase performance without additional hydraulic flow input, DEHN rock breakers could achieve optimum performance at low cost, in addition to the SIMPLE body design, with only 2 moving parts, leading to lowest maintenance and repairing cost, which eventually makes your investment best valued!

FAQ

1.Is that the main body color customized?

Sure ,but we recommend you yellow, blue and orange.
2. How many days for the deliverytime ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance to guarantee buyer's property.
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from oversea for 10 years since 2010.So we have enough ability to deal with any cases. OEM certificate is available to provided .
5.What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Which countries have you been exported recently?
Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
7. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we can give you best match products
8. How about the packing of the goods?
Standard export package, wood cases, or as customers' demands.
