Tire circle ring tread Cutting Machine

Tire circle ring tread Cutting Machine

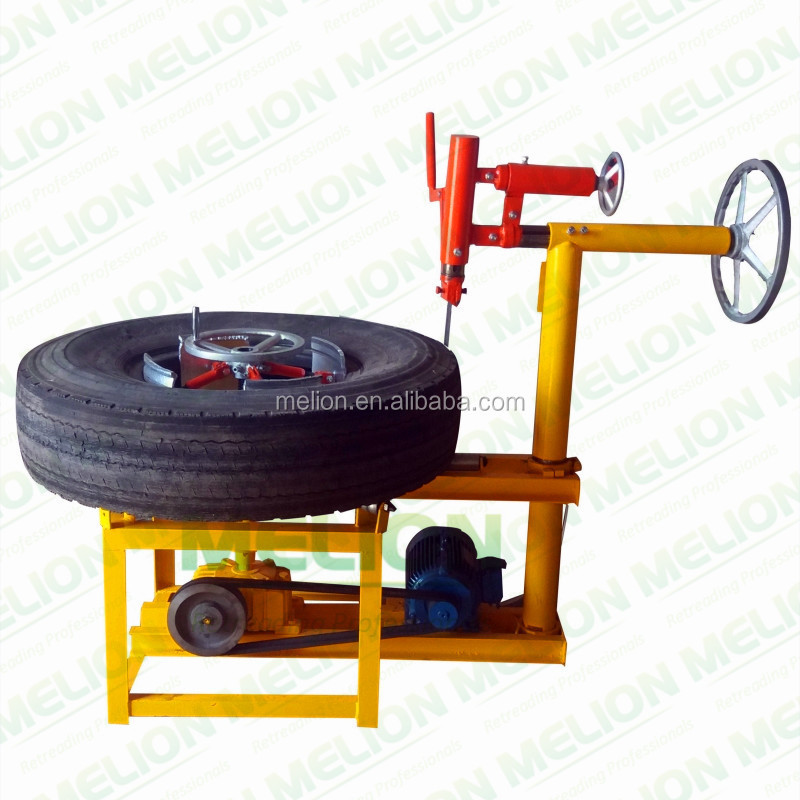

1.Description of tire circle ring tread cutting machine
tire circle ring tread cutting machine is used to cut off Ring Tread off casing to the next division.
The tire is placed disc platform, rotating middle handwheel jaw card holder will be firmly stuck tire inner ring, turn on the power, the working platform will rotate, cutting knife/blade will cut tire according to
need, slowly cut into the tire, step by step, until cut down the whole ring tread of the tire.

2.Main technical parameter about our waste tire circle cutting machine

3.working principle of our tire circle ring tread cutting machine
Place the waste tire on the round terrace, rotate the hand wheel so that the inner side of the tire
can be locked by the four claws frame. Then turn on the power, the terrace will begin to rotate
with the tire, and then make the cutting knife cut into the tire evolutionarily according to the
need until cut down the whole tread.

4.Characteristics of tire circle ring tread cutting machine
1)tire is easily placed, so you can have a high output and efficiency.
2)simplicity of operation.
3)long service life.
4)environmentally friendly, no pollution (no waste gas, no waste residue, no polluted water),meeting the environmental requirement of the government.
5)simple structure, light weight, less occupied area.
6)knife is made from alloy, hard wear resistant, can be used after repeatedly grinding.
7)shear force, low energy consumption, safety.
8)Melion tire circle ring tread cutting machine is very popular in this retreading industry.

5.Structural principle of tire circle ring tread cutting machine
1)Knife is made from alloy and hard wear-resisting
2)Motor and reducer connected by coupling, compact structure, simple operation.
3)The device of our automobile tire ring cutter consists of frame, motor, reducer, transmission, supporting, frames, knife, tools, and other components.
