*They are finished in white, black, silver colors.
*Available colour temperatures are 3000K (warm white), 4000K (natural white) and 6000K (cool white).
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
Enrich
-
Model Number:
-
EN-7575D- LS40W12
-
Place of Origin:
-
Guangdong, China
-
Light Source:
-
SMD2835
-
Power brand:
-
Boke
-
Shade material:
-
PC/PMMA
-
Product Weight（kg）:
-
1.5
-
Product Dimension:
-
L1200*W75*H75mm
-
Packing Dimension:
-
Carton size:67*30*27CM 13.5KGS 9PCS/Carton
-
PCs/ Ctn:
-
1
-
Input Voltage(V):
-
AC220-240V/AC110-277V
-
Lamp Luminous Flux(lm):
-
2000
-
Color Temperature(CCT):
-
3000K/4000K/6000K
-
Beam Angle(°):
-
120
-
Free sample:
-
1
-
Color:
-
Warm White,Cool White,Pure White
-
Dimmension:
-
L1200*W75*H75mm
-
Power:
-
40W
-
Shell Color:
-
White,Black,Silver
-
Adjustable height:
-
2m
-
Lumen:
-
100-120lm/w
-
Voltage:
-
AC220-240V/AC110-277V
-
Model:
-
Office Lighting
-
Working Time (hours):
-
50000
-
CRI (Ra>):
-
80,90
Quick Details
-
Design Style:
-
Modern
-
Application:
-
Office Building
-
Body Material:
-
Aluminum
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
Enrich
-
Model Number:
-
EN-7575D- LS40W12
-
Place of Origin:
-
Guangdong, China
-
Light Source:
-
SMD2835
-
Power brand:
-
Boke
-
Shade material:
-
PC/PMMA
-
Product Weight（kg）:
-
1.5
-
Product Dimension:
-
L1200*W75*H75mm
-
Packing Dimension:
-
Carton size:67*30*27CM 13.5KGS 9PCS/Carton
-
PCs/ Ctn:
-
1
-
Input Voltage(V):
-
AC220-240V/AC110-277V
-
Lamp Luminous Flux(lm):
-
2000
-
Color Temperature(CCT):
-
3000K/4000K/6000K
-
Beam Angle(°):
-
120
-
Free sample:
-
1
-
Color:
-
Warm White,Cool White,Pure White
-
Dimmension:
-
L1200*W75*H75mm
-
Power:
-
40W
-
Shell Color:
-
White,Black,Silver
-
Adjustable height:
-
2m
-
Lumen:
-
100-120lm/w
-
Voltage:
-
AC220-240V/AC110-277V
-
Model:
-
Office Lighting
-
Working Time (hours):
-
50000
-
CRI (Ra>):
-
80,90
Products Description
Attractive features of this product:
*Linkable and Seamless connection,
*Easy to create rectangle LED light,
*Different shell colors available: Black, White, Silver,
*Different lengths available: 0.6m, 1.2m, 1.8m, 2.4m, accept customized lengths.
*Top metal cover is removeable for wiring operation.
*Linkable and Seamless connection,
*Easy to create rectangle LED light,
*Different shell colors available: Black, White, Silver,
*Different lengths available: 0.6m, 1.2m, 1.8m, 2.4m, accept customized lengths.
*Top metal cover is removeable for wiring operation.
Product Paramenters
|
Model
|
Size
|
Power
|
Voltage
|
CCT
|
Material
|
Shell Color
|
|
EN-7575D- LS20W06
|
L600*W75*H75mm
|
20W
|
AC220-240V
AC100-277V
|
3000K
4000K
6000K
RGB
RGBW
RGB+CCT
|
Aluminum Profile+Opal PC/PMMA Microprism/PS Cover
|
Black
White
Silver
|
|
EN-7575D- LS40W12
|
L1200*W75*H75mm
|
40W
|
|
|
|
|
|
EN-7575D- LS50W15
|
L1500*W75*H75mm
|
50W
|
|
|
|
|
|
EN-7575D- LS60W18
|
L1800*W75*H75mm
|
60W
|
|
|
|
|
|
EN-7575D- LS80W24
|
L2400*W75*H75mm
|
80W
|
|
|
|
|
There are three cover for options:
PS cover,PMMA Microprism cover and Opal PC cover.PS cover is with most high lumen and high transparency,PMMA mircroprism cover is anti-glare and most good for eye protecting,opal PC cover is standard and most popular.
Seamless connection and fast wire connection:
~ Connect with seamless, form with 4pcs metal pillars to connect aluminum body tightly.
~ Plug-in fast wiring connectors on both ends, only the first lamp to get electricity.
~ Connect with seamless, form with 4pcs metal pillars to connect aluminum body tightly.
~ Plug-in fast wiring connectors on both ends, only the first lamp to get electricity.
Easy to make continuous straight length:
Install four splicing pins, adjust the positions, squeeze both sides of the profiles in the center until there is no gap, and finally tighten with a screwdriver.
Easy to make 90 degree connection for square/rectangular shape:
Installation Ways:
(Suspended, Surface Mounted, Recessed)
A:
Suspended with
the hanging ropes,all ropes are
parallel.
B:
Suspended with c
entral suspension plate,the plate is ceiling base in the middle position.
C:
Surface monted into the wall or ceiling.
D:
Recessed into the high ceiling.
Production Photos
High Quality Aluminum Linear Profile.
*The profile section of the lights is Width 75mm x 75mm high.
High quality
LED PCB board as light source.
*These Linear suspended lights
are use PCB Board,it has very good heat dissipation,long lifespan
above 50000 hours.
*Fast connected with high quality terminal block.
*All with
strong aluminum
construction(thickness 1.5mm) and PC opal diffusers are suspended on steel wires of length 2meter.
Easy to make connection with fast connector,driver built-in.
* Can be connected with limitless pieces, no gap no dark space
* Enery saving up to 70%~80%
* Elegent design, suitable for anywhere
* Soft and uniform lighting, safe to eyes
* Easy installation, and low maintenance
* 50,000 hours lifespan
* 5 years warranty
* Enery saving up to 70%~80%
* Elegent design, suitable for anywhere
* Soft and uniform lighting, safe to eyes
* Easy installation, and low maintenance
* 50,000 hours lifespan
* 5 years warranty
Production Application

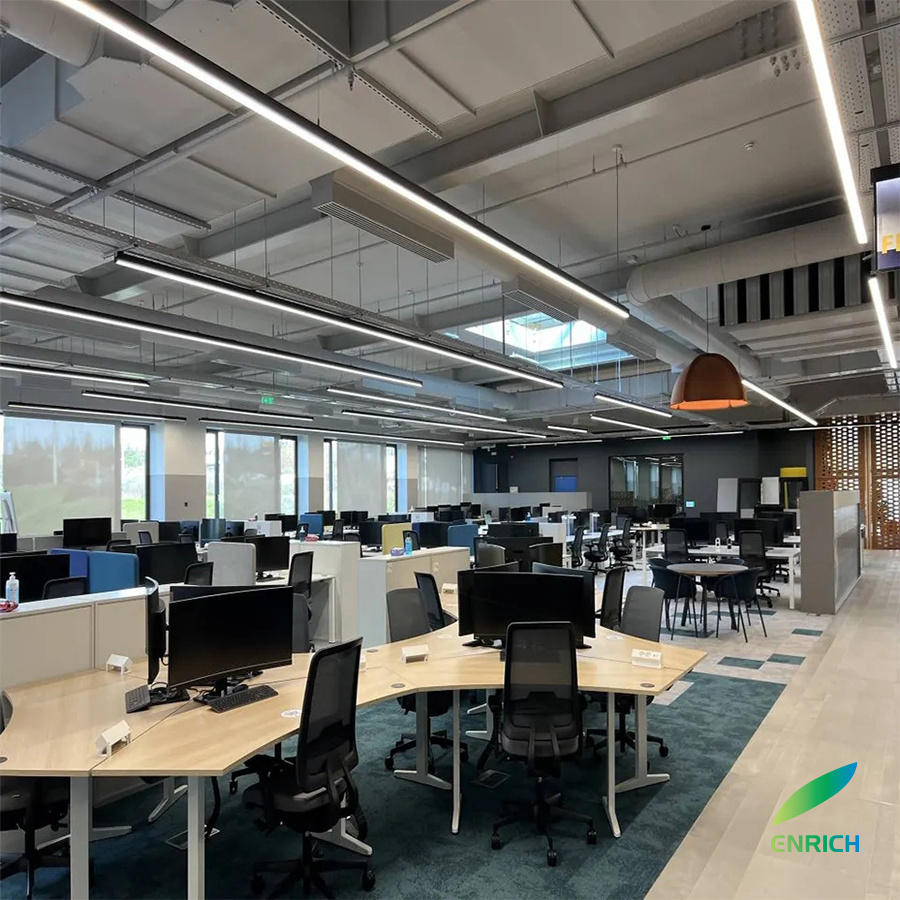

Widely use for indoor lighting projects: Office/Shopping Mall/Warehouse/Hall/Bank/Hospital/School/Metro Station/Business Complex Lightingetc. Suitable for different applications.
More Shapes for your option:
S shape,Oval Shape,rectangular shape,OEM design are avairable.
