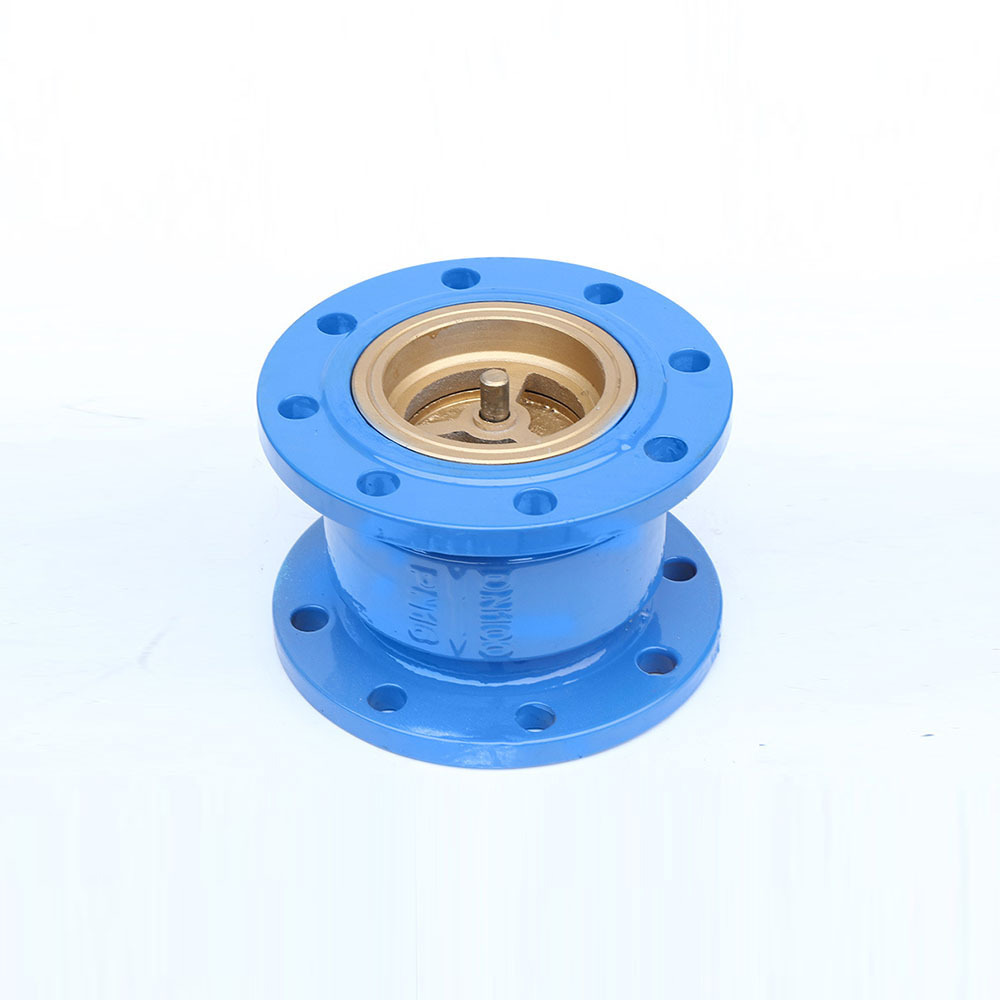

Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve
Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve
Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve
Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve
Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve
Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve
Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve
Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve

Ductile Iron Flange end Vertical DN50 DN80 DN100 Non return Silent check valve

FOB Reference Price: Get Latest Price
≥2 Pieces
US $7.99
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
HC41X
Brand Name:
HENGFA
Material:
Cast Iron
Connection:
Flange Ends
Size:
DN50-DN300
Color:
Blue
MOQ:
1 Piece
Packing:
Cartons+plastic Bags
Working medium:
Air Water Gas
Brand:
HENGFA
Connection End:
ANSI Flanged
Valve type:
Prevetion Water Back Flow

Quick Details

Port Size:
DN50-DN300
Warranty:
1years
Place of Origin:
Zhejiang, China
Model Number:
HC41X
Brand Name:
HENGFA
Material:
Cast Iron
Connection:
Flange Ends
Size:
DN50-DN300
Color:
Blue
MOQ:
1 Piece
Packing:
Cartons+plastic Bags
Working medium:
Air Water Gas
Brand:
HENGFA
Connection End:
ANSI Flanged
Valve type:
Prevetion Water Back Flow
Products Description




Product parameter：
1. Product size：DN400-DN250
2. Working pressure: 1.0/1.6Mpa
3. Working temperature: NBR: 0℃～+80℃ EPDM: -10℃～+120℃
4. Flange according to EN1092-2, PN10/16
5.Testing: DIN3230, API598
6. Medium: Fresh Water, Sea water, all kinds of oil, etc.

DN(mm)
50
65
80
100
125
150
200
250
300
L (mm)
100
120
140
170
200
230
301
370
410
ФE (mm)
50
65
80
101
127
145
194
245
300
ФC(mm)
165
185
200
220
250
285
340
405
460
Φd(mm)
PN10
PN16
125
145
160
180
210
240
295
350
400
125
145
160
180
210
240
295
355
410
If you want to know more details about our products, please click here to contact us!
