Quick Details
-
Warranty:
-
3 years pump diesel great
-
Brand Name:
-
An Pump
-
Model Number:
-
QS large diesel powered water pumps
-
Place of Origin:
-
Diesel water pump china
-
Horsepower:
-
200hp diesel water pump
-
Power Source:
-
diesel water pump for fire electric starter
-
Structure:
-
split case diesel power water pump
-
Cable Length:
-
500 diesel meter with battery pump
-
Outlet Size:
-
8inch farm irrigation diesel water pump
-
Power:
-
300kw diesel pump
-
motor:
-
high capacity diesel engine driven water pump
-
Usage:
-
Diesel irrigation water pump sets
-
Agriculture Machine:
-
Diesel irrigation water pump agriculture
-
Fuel:
-
Water pump diesel engine driven
-
Medium:
-
Diesel water transfer pumps
-
Supply Code:
-
Diesel pumpsets
-
Engine type:
-
Diesel pump engine
-
Mfgr.:
-
Diesel water pump manufacturers
-
Type:
-
Diesel driven centrifugal pump
-
Starter:
-
Electric start diesel water pump
-
Feature:
-
Larg diesel water pump
Quick Details
-
Application:
-
Other, Commercial Buildings, Drinking water treatment, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Raw Water Intake, wastewater treatment, Water Distribution, Water Treatment Solutions, diesel engine high pressure pump 234
-
Pressure:
-
Diesel pump high pressure
-
Voltage:
-
24v diesel pump motor controller
-
Warranty:
-
3 years pump diesel great
-
Brand Name:
-
An Pump
-
Model Number:
-
QS large diesel powered water pumps
-
Place of Origin:
-
Diesel water pump china
-
Horsepower:
-
200hp diesel water pump
-
Power Source:
-
diesel water pump for fire electric starter
-
Structure:
-
split case diesel power water pump
-
Cable Length:
-
500 diesel meter with battery pump
-
Outlet Size:
-
8inch farm irrigation diesel water pump
-
Power:
-
300kw diesel pump
-
motor:
-
high capacity diesel engine driven water pump
-
Usage:
-
Diesel irrigation water pump sets
-
Agriculture Machine:
-
Diesel irrigation water pump agriculture
-
Fuel:
-
Water pump diesel engine driven
-
Medium:
-
Diesel water transfer pumps
-
Supply Code:
-
Diesel pumpsets
-
Engine type:
-
Diesel pump engine
-
Mfgr.:
-
Diesel water pump manufacturers
-
Type:
-
Diesel driven centrifugal pump
-
Starter:
-
Electric start diesel water pump
-
Feature:
-
Larg diesel water pump

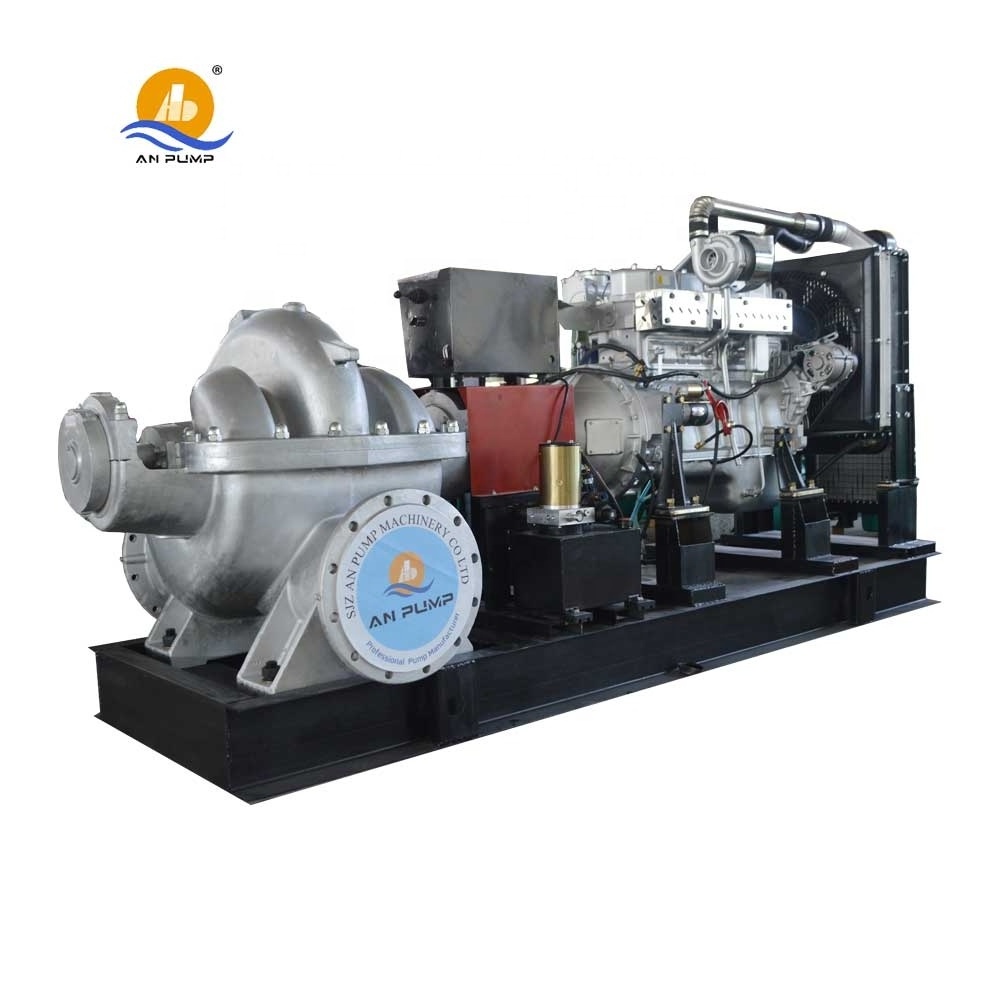

32 inch diesel flood water pump 150hp with diesel engine
32 inch diesel flood water pump 150hp with diesel engine
The casing is axially split, the casing is axially split, which permits removal of the complete rotor without moving either piping or motor.Pumps generating high heads have double volutes to reduce radial forces.
Replaceable wear ring protect the casing at the impeller running clearances. Vertical or horizontal, soft packing or mechanical seal, grease or oil lubrication bearing is optional according your working conditon, and so as electric motor or diesel engine driver.
32 inch diesel flood water pump 150hp with diesel engine Application
The high capacity diesel engine driven water pump is widely used in water supply or drainager projection in different industries, such as metallurgy, power station, spinning and weaving, chemical, printing, dyeing, ceramics, rubber, heating, afterheating use, air conditioner, farm irrigtion and drainage, and so on...
Material of 32 inch diesel flood water pump 150hp with diesel engine
|
Casing |
Cast Iron and Ductile Iron standard; optional Stainless Steel |
|
Impeller |
Bronze standard, optional Brass, Cast Iron, and Stainless Steel |
|
Split casing pump Shaft |
AISI420 standard, optional AISI304 & AISI316 |
General Description of 32 inch diesel flood water pump 150hp with diesel engine
Type QS,QSH pumps are single stage, double suction with horizontally split casings.
Type QS ,QSH pumps are adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or drainage services in agriculture, etc.
Constructure drawing of 32 inch diesel flood water pump 150hp with diesel engine
32 inch diesel flood water pump 150hp with diesel engine
performance parameters
|
Model |
Flow rate (m3/hr) |
Head (m) |
Speed (rpm) |
Power (kw) |
Eff (%) |
|
QS150 |
110~220 |
35~84 |
2900 |
30~55 |
67~80 |
|
QS200 |
160~351 |
31~100 |
2900 |
37~110 |
67~85 |
|
QS250 |
324~612 |
8.6~71 |
1450 |
22~132 |
72~86 |
|
QS300 |
504~972 |
8~98 |
1450 |
30~300 |
70~84 |
|
QS350 |
745~1663 |
10~140 |
1450 |
55~680 |
70~88 |
|
QS400 |
900~1620 |
32~98 |
980~1480 |
155~500 |
71.5~84 |
|
QS500 |
1150~2450 |
10.6~108 |
740~970 |
110~800 |
70~89 |
|
QS600 |
2304~4000 |
13~80 |
730~970 |
185~900 |
70~91 |
|
QS700 |
2111~4896 |
39.5~99.5 |
740~980 |
560~1250 |
72~92 |
|
QS800 |
3960~7200 |
23.5~84 |
600~740 |
450~1600 |
77~92 |
|
QS1000 |
6000~9900 |
32~52 |
600~990 |
1250 |
79~87 |
|
QS1200 |
5832~14400 |
6~95.7 |
500~745 |
710~3450 |
80~90 |
