Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIDESTAR
-
Model Number:
-
TD-5-251
-
Voltage:
-
110v-240V
-
Motor:
-
50W-2250W
-
Product name:
-
High Temperature Centrifugal Duct Fan Blower Industry Inline Duct Fan
-
voltage:
-
110v 230v 240v
-
Insulation Class:
-
F
-
Noise:
-
<50db
-
Highest temperature rise:
-
85℃
-
Impeller material:
-
Galvanized steel or Aluminum
-
Protection Class:
-
IP44
-
Keyword:
-
Centrifugal Duct Fan
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Farms, Restaurant, Home Use, Food & Beverage Shops, Grow Garden
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIDESTAR
-
Model Number:
-
TD-5-251
-
Voltage:
-
110v-240V
-
Motor:
-
50W-2250W
-
Product name:
-
High Temperature Centrifugal Duct Fan Blower Industry Inline Duct Fan
-
voltage:
-
110v 230v 240v
-
Insulation Class:
-
F
-
Noise:
-
<50db
-
Highest temperature rise:
-
85℃
-
Impeller material:
-
Galvanized steel or Aluminum
-
Protection Class:
-
IP44
-
Keyword:
-
Centrifugal Duct Fan

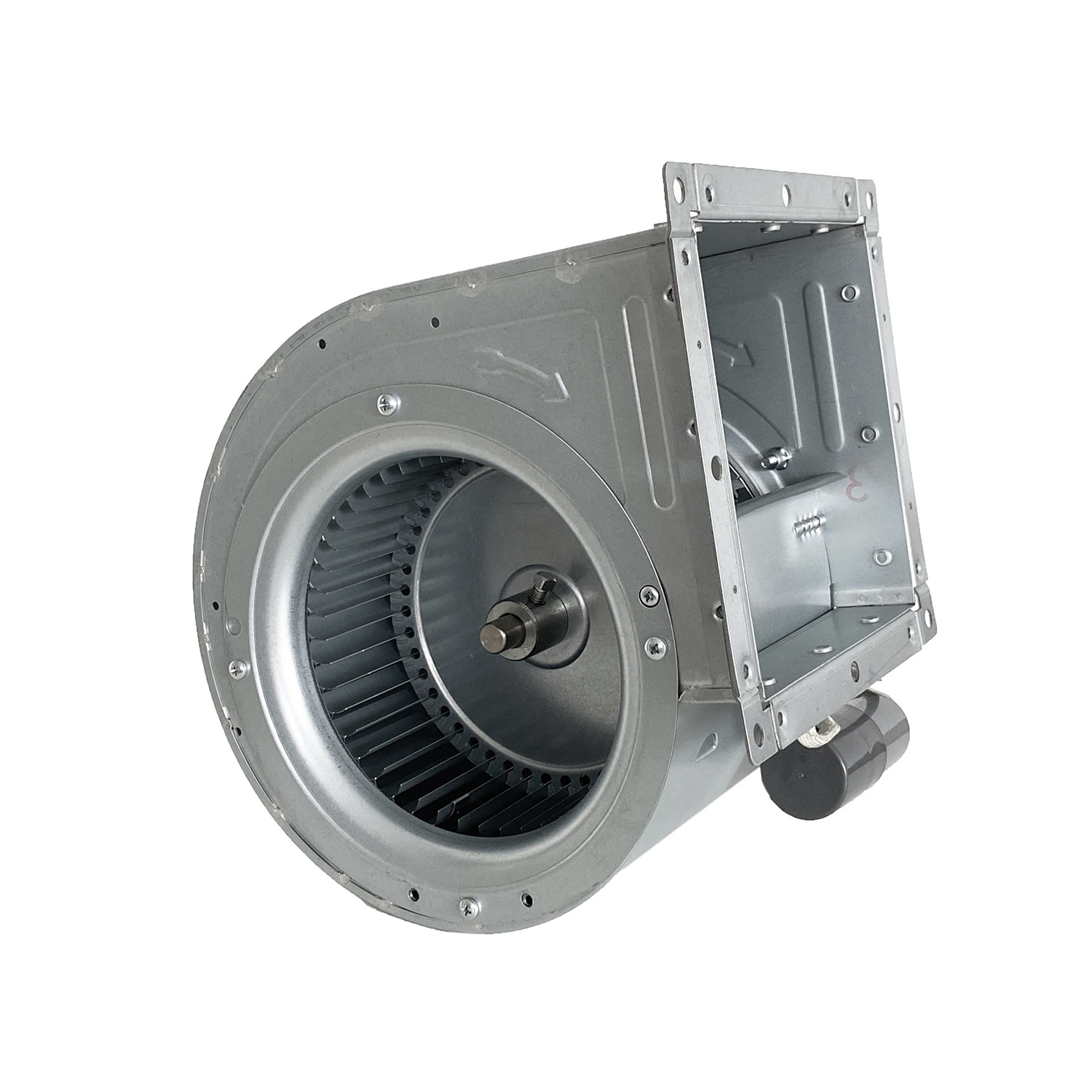

Hydroponics High Temperature Centrifugal Duct Fan Blower Industry Inline Duct Fan
Product Features:
* They are suitable for civil and industrial applications
* The low noise level is due to the acoustic material that cover the ventilator
* Above fan Suited to ventilate and convey clean air up to a maximum temperature of 85ºC
* The low noise level and the medium pressure head make them ideal for ventilation plants with limited space like offices, shops, industrial and residential installations
* They are suitable for civil and industrial applications
* The low noise level is due to the acoustic material that cover the ventilator
* Above fan Suited to ventilate and convey clean air up to a maximum temperature of 85ºC
* The low noise level and the medium pressure head make them ideal for ventilation plants with limited space like offices, shops, industrial and residential installations
|
MODEL/POWER
|
AIR FLOW（m3/h）
|
Presssure(Pa）
|
Voltage（V)
|
Product size
|
FLAGE SIZE （L*W：mm）
|
|
7-5-4/120W
|
950
|
260
|
220
|
290*250*310
|
183*183
|
|
7-5-4/150W
|
1100
|
280
|
220
|
290*250*310
|
183*183
|
|
7-7-4/200W
|
1500
|
280
|
220
|
320*300*355
|
235*210
|
|
8-8-4/370W
|
2600
|
350
|
220
|
350*380*390
|
290*260
|
|
9-9-4/450W
|
3200
|
380
|
220
|
380*360*420
|
300*265
|
|
10-10-4/550W
|
4200
|
400
|
220
|
430*410*480
|
333*290
|
|
10-10-4/750W
|
5000
|
400
|
220
|
430*410*480
|
333*290
|
|
12-9-6/750W
|
6000
|
380
|
220
|
500*360*540
|
310*340
|
|
12-12-6/900W
|
7000
|
380
|
220
|
500*460*540
|
|
Product Display
Specification
|
item
|
value
|
|
Type
|
Centrifugal Fan
|
|
Applicable Industries
|
Manufacturing Plant, Farms, Restaurant, Home Use, Food & Beverage Shops, Grow Garden
|
|
Customized support
|
OEM, ODM
|
|
Electric Current Type
|
AC
|
|
Blade Material
|
Galvanized Steel
|
|
Mounting
|
Duct Fan
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
TIDESTAR
|
|
Model Number
|
TD-5-251
|
|
Voltage
|
110v-240V
|
|
Warranty
|
1 Year
|
|
After-sales Service Provided
|
Online support
|
|
Motor
|
50W-2250W
|
|
Product name
|
High Temperature Centrifugal Duct Fan Blower Industry Inline Duct Fan
|
|
voltage
|
110v 230v 240v
|
|
Warranty
|
1year
|
|
Insulation Class
|
F
|
|
Noise
|
<50db
|
|
Highest temperature rise
|
85℃
|
|
Impeller material
|
Galvanized steel or Aluminum
|
|
Protection Class
|
IP44
|
|
Keyword
|
Centrifugal Duct Fan
|
