Quick Details
-
Main Circuit Rating Voltage:
-
220V~690V
-
Main Circuit Rating Current:
-
12A-95A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
YCQ7
-
Rated operation current(Ie):
-
12A-95A
-
Coil rated voltage:
-
36V, 110V, 220V, 380V
-
Standard:
-
IEC/EN 60947-4-1
-
Frequency:
-
AC 50Hz/60Hz
-
Certification:
-
CE, CB, CCC, TUV
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
220V~690V
-
Main Circuit Rating Current:
-
12A-95A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
YCQ7
-
Rated operation current(Ie):
-
12A-95A
-
Coil rated voltage:
-
36V, 110V, 220V, 380V
-
Standard:
-
IEC/EN 60947-4-1
-
Frequency:
-
AC 50Hz/60Hz
-
Certification:
-
CE, CB, CCC, TUV
Push Start Button Metal Switch 220 V 3 Phase Magnetic Motor Starter
Product Detail
| Rated operation current(Ie) | 12A-95A |
| Coil rated voltage | 36V, 110V, 220V, 380V |
| Standard | IEC/EN 60947-4-1 |
| Frequency | AC 50Hz/60Hz |
| Certification | CE, CB, CCC, TUV |
| Product Keywords | push switch,start button metal switch,220 v 3 phase magnetic motor starter |
Scope of application
YCQ7 series magnetic starter is suitable for using in the circuits the rated voltage up to 660V, AC 50Hz or 60Hz, rated control power to 45kW and current to 95A. It is used to control the direct start and stop of the motor, and the starter with thermal overload relay protects the motor from overload and phase failure. Standard: IEC/EN 60947-4-1.
Specifications
Specifications for magnetic starter (sheet1) Coil rated control power supply voltage Us can be divided into AC 50Hz or 60Hz: 36V, 110V, 220V, 380V. Operating condition: Coil pull-in voltage is (85%~110%) Us; Release voltage is (20%~75%) Us
Structural Features

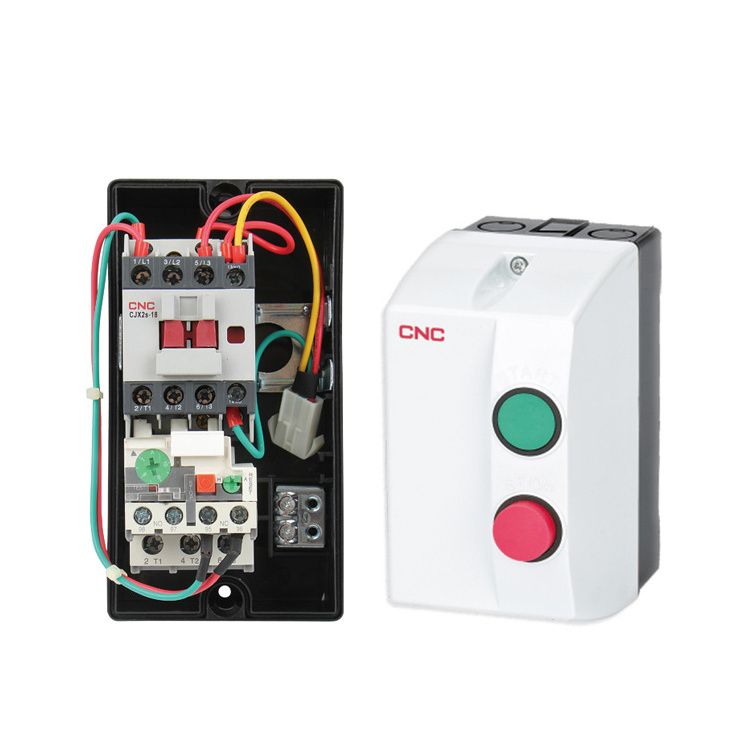

The starter adopts a protective structure with a protective cover of IP55 and is internally composed of a CJX2 AC contactor and aJR28 thermal overload relay. The entry and exit wiring of the starter adopts the knockout type wiring hole, and the user canselectively knock and connect the four knockout holes according to the wiring requirements. The cover and the base of the startercan be completely separated, and the user is very convenient to install and maintain; the button adopts the XB2 series push buttonswitch assembly to realize the start and stop of the starter, and it will be safe and reliable. In order to improve the protective performance of the starter, the starter must be installed vertically. The mounting screws should beselected according to the size of the mounting hole. The screws should be no less than M5, and spring washers, flat washers andsealing rubber rings should be added to ensure the fastening of the starter. In addition, the knockout terminal holes should beequipped with corresponding waterproof terminals.
PACKAGE:
CNC OR OEM 1P 180UNITS/CTN 2P 90UNITS/CTN 3P 60UNITS/CTN 4P 45UNITS/CTN 42*26.5*23.4 cm 18kg/ctn
DELIVERY TIME:
7-18 days after payment ----delivery date should be decided according to production season and order quantity.
