Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
2000
-
Lathe Bed:
-
Strong lathe bed
-
Gantry:
-
Steel structure gantry design
-
Guide Rail:
-
Taiwan Hiwin Square Rail with X,Y,Z axis
-
XY Z Transmission:
-
Gear rack with X and Y axis Imported Ball Screw with Z axis
-
Spindle Motor:
-
9kw HQD Air cooling spindle special for tool changer
-
Drive Mode:
-
Servo system
-
Working Voltage:
-
AC220V/380V, 50/60Hz
-
Inverter:
-
11KW Fuling inverter
-
Control System:
-
Taiwan LNC control system
-
Motor:
-
Leadshine Servo Motor
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
2000
-
Lathe Bed:
-
Strong lathe bed
-
Gantry:
-
Steel structure gantry design
-
Guide Rail:
-
Taiwan Hiwin Square Rail with X,Y,Z axis
-
XY Z Transmission:
-
Gear rack with X and Y axis Imported Ball Screw with Z axis
-
Spindle Motor:
-
9kw HQD Air cooling spindle special for tool changer
-
Drive Mode:
-
Servo system
-
Working Voltage:
-
AC220V/380V, 50/60Hz
-
Inverter:
-
11KW Fuling inverter
-
Control System:
-
Taiwan LNC control system
-
Motor:
-
Leadshine Servo Motor

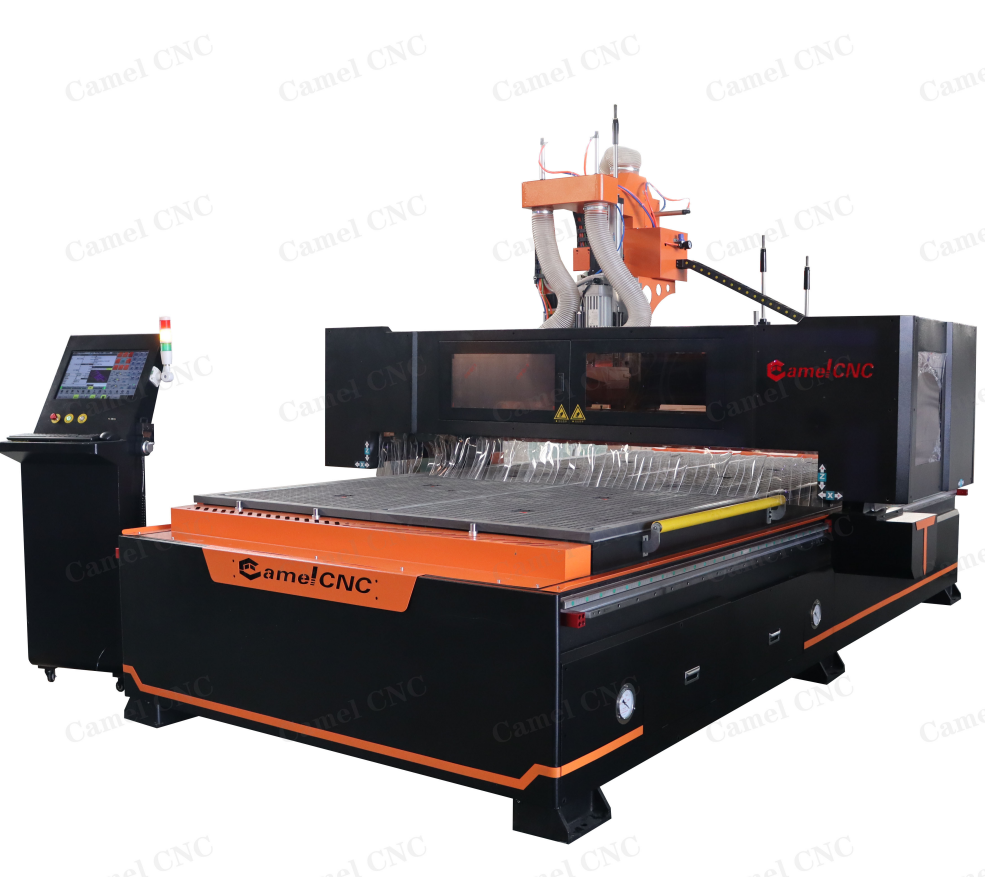

Easy operation big size CA-1325 1530 2030 ATC CNC Router with Gantry protective cover
1. Super quality 9KW Air cooling Auto-tool changer spindle.
2.Taiwan Hiwin linear guide railkeep high working precision
3.Famous servo motor and driver ensures machine to run with fast speed and low noise.
4.With 12pieces auto-tool changer and Autotool sensor.
5. Vacuum table and vacuum pump, and 0kw dust collector.
6.Taiwan LNC ATCcontrolling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
7. High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
2.Taiwan Hiwin linear guide railkeep high working precision
3.Famous servo motor and driver ensures machine to run with fast speed and low noise.
4.With 12pieces auto-tool changer and Autotool sensor.
5. Vacuum table and vacuum pump, and 0kw dust collector.
6.Taiwan LNC ATCcontrolling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
7. High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
1. Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2. Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3. Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4. Other industry: image engraving, embossing, craft and gift industry
2. Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3. Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4. Other industry: image engraving, embossing, craft and gift industry
|
Name
|
Specification
|
|
X,Y,Z Working Area
|
1300X6000X300mm
|
|
Table Size
|
1855X8000mm
|
|
X,Y,Z,Traveling Positioning
Accuracy |
±0.03/300mm
|
|
X,Y,Z,Repositioning Positioning
Accuracy |
±0.05mm
|
|
Lathe Bed
|
Strong lathe bed
|
|
Gantry
|
Steel structure gantry design
|
|
Guide Rail
|
Taiwan Hiwin Square Rail with X,Y,Z axis
|
|
XY Z Transmission
|
Gear rack with X and Y axis
Imported Ball Screw with Z axis |
|
Spindle Motor
|
9kw HQD Air cooling spindle special for tool changer
|
|
Max. Speed
|
0-45000mm/min
|
|
Max. Working Speed
|
0-25000mm/min
|
|
Spindle Speed
|
0-24000RPM
|
|
Drive Mode
|
Servo system
|
|
Working Voltage
|
AC220V/380V, 50/60Hz
|
|
Command
|
G Code, *uoo, *mmg, *plt
|
|
Inverter
|
11KW Fuling inverter
|
|
Control System
|
Taiwan LNC control system
|
|
Typeset Software
|
ARTCAM(can support any G-code software)
|
|
Motor
|
Leadshine Servo Motor
|
|
Driver
|
Servo Driver
|
|
Tools cooling
|
OIL sprayer pump
|
|
Lathe Table
|
Vacuum table with 8 sections +6 vacuum cups
|
|
Vacuum Pump
|
7.5KW VACUUM Pump
|
|
Air compressor
|
3.0KW
|
|
Tool Magazine
|
12pcs ISO30 tool holder
|
|
Dust Collector
|
3.0KW
|
|
Electricity cabinet
|
Independent Cabinet
|
|
Tool sensor
|
TOOL SENSOR
|
|
Collet
|
ER32
|
|
X,Y Working Delicacy
|
<0.01mm
|
|
Software
|
Ucancam, Artcam
|
|
Running circumstance
|
Temperature: 0℃～45℃, Relative humidity: 30%～75%
|
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function.
We can recommend the most suitable machine according to our experience.
Q2: This is the first time i buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.
Q7: How is the payment?
Normally we accept T/ or LC, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
