Quick Details
-
Model Number:
-
GLF-12-3R
-
Product name:
-

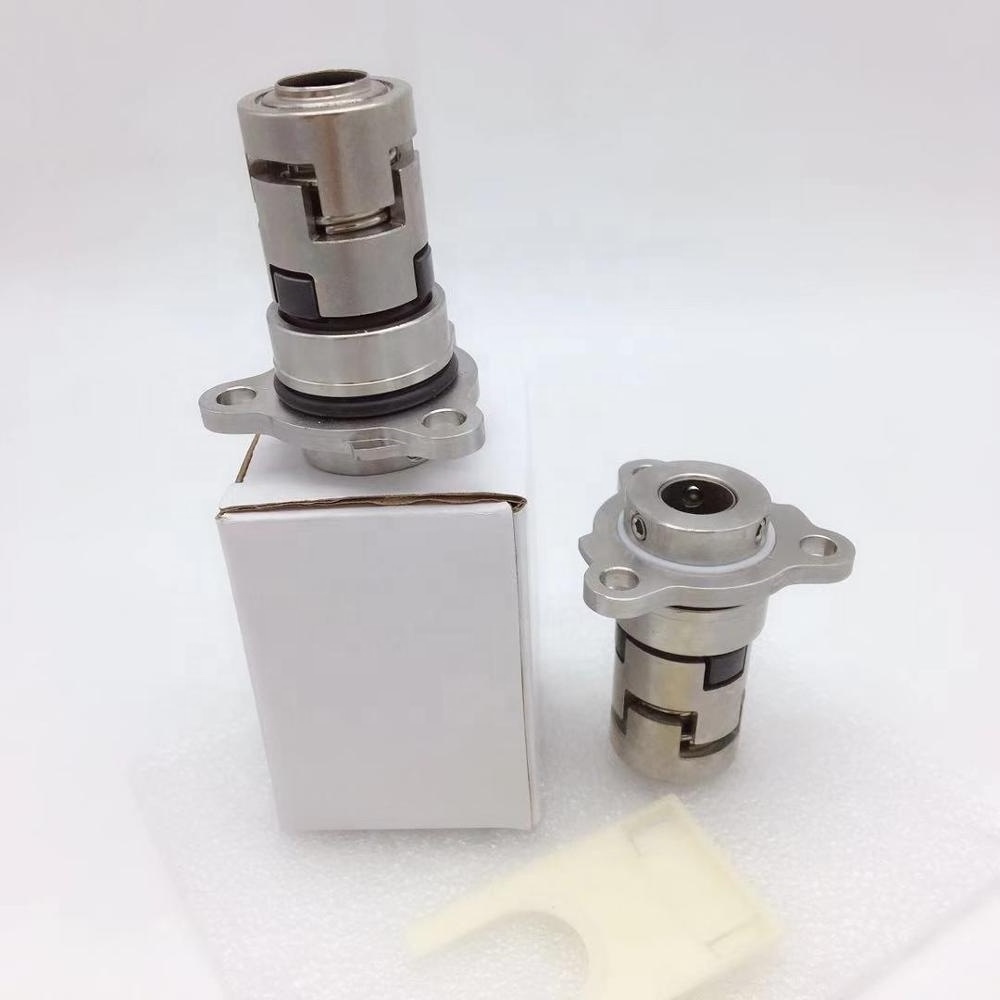

mechanical seal
-
Application:
-
CR pump
-
Advantage:
-
easy to replace without dismantling the pump part
-
Medium:
-
Water,Oil and other low corrosion mediums
-
Pressure:
-
up to 25 Mpa
-
Type:
-
shaft seal
-
size:
-
12mm ,16mm
-
name:
-
sello mecanico
-
HS Code:
-
8484200090
-
Certificate:
-
ISO9001
Quick Details
-
Size:
-
full size
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yade
-
Model Number:
-
GLF-12-3R
-
Product name:
-
mechanical seal
-
Application:
-
CR pump
-
Advantage:
-
easy to replace without dismantling the pump part
-
Medium:
-
Water,Oil and other low corrosion mediums
-
Pressure:
-
up to 25 Mpa
-
Type:
-
shaft seal
-
size:
-
12mm ,16mm
-
name:
-
sello mecanico
-
HS Code:
-
8484200090
-
Certificate:
-
ISO9001
|
Seal Type
|
GLF-12-3R
|
|
Shaft size
|
12mm
|
|
Temperature
|
-30 degree to 200 degree,dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
Face
|
SIC,TC
|
|
Seat
|
Carbon ,Sic,TC
|
|
Elastomer
|
NBR,EPDM,VITON,
|
|
Spring
|
SS304
|
|
Metal parts
|
SS304
|
|
Type
|
Rotary Ring
|
Stationary Ring(Seat)
|
Elastomers (Rubber)
|
Remark
|
|
Carbon-Ceramic-NBR
(CA/CE/NBR)
|
Carbon
|
Ceramic
|
NBR
|
CE: Ceramic
CA: Carbon
Sic: Silicon carbide
TC: Tungsten carbide
NBR: Nitrile Butadiene
V:Viton
EP: EPDM
MVQ/VMQ: Silica gel
|
|
SIC/SIC/VITON
(S/S/V)
|
Silicon Carbide
|
Silicon Carbide
|
Viton
|
|
|
Carbon-Sic-Viton
(CA/S/V)
|
Carbon
|
Silicon Carbide
|
Viton
|
|
|
Sic-Sic-NBR
(S/S/NBR)
|
Silicon Carbide
|
Silicon Carbide
|
NBR
|
|
|
Sic-Sic-EPDM
(S/S/EP)
|
Silicon Carbide
|
Silicon Carbide
|
EPDM
|
|
|
Sic-Sic-MVQ
(S/S/MVQ)
|
Silicon Carbide
|
Silicon Carbide
|
Silica gel
|
|
|
TC-TC-Viton
(TC/TC/V)
|
Tungsten Carbide
|
Tungsten Carbide
|
Viton
|
|
we're a factory which professional production the mechanical seal metal structural parts and complete sets of machinery and seals for more than 15 years ,we own our professional engineer department that can supply OEM products.
The main products are: fastening ring, transmission seat,driving ring,spring seat,shaft gland ,punching parts and all kinds of standard ,non-standard mechanical seals.
Our advantage product is Grundfos seals,the type as GLF01.GLF02.GLF03,GLF04,GLF05.GLF06,GLF-12.GLF-22,GLF-32,GLF-36,GLF-43,GLF-48 etc.
|
Packing
|
1 pcs packed individually in one box
|
|
|
||
|
Delivery time
|
`for stock ,we can sent to you within 2-3days
|
|
|
||
|
|
for standard product ,20-30 days
|
|
|
||
Q: How about payment?
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q: Are you trading company or manufacturer ??
A: We are factory.
If you have any other questions,please do not hesitate to contact us!
