Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V/110V ,50Hz/60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPK
-
Dimension(L*W*H):
-
60*10*6cm
-
Weight:
-
4 KG
-
Certification:
-
CE Certificate
-
After-sales Service Provided:
-
Online Support
-
service:
-
OEM,Professional after-sales service
Quick Details
-
Machinery Capacity:
-
Other
-
Packaging Material:
-
Plastic, Wood
-
Filling Material:
-
Milk, Water, Juice
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V/110V ,50Hz/60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPK
-
Dimension(L*W*H):
-
60*10*6cm
-
Weight:
-
4 KG
-
Certification:
-
CE Certificate
-
After-sales Service Provided:
-
Online Support
-
service:
-
OEM,Professional after-sales service
Product Description

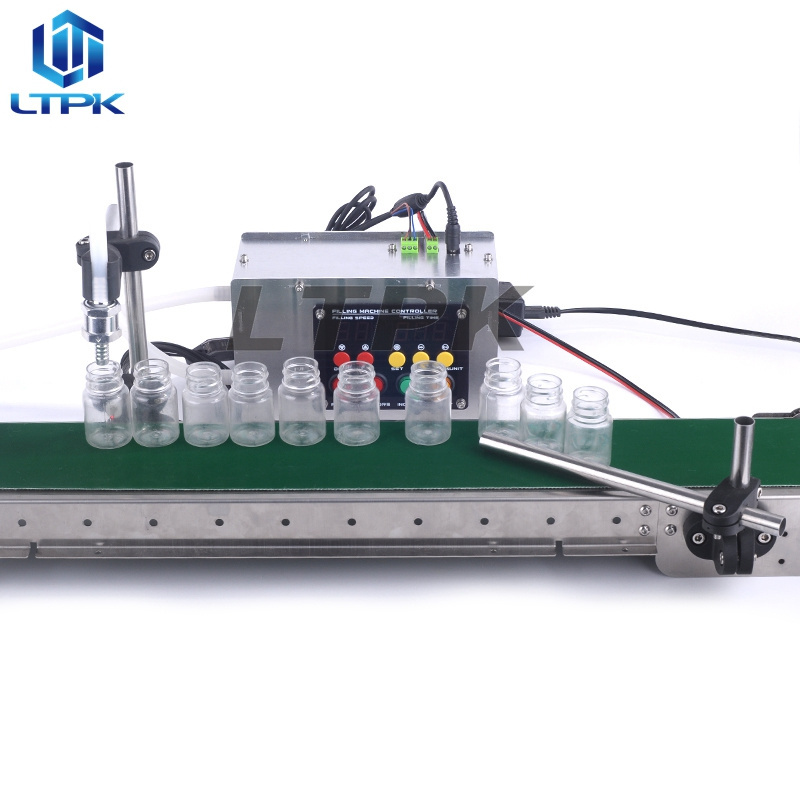

* Our Filling machine are widely used for pure liquid.
* And we have two type of machine for customer to choose. One is 1.5L/min 100℃, and the other is 3L/min 60℃. And they both can be matched the conveyor to prove the production efficiency.
* And we have two type of machine for customer to choose. One is 1.5L/min 100℃, and the other is 3L/min 60℃. And they both can be matched the conveyor to prove the production efficiency.
Technical Parameters
|
Model
|
LT-S3000CW
|
LT-S1500CW
|
|
|
Liquid temperature
|
＜60℃
|
＜100℃
|
|
|
Maximum flow Rate
|
3L/min
|
1.5L/min
|
|
|
Max Absorption Distance
|
2M
|
|
|
|
Repeat Error
|
＜1％
|
＜0.5％
|
|
|
Filling Volume Range
|
10-3000ml
|
5-1500ml
|
|
|
Pump
|
Diaphragm Pump
|
|
|
|
Working speed
|
depends on filling volume
|
|
|
|
Working Mode
|
Manual/Automatic/Intelligent induction mode
|
|
|
|
Diameter of Filling Nozzle
|
Φ9mm
|
|
|
|
Power
|
60W
|
|
|
|
Voltage
|
AC110V-240V
|
|
|
|
Host size
|
18*12.5*9cm
|
|
|
|
Conveyor belt size
|
60*10*6cm
|
|
|
|
Conveyor load weight
|
<6kgs
|
|
|
|
Suitable bottle diameter
|
<10cm
|
|
|
|
Adjustable holder height
|
0-300mm
|
|
|
*Noted:
The above parameters for reference only.
The machine constantly upgrades parameters may cause the actual discrepancies, please understand.
|
Model
|
LT-S3000CW-A
|
LT-S3000CW-B
|
LT-S3000CW-C
|
|||
|
Conveyor belt size
|
60*10*6+20(tray)
|
120*10*6+20(tray)
|
90*15*8+30(tray)
|
|||
|
Conveyor belt load
|
6kgs
|
6kgs
|
15kgs
|
|||
|
The inner diameter of the bottle mouth needs to be greater than 7mm.
|
|
|
|
|||
