ASTM D1895 Plastic Apparent Density Meter Type A Type B

ASTM D1895 Plastic Apparent Density Meter Type A Type B

FOB Reference Price: Get Latest Price

≥1 Sets

US $650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: RIGHT

Model Number:: RT-730

Product name:: ASTM D1895 Plastic Material Apparent Density Tester

Application:: used for the measurement of apparent density, bulk factor

Standard:: ASTM D1895

Material:: SUS 304 Stainless Steel

Funnel:: TYPE A/ TYPE B

Dimension:: 94X47X86 cm

Weight:: 5kg

MOQ:: 1

Delivery time:: 7-15days

Packing:: Wooden Packing

Quick Details

Warranty:: 1 YEAR

Power:: Electronic

Place of Origin:: Guangdong, China

Brand Name:: RIGHT

Model Number:: RT-730

Product name:: ASTM D1895 Plastic Material Apparent Density Tester

Application:: used for the measurement of apparent density, bulk factor

Standard:: ASTM D1895

Material:: SUS 304 Stainless Steel

Funnel:: TYPE A/ TYPE B

Dimension:: 94X47X86 cm

Weight:: 5kg

MOQ:: 1

Delivery time:: 7-15days

Packing:: Wooden Packing

Scope of application

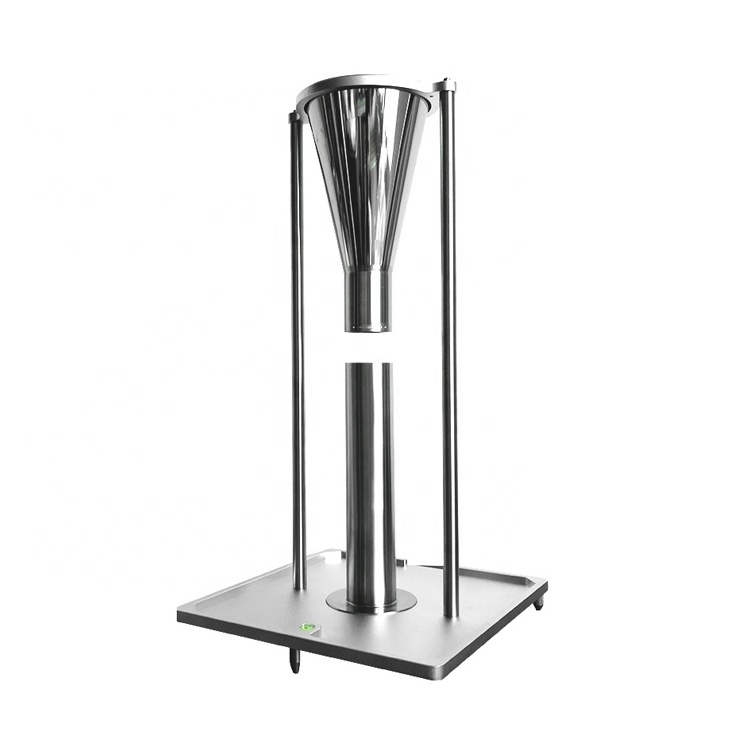

RT-730 Plastic Material Apparent Density Tester

RT-730 Apparent Density Tester is used for the measurement of apparent density, bulk factor, and where applicable, the pourability of plastic materials such as molding powders. It is the ideal tester for the chemical industrial and the plastic manufactory. The mass of loose material (powder or granular material) can be poured from a funnel of specified design to a unit of specified volume. The density can be gotten through the volume and the weight of materials in the unit.

Standards compliant

ASTM D1895 03 Standard Test Methods for Apparent Density, Bulk Factor, and Pourability of Plastic Materials 1 ； Apparatus for Apparent Density Test, Method A and B.

ASTM D1803 Standard Test Methods for Apparent Density, Bulk Factor, and Pourability of Plastic Materials 1; Apparatus for Apparent,Density Test, Method A and B; JIS ASTM K-6721(1966) . Bulk density the mass of loose material per unit volume, including the pores within particles and the Spaces between particles. Synonym: apparent density.

Product Paramenters

ASTM D1895 A method

D-1895 standard	ASTM A method
The upper opening diameter of the funnel	9.3cm
The lower outlet diameter of the funnel	0.95+0.08cm
Funnel height	11.4cm
Measuring Cup Height	7.98cm
The height between the cup mouth and the lower outlet of the funnel	3.8cm
Accessories	stopwatch (1 piece), brush (1 piece), steel rule 15cm (1 piece)

ASTM D1895 B method

D-1895 standard	ASTM B method
The height of cup	24+0.1cm
The height between funnel and cup	3.8cm
The lower outlet of the funnel	2.54cm+0.16cm
The upper opening diameter of the funnel	12.7+1.0cm
Cup volume	400mlt2.0ml
Angle	24 degrees
Material	stainless steel
Accessories	stopwatch (1piece); brush (1piece); Steel ruler 15cm (1piece)

ISO Method R60

1. ISO Method R 60 differs from Test Method A in the following respects: * Funnel as shown in Fig. X1.1. * Measuring Cylinder: which differs only in that theinternal diameter is 45 + 5 mm (1.77 + 0.20 in). * Mounting of the funnel is such that its lower orifice is 20 to 30 mm (0.79 to 1.18 in) above the measuring cylinder. 2. Test Method A and ISO Method R 60 have been found to give values that difer by -0.01 to +0.03 apparent density units (g/cm? based on theaverage of five tests for each of the three materials.

Product Advantages

1. Funnel integrated molding without welding; The whole block of 304 stainless steel digging hole, slope, aperture are in the national standard range, no deviation;

2. The receiving measuring cup is made of stainless steel according to national standard.
