Quick Details
-
Production Capacity:
-
100%
-
Power:
-
4.0KW, 4.0KW
-
Dimension(L*W*H):
-
5000*1100*1750mm
-
Model:
-
SHWA4-100x4500
-
Working Pressure:
-
0.5-0.8Mpa
-
Air Consumption:
-
200L/min
-
Welding Height:
-
20-130mm
-
Welding Width:
-
110mm
-
Welding Size:
-
4500mm
Quick Details
-
Brand Name:
-
SAINT-FECO
-
Voltage:
-
380V 50Hz, 220V/50HZ
-
Weight:
-
800 kg
-
Production Capacity:
-
100%
-
Power:
-
4.0KW, 4.0KW
-
Dimension(L*W*H):
-
5000*1100*1750mm
-
Model:
-
SHWA4-100x4500
-
Working Pressure:
-
0.5-0.8Mpa
-
Air Consumption:
-
200L/min
-
Welding Height:
-
20-130mm
-
Welding Width:
-
110mm
-
Welding Size:
-
4500mm
Products Description
Features:

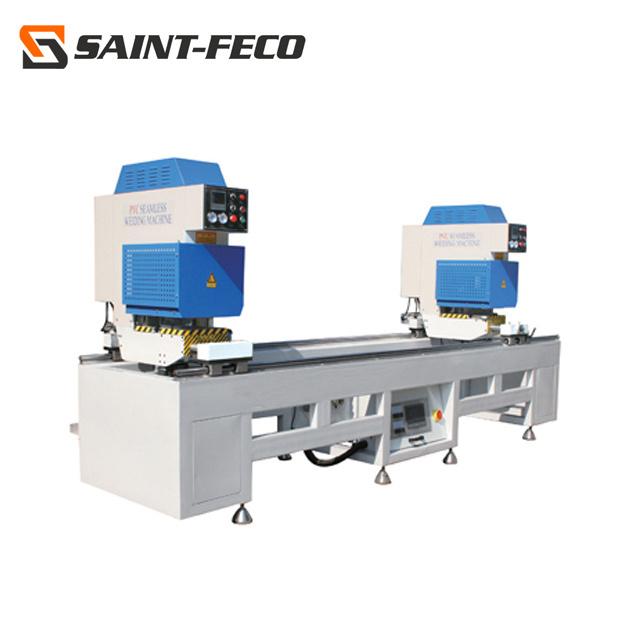

1.This machine is used for welding color and white PVC profiles.
2.It has cleaning cutter, can clean the upper and down surface after welding automatically, welding seam is only 0.2mm
3.The machine adopts PLC to control, to guarantee smoothly running and stability
4.Second-time pressing function, to guarantee welding strength
5.Professional fixtures for profiles, to guarantee good welding and corner cleaning quality
6.Backward and forward pressing plate to adjust independently, to improve welding flatness.
7.The 4 heads can be working linkage, independently.
Product Paramenters
|
Model
|
SHWA4-100x4500
|
|
Voltage
|
220V/50HZ
|
|
Power
|
4.0KW
|
|
Working Pressure
|
0.5-0.8Mpa
|
|
Air Consumption
|
200L/min
|
|
Welding Height
|
20-130mm
|
|
Welding Width
|
110mm
|
|
Welding Size
|
4500mm
|
|
Dimension
|
5000×1100×1750mm
|
