China Factory Direct Sale 8*30m Cheap Greenhouse Single-span Tunnel Greenhouse Used For Agriculture Tomato Strawberry

China Factory Direct Sale 8*30m Cheap Greenhouse Single-span Tunnel Greenhouse Used For Agriculture Tomato Strawberry

FOB Reference Price: Get Latest Price

≥2 Sets

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Unigreen, Unigreen

Product Name:: PEP Film Greenhouse

Keyword:: Greenhouses for Sale

Application:: Greenhouse Seedling Growing

Usage:: Vegetable Fruits Flowers Planting

Length:: Customized Size

Width:: 2ft/3ft/4ft/5ft/1.7m/1.8m/Customized

Span Width:: 9m/9.6m/12m/Customized

Quick Details

Size:: Small

Type:: Single-Span Agricultural Greenhouses

Model Number:: UG-PEP

Place of Origin:: Jiangsu, China

Brand Name:: Unigreen, Unigreen

Product Name:: PEP Film Greenhouse

Keyword:: Greenhouses for Sale

Application:: Greenhouse Seedling Growing

Usage:: Vegetable Fruits Flowers Planting

Length:: Customized Size

Width:: 2ft/3ft/4ft/5ft/1.7m/1.8m/Customized

Span Width:: 9m/9.6m/12m/Customized

Specification

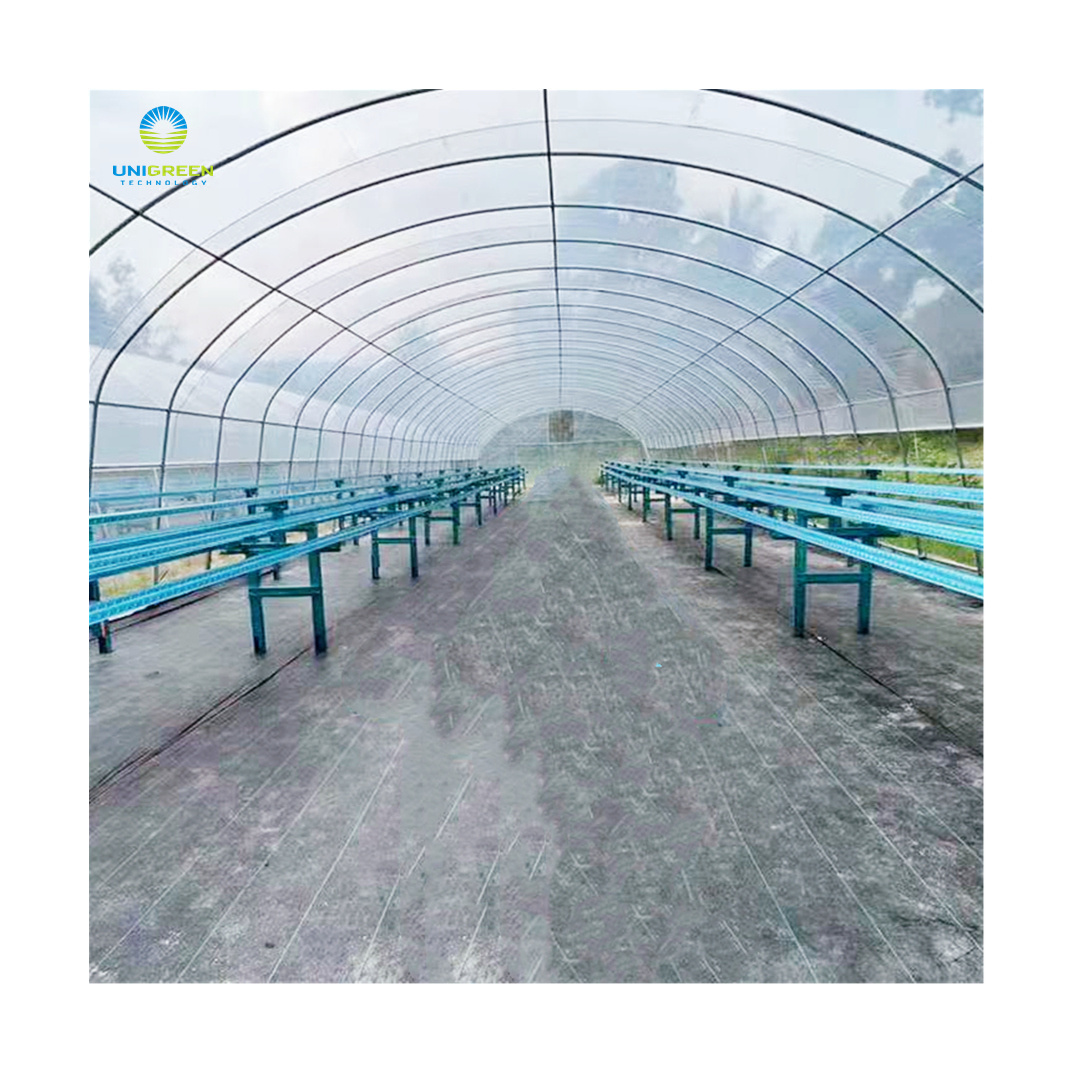

Single span plastic film greenhouse
Product Name	Single Span Plastic Film Greenhouse
Size	①8x30m / ②8x32m
Cover Material	PEP Film(120micron,150micon,200micron)
Frame Material	Hot-dip Galvanized Steel Pipe
Side height	1.5m
Top height	3.2m
Length	30m/32m
Width	8m
Application	Vegetable/Fruit/Medical Plant/Lettuce/Tomato/Farming Growing
Basic System	① Ventilation System	② Cooling System
Additional System	① Shading System	② Air Circulation System
We will make design proposal as customers specific requirements.

Film Greenhouse

The galvanized frame of a film greenhouse made of a flat oval pipe can withstand heavy snow and wind loads and can be used both in the northern regions for year-round cultivation of any plants and flowers, and in the southern regions.

The strength of the metal frame of an industrial film greenhouse allows you to tie up plants for their better ripening, as well as to hang heating and lighting equipment necessary for all-season growing of plants in any region.

An industrial film greenhouse with a manual or automatic upper ventilation system allows you to grow even the most whimsical vegetables and flowers.

The skeleton connector is small, the versatility and interchangeability are good, and the installation is convenient.

Products Description

Cover Material

- PEP Film -
（Poly-ethylene Plastic）

Stable chemical property
Heat-resisting/Anti-freezing
Water--proof /Moisture--proof.

- Plastic film Greenhouse,cost-saving and convenient to use, is a kind of equipment for cultivation or breeding that is
constructed simply.

- The greenhouse has great space-efficient performance and strong ventilation ability,also preventing the heat loss and the
intrusion of cold air.

♢Plastic film Greenhouse♢

It can be used for the seed-breeding or planting of dwarf fruit tree and for aquaculture and livestock breeding as well as for
exhibition, ecological restaurant and teaching or scientific research, etc.

The Plastic-film Greenhouse can also be specially used for growing fruits, flowers and vegetables, providing them with the most
suitable conditions and protecting them from insects and cold.

Data reference:

Single-Span Width: 6m / 8m /10m/etc.
Single-Bay Width: 4m
Height of the Gutter: 3.0m ~ 6.0m
Height of Greenhouse: 4.5m～ 7.5m

NOTE:
The height of the gutter can be defined
by the requirements of clients.

Basic Structure

※ Hot drip galvanized steel structures

- Excellent and Durable -

※ Hot drip galvanized steel accessories

- Service life 10-15 years -

- Anti-rust -

- Sturdy and durable -

- Corrosion resistance -

Primary Load-Carrying Materials and Connecting Materials

a)The primary load-carrying materials include upright, gutter and trusses. b)There are many kinds of suitable connecting materials, such as roof connectors,roof-gutter connectors, gutter supporters.

Sunshade system

The Shading system principle is to filter the excess light through shade net to achieve indoor cooling effect,

preventing the plants from being burned in the greenhouse. And it can regulate the heat or reduce the cost for the operations. The shading system is installed on the top of the greenhouse with a sunshade net that can be driven by electricity. Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams.

Outside shading net is made by black and round wire materials and fastened by black polyester strings. Inside Shading System is installed in the greenhouse, fixed on the truss and with the frame of greenhouse.

Inside shading net is made by white aluminum--alloy materials, fastened by white polyester strings.

Inner Sunshade System

Material: Aluminum foil Sunshade Net Introduction:

Installed in the greenhouse, supported by the uprights and beams.

Advantage:

This system is Installation inner sunshade net in the greenhouse. Button control switch, reduce the internal temperature by cutting off excess solar radiation. In summer, it can reduce the inner temperature, and in winter or in night, it can prevent the heat running off.

Outer Sunshade System

Material: Black round wire Net

Introduction:

Installed in the greenhouse, supported by the uprights and beams.

Advantage: The shading system is installed on the top of the greenhouse with a sunshade net that can be driven by electricity. The principle is to filter the excess light through shade net to achieve indoor cooling effect. The external shading drive system adopts type A gear transmission, and the motor adopts a high-quality three-phase deceleration motor. Shelter Roofing closed, when not hot.

Ventilation System

The ventilation systems is consist of Roof Ventilation Systems and Side Ventilation Systems according to the difference of the
installation position.

Include:

Gear motor and controlled by the rack, pinion and other transmission tubes to make the windows open or closed.Common for glass and PC sheet greenhouse.

Advantage:

One-touch control switch to ensure that the greenhouse has good circulation of air and avoid troubles caused by repeated manual
operations.

Roof

Ventilation System

The gear motor controls the rack

pinion structure,

by which a set of driving rods act.

The windows open and close, supported by them (supporting arms).

Cooling System

Side Cooling-Pad

Ventilation System

The gear motor controls

the rack-pinion structure.

The rack connects the windows,

thus the windows open or clasie.

Side Plastic-Film

Reeling Ventilation System

(Manual or Electric)

Can be used on the side.

Usually installed on the plastic firm multi-span greenhouse on tunnel greenhouse and

controlled by the film reeler.

- The cooling pads are installed on one side of the greenhouse, the exhaust fans, the other. (The air-circulating fans are installed in the greenhouse.) - The exhaust fans eject the air from the greenhouse (The air-circulating fans promote the circulation of the air in the greenhouse), negative pressure formed in the greenhouse. - The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.

Advantage:

In hot weather, the pads and fans are used together,cool water circulation could reduce temperature and increase humidity inside the greenhouse at same time.

Fan

a) Frame Material:

Thick galvanized steel sheet

Advantage:

Strong anti-corrosion property

b) Blade: Driven by the belt through the motor. Passing the test of dynamic balance and static balance,ensuring the strong blasts of air through them and the low noise that is caused. c) Louver Material:

Aluminum alloy or galvanized steel

With the special switch structure,

functioning as the role of wind-proof, rain-proof and dust-proof effects.

Air-circulating Fan

a) The motor has the great performance of rain-proof,wind-proof and dust-proof.

It works in low noise and can be in service for long time.

b) The blade is punched by the light aluminum materials,large tilting angel, great blast capacity and low noise. c) The blast capacity,ensuring the circulation and uniformize the temperature, humidity and the concentration of CO ² .

d) You can choose the different frame, made by stainless steel steel or painted steel.
