Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
12kw
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1400*780*1530mm
-
Name:
-
yogurt production line
-
Raw material:
-
Fresh Liquid Milk / Milk Powder
-
Capacity:
-
300L~10000L yogurt production line
-
Processing Types:
-
Heating + Pasteurizing +Cooling
-
Refrigeration medium:
-
R22 yogurt production line
-
Material:
-
304 stainless Steel yogurt production line
-
Feature:
-
Automatic Continuos Yogurt Production Line
-
Tank type:
-
Cooling, Heating, Sterilization, Fermentation Tank
-
Application:
-
Dairy Industry
-
Final product:
-
Flavoured Milk Yogurt
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Orangemach
-
Voltage:
-
220v/380v
-
Power:
-
12kw
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1400*780*1530mm
-
Name:
-
yogurt production line
-
Raw material:
-
Fresh Liquid Milk / Milk Powder
-
Capacity:
-
300L~10000L yogurt production line
-
Processing Types:
-
Heating + Pasteurizing +Cooling
-
Refrigeration medium:
-
R22 yogurt production line
-
Material:
-
304 stainless Steel yogurt production line
-
Feature:
-
Automatic Continuos Yogurt Production Line
-
Tank type:
-
Cooling, Heating, Sterilization, Fermentation Tank
-
Application:
-
Dairy Industry
-
Final product:
-
Flavoured Milk Yogurt
Product Description

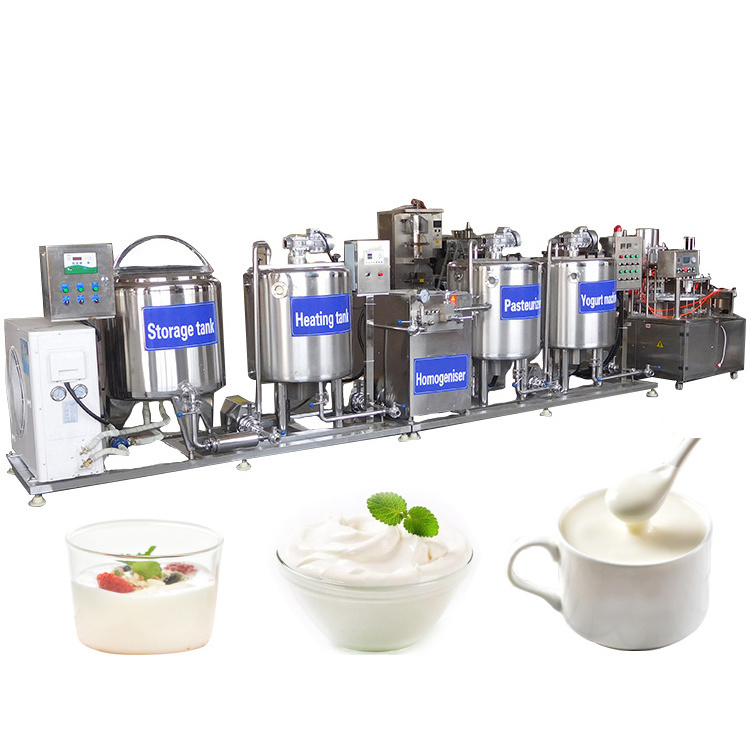

Yogurt plant fully automatic yogurt fermentation pasteurization maker machine complete small dairy greek yogurt production line
Functions
|
Preheating Tank
|
Pasteurization Tank
|
Fermenter
|
Refrigeration Tank
|
|
The heating tank before the milk is homogenized has light weight and good heat preservation performance.
|
Kill pathogenic in fresh milk and grain beverages, while minimizing the number of spoilage to improve the safety
of dairy products. |
It can accurately control the water temperature, milk temperature and fermentation time.
|
The cold raw milk can be quickly reduced to the required temperature and kept at a constant temperature.
|
Machines Parameters
Cooling Tank
Material: SUS304
Power supply: 380v/50Hz
Total power: 2Kw
Cooling capacity: 5000 kcal/hour
Sheet thickness: inner 2mm middle1mm
outer1.2mm
Installation size: 1700*1100*1950mm
Refrigeration medium: R22
Duplex filter
Filtering capacity: 5t/h
Applicable temperature: ≤120℃
Filter aperture: 200 mesh
Working pressure: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200 (mesh/in)
Preheating tank
Material: SUS304
Power supply: 380v 50Hz
9kw
Thickness of heavy plate: inner 2mm middle 2mm outer 1.2mm
Installation size: 1020*870*1530mm
Power of stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Homogenizer
Output: 200L/H
Maximum pressure: 25Mpa
Motor power:
4kw
Dimensions: 990*600*850mm
Whole machine weight: 600kg
Pump body material: 1Cr18Ni9Ti
Lubrication method: splash lubrication
Pasteurizer
Material: SUS304
Power supply: 380v 50Hz
9kw
Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm
Installation size: 1020*870*1530
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Fermenter
Material: SUS304
Power supply: 380v 50Hz
9kw
Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm
Installation size: 1400*1400*1950mm
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Filling Machine
Material: SUS304
Working method: continuous work
Filling method: automatic filling
Equipment size: 1300*1300*1750mm
Acid/Alkali/Water Tank
Water tank capacity: 500L
Alkali tank capacity: 500L
Acid tank capacity: 500L
Pump power: 1.5kw
Equipment weight: 500kg
Dimensions: 4000*900*2300mm
Final Product
All kinds of yogurt
Complete Production Process
