Quick Details
-
Voltage:
-
380V/220v(50-60hz)
-
Power:
-
18kw
-
Dimension(L*W*H):
-
1600w x 1800h x 1400d or customized
-
Weight (KG):
-
500
-
Product name:
-
Powder Coating Oven
-
Color:
-
White/blue/grey/orange or customized
-
Heating System:
-
Electric/Gas Option
-
Size:
-
Customized
-
Environmental certificate:
-
CE /ISO Certification
-
Application:
-
Powder Coating
-
MOQ:
-
1 Set
-
Control System:
-
Touch Screen Automatic
-
Wall Panel:
-
Rock Wool Wall Panel
-
Temperature:
-
180-200 degree
Quick Details
-
Machine Type:
-
Coating Production oven, Curing oven, Coating Equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Enshine
-
Voltage:
-
380V/220v(50-60hz)
-
Power:
-
18kw
-
Dimension(L*W*H):
-
1600w x 1800h x 1400d or customized
-
Weight (KG):
-
500
-
Product name:
-
Powder Coating Oven
-
Color:
-
White/blue/grey/orange or customized
-
Heating System:
-
Electric/Gas Option
-
Size:
-
Customized
-
Environmental certificate:
-
CE /ISO Certification
-
Application:
-
Powder Coating
-
MOQ:
-
1 Set
-
Control System:
-
Touch Screen Automatic
-
Wall Panel:
-
Rock Wool Wall Panel
-
Temperature:
-
180-200 degree
Product Description

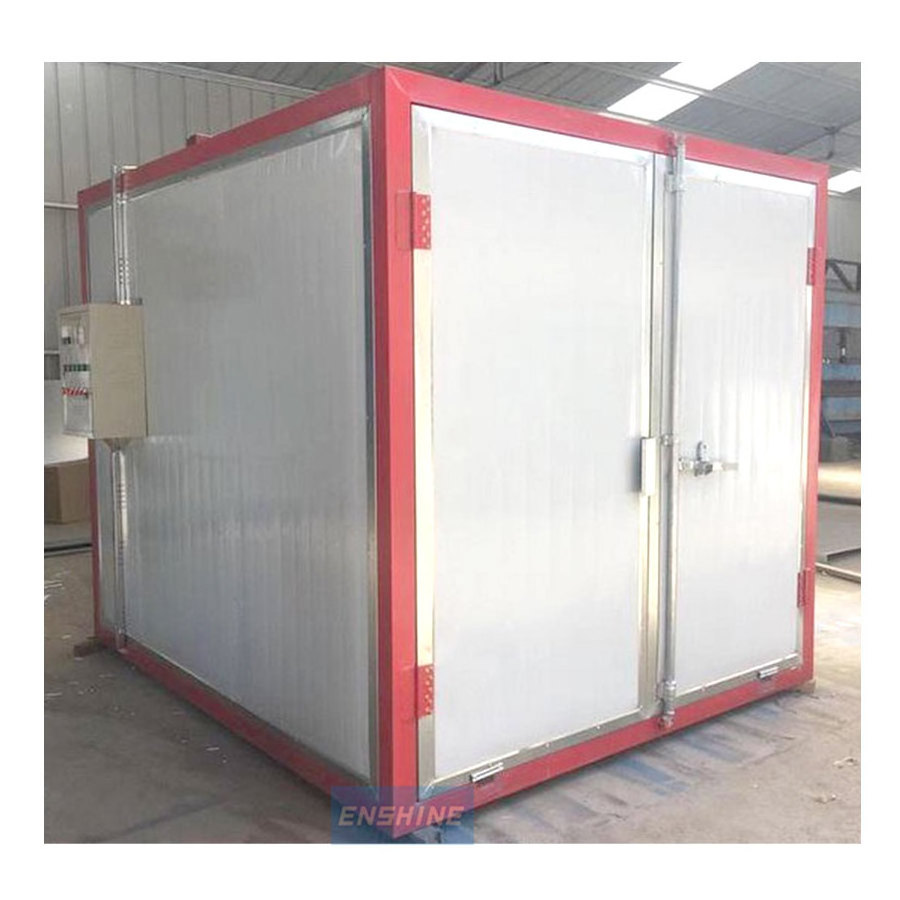

Enshine electrostatic powder coating spray paint oven are specially designed for curing metal workparts after powder coating, where the coating chemically reacts with heat to form long molecular cains with high cross-link density, making it tougher and more durables.
Excellent Features
* Can be powered by electric, gas or diesel, features simple-operated, efficient.
* Superior powder curing due to very even temperature
* Suitable batch processing with high efficiency
* Pre-assembled, Test Run and Data Logged
* Size can be customzied as requests.
|
Powder coating room configuration
|
|
|
|
Name
|
Details
|
|
|
Entrance door
|
Powder coating surface aluminum alloy binding framework (Thickness：1.8mm) ,
2 sets side hung door (One at front one at rear) ,each one size is：800*1200mm(W*H)
|
|
|
Air fan
|
One set motor air fan on the top of the roof for air circulate.
|
|
|
Wall panel
|
100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet.
|
|
|
Roof
|
100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet.
|
|
|
Floor
|
100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet, with anti-slide checkered plate.
|
|
|
Heating system
|
Be equipped with 48pcs infrared lamps. The operating temperature can reach 250℃.
|
|
|
Control box
|
Export type. Microcomputer controlling system, which can program all the functions in each phase of every cycle work. Including adjusting the parameters of the time, temperature, and main circuit has multiprotection, to control the light, time, spraying, temperature, baking, failure indicator, and emergency stopand so on. Reasonbale structure and stable performance.
|
|
Details Images
Metal powder coating oven Configurations
1) Powder coat ovens are constructed from high quality components based on ENSHINE over 10 years experience and latest technology.
2) PLC panel provides easy and reliable working, allows to set the required temperature and heating time precisely.
3). The fan installed on the top circles hot air through the oven enclosure evenly, ensuring high quality curing effect.
4). Material: Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, always keeps the chamber warm.
1) Powder coat ovens are constructed from high quality components based on ENSHINE over 10 years experience and latest technology.
2) PLC panel provides easy and reliable working, allows to set the required temperature and heating time precisely.
3). The fan installed on the top circles hot air through the oven enclosure evenly, ensuring high quality curing effect.
4). Material: Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, always keeps the chamber warm.
