Quick Details
-
Print Dimension:
-
2000*3000mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Dimensions(L*W*H):
-
4.03*4.07*1.5m
-
Weight:
-
1900 KG
-
Ink Type:
-
UV Curable Ink
-
Marketing Type:
-
New Product
-
Product Name:
-
Ntek Digital 3D Glass Ceramic Tile Acrylic Wood Metal Printing Machine
-
Keyword:
-
2030 uv flatbed printer
-
Print Head:
-
Ricoh Gen5
-
Color:
-
CMYKW, LC LM Varnish optional
-
Print Speed:
-
15-30 sqm/h
-
Lamp:
-
LED UV Lamp
-
Printing Material:
-
Flat Materials
-
Application:
-
Indoor Outdoor Advertisement
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Digital Printer
Quick Details
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
110V/220V
-
Print Dimension:
-
2000*3000mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Dimensions(L*W*H):
-
4.03*4.07*1.5m
-
Weight:
-
1900 KG
-
Ink Type:
-
UV Curable Ink
-
Marketing Type:
-
New Product
-
Product Name:
-
Ntek Digital 3D Glass Ceramic Tile Acrylic Wood Metal Printing Machine
-
Keyword:
-
2030 uv flatbed printer
-
Print Head:
-
Ricoh Gen5
-
Color:
-
CMYKW, LC LM Varnish optional
-
Print Speed:
-
15-30 sqm/h
-
Lamp:
-
LED UV Lamp
-
Printing Material:
-
Flat Materials
-
Application:
-
Indoor Outdoor Advertisement
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Digital Printer
Product Description

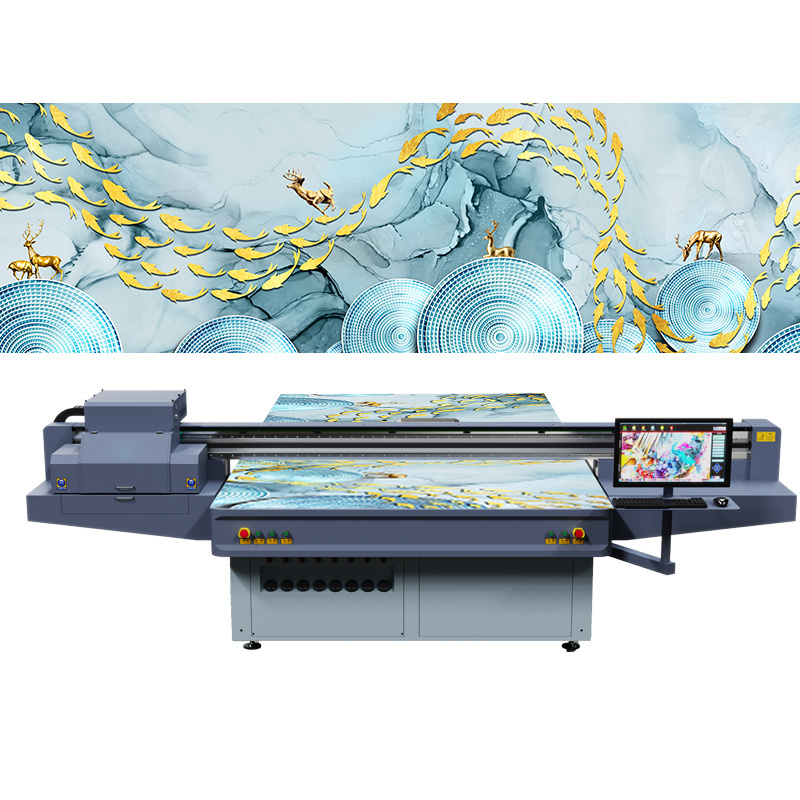

Ntek Digital 3D Glass Ceramic Tile Acrylic Wood Metal Printing Machine 2030 UV Flatbed Printer
UV flatbed printer is widly used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
panel, aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated
cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.
Product Specification
|
Product Name & Model
|
UV Flatbed Printer YC2030L
|
|
Printhead Technology
|
Drop-on demand piezo eletric
|
|
Printhead Control
|
Printhead voltage is software adjustable
|
|
Printhead Type
|
Ricoh Gen5
|
|
Printhead Number
|
2/3/4/5/8
|
|
Ink Characteristics
|
UV Curing Ink
|
|
Ink Reservoirs
|
Refillable on the fly while printing/2500ml per color
|
|
LED UV Lamp
|
More than 20000-hours life
|
|
Color Control
|
ICC based color, curves and density adjustment
|
|
Printhead Arrangement
|
CMYKW Vanish optional 15-30sqm/h
|
|
Printhead Cleaning System
|
Automatic Cleaning System, Automatic Dry-preventing System
|
|
Guide Rail
|
Taiwan HIWIN
|
|
Working Table
|
Vacuum Sucking
|
|
Printing Size
|
2000*3000mm
|
|
Print Interface
|
USB2.0
|
|
Media Thickness
|
0-100mm, higher can be customized
|
|
Print Resolution
|
300*900dpi, 600*600dpi, 600*900dpi, 600*1200dpi
|
|
Life of Printed Image
|
3 years (outdoor),10years (indoor)
|
|
File Format
|
TIFF, JPEG, Postscript, EPS, PDF etc.
|
|
RIP Software
|
UltraPrint/ Photoprint
|
|
Power Supply
|
220V 50/ 60Hz (10%)
|
|
Power
|
1100W
|
|
Operation Environment
|
Temperature 20 to 30℃,Humidity40% to 60%
|
|
Machine Dimension
|
4.03*4.07*1.5m
|
|
Packing Dimension
|
4.31*0.8*1.14m, 4.3*2.26*1.27m
|
|
Weight
|
1900kg
|
|
Warranty
|
13 months exclude the consumables
|
Details Images
Ricoh G5 Print Head
Adopting gray level G5/G6 (Ricoh) stainless
steel internal heating industry head which
has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
High Precision Screw Rod
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
Automatic Anti-collision Sensor
The safety anti-crash sensor of our large format uv flatbed printer can detect the media circumstance beforehand and protect the print heads from a crush hazard. After that, you can resume printer, which will help you save media.
The printer automatically measure with senses distance nozzle and media, which eliminate the procedure that we measure thickness by ourselves.
Automatic anti-static design to avoid dusk ink drops flying, which reduce the ink over spray caused by static, improve the print quality on some substrate.
Registration pin can be equiped with vacuum table that help to keep object in place easily at the zero position.
Printing Samples
