Quick Details
-
Brand Name:
-
JUMPER
-
Model Number:
-
JPD-800B
-
Certificate:
-
CE
-
parameter:
-
SPO2,NIBP ,ECG ,RESP,TEMP ,PR
-
Options:
-
ETCO2,IBP,Touch screen ,printer
-
Suitbale for:
-
adult ,pediatrics ,neonatal ,veterinary
-
Display:
-
12.1 inch TFT color display
-
Type:
-
multi-parameter patient monitor
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUMPER
-
Model Number:
-
JPD-800B
-
Certificate:
-
CE
-
parameter:
-
SPO2,NIBP ,ECG ,RESP,TEMP ,PR
-
Options:
-
ETCO2,IBP,Touch screen ,printer
-
Suitbale for:
-
adult ,pediatrics ,neonatal ,veterinary
-
Display:
-
12.1 inch TFT color display
-
Type:
-
multi-parameter patient monitor

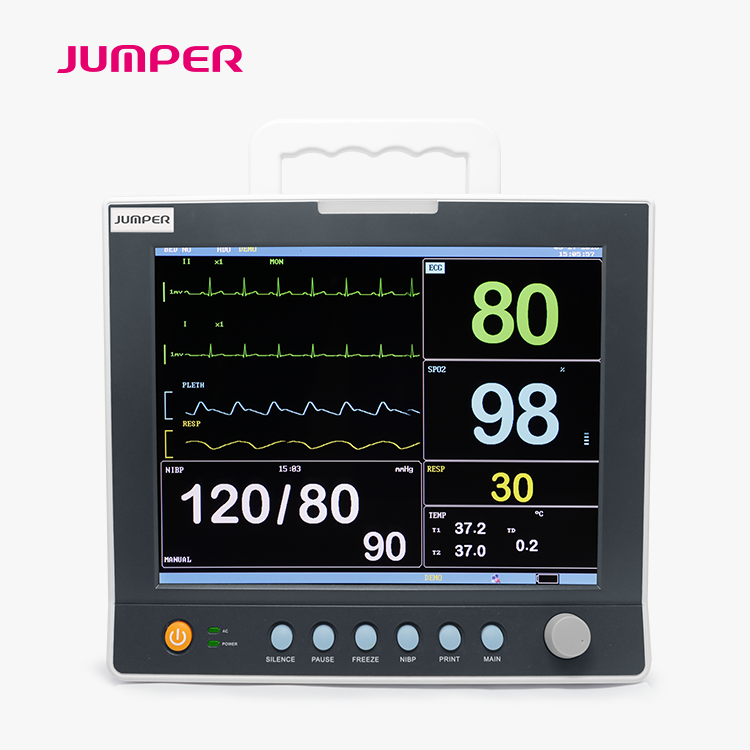

12.1inch hospital use multi parameter patient monitor ambulance equipment for sale
12" color TFT display, up to 12 waveforms
One level menu, easy to use
Parameters including ECG/RESP, SpO2 , NIBP, TEMP, Pulse Rate and IBP(optional)
Maximum 720 hour graphic and tabular trends of all parameters
Built-in recorder and battery
Suitable for adult, pediatric and neonatal patient
Arrhythmia analysis, ST calculation, Pace analysis
Anti-ESU, anti- defibrillator
Standard network interface, can connect to Central monitor system
Optinal: recorder, dual IBP, CO2, IoC
Specifications:
ECG
*lead mode;I,II,III,AVR,AVL,AVF,V
*Gain:X0.25,X0.5,X1,X2
*Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal)
Resolution:1 BPM
Accuracy:+-1%
* ST measurement Range:-2.0-+2.0mV
Accuracy:+-10%
*Pacemaker:Yes
*Sweep Speed:12.5 mm/s,25mm/s,50mm/s
*Bandwidth:Diagnostic:0.05--130Hz
Monitor: 0.5--40Hz
Surgery: 1-20Hz
SPO2
*Measure Range:0-100%
*Resolution:1%
*Accuracy:2%(70-100%)
*Pulse Rate:20-250BPM
*Resolution:1BPM
*Accuracy:+-3BPM
RESP:
*Measure Range:0-150BrPM
*Resolution:1BrPM
*Accuracy:+-2%
Temp:
*Measure Range:0-50C
*Resolution:0.1C
*Accuracy:+-0.1C
NIBP:
*Work mode:Manual,Automatic,Continuous
*Unit:mmHg,Kpa
*Measure Range:
Adult: SYS: 40-280mmHg
DIA: 10-225mmHg
MEAN:20-240mmHg
Pediatric:
SYS:40-220mmHg
DIA: 10-160mmHg
MEAN:20-170mmHg
Neonatal:
SYS:40-135mmHg
DIA:10-100mmHg
MEAN:20-110mmHg
*Resolution:1mmHg
*Accuracy:+-5mmHg
Standard Configuration
| Packing List | |||
| Equipment:Muti-parameter Patient Monitor Type:JPD-800B 12.1” | |||
| Item No. | Items | Quantity/untis | Note |
| 1 | Patient Monitor Main Unit | 1 unit | |
| 2 | 5 Lead ECG Lead Wire Set | 1set | |
| 3 | Adult Blood Pressure Cuff | 1pcs | |
| 4 | Blood Pressure Extention tube | 1set | |
| 5 | Adult Finger Blood Oxygen proble | 1unit | |
| 6 | Surface Temperature Probe | 1unit | |
| 7 | Disposable Electrodes | 5pcs | |
| 8 | Fuse | 2pcs | |
| 9 | Power Cable | 1pcs | |
| 10 | lithium battery | 1pcs | |
| 11 | Ground Lead | 1pcs | |
| 12 | Operation Manual | 1set | |
