Quick Details
-
Exported:
-
More 80 countries
-
Accuracy:
-
High
-
Quality:
-
World-class
-
Price:
-
Competitive
-
Installation:
-
Easy
-
Application:
-
Widely
-
Technology:
-
Advanced
-
Operation:
-
Easy
Quick Details
-
Place of Origin:
-
China
-
Certificate:
-
ISO and CE
-
Experience:
-
20 years
-
Exported:
-
More 80 countries
-
Accuracy:
-
High
-
Quality:
-
World-class
-
Price:
-
Competitive
-
Installation:
-
Easy
-
Application:
-
Widely
-
Technology:
-
Advanced
-
Operation:
-
Easy

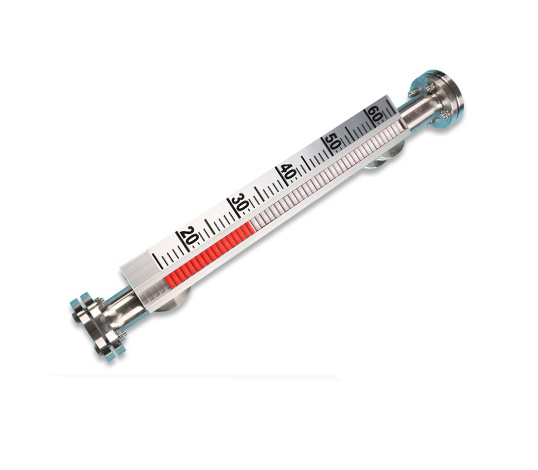

CX-MLM Magnetic level meter
Advantage:
1. easy to read
2. red and white corol
3. top or side mounted
4. top and low alarm
Type choosing and technical data:
|
Type |
Wet Material |
Measuring Range (mm) |
Data of liquid |
|||
|
Temp |
Pressure
|
Density
|
Viscosity
|
|||
|
Standard |
304 |
300-8000 |
-20~150 |
0-2.45 |
0.5-2 |
<=0.04 |
|
H-pressure |
300-8000 |
-20~150 |
2.45-9.6 |
0.5-2 |
<=0.04 |
|
|
H-temp |
300-8000 |
-20~350 |
2.45-9.6 |
0.5-2 |
<=0.04 |
|
|
Low-tem |
300-3500 |
>-40 |
0-2.45 |
0.5-2 |
<=0.04 |
|
|
LPG |
300-15000 |
-20~150 |
0-2.45 |
0.45-0.7 |
<=0.05 |
|
|
Corrosio-proof |
316L |
300-8000 |
-20~150 |
0-2.45 |
0.5-2 |
<=0.04 |
|
Corrrossion-poof |
PP |
300-5000 |
20~100 |
0-0.6 |
0.5-2 |
<=0.04 |
|
Corrrossion-poof |
U-PVC |
300-5000 |
20~60 |
0-0.5 |
0.5-2 |
<=0.04 |
|
Corrrossion-poof |
ABS. |
300-5000 |
-20~120 |
0-0.6 |
0.5-2 |
<=0.04 |
|
Corrrossion-poof |
316 pipe PP liner |
300-15000 |
-20~100 |
0-1.0 |
0.5-2 |
<=0.04 |
|
Corrrossion-poof |
PE |
300-5000 |
20~40 |
0-0.6 |
0.5-2 |
<=0.04 |
|
warming type |
304 |
300-15000 |
-20~150 |
0-2.45 |
0.5-2 |
<=0.05 |
|
H-viscosity |
304 |
300-15000 |
-20~150 |
0-2.45 |
0.5-2 |
<=0.05 |
|
sanitary |
304. |
300-15000 |
-.20~150 |
0-1.6 |
0.5-2 |
<=0.05. |
Model selection:
|
CX- |
Shanghai Cixi |
|
MLM- |
Magnetic level meter |
|
Range (M) |
1,2,3 |
|
Material |
M1-SS304 |
|
M2-SS316L |
|
|
M3-UPVC |
|
|
M4-UPP |
|
|
M5-PTFE |
|
|
Output |
4 - |
|
AH-upper alarm |
|
|
AL-lower alarm |
|
|
AHL-upper and lower alarm |
|
|
Installation |
S-side-mounted |
|
T-Top-mounted |
|
|
B-Bottom-mounted |
|
|
Sensor temperature |
N-10-200 Celsius degree |
|
H-High temperature-10-350 |
Exhibition photos:
Certificat ion
customers
Payment term
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service
1. Warranty: The warranty period is 12 months starting from the shipping date
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality
3. For on-site services not arising from manufacturing quality, we shall charge a certain ser After-sales service vice fee at our discretion based on actual charges incurred such as travel exp
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
