Product Specification
|

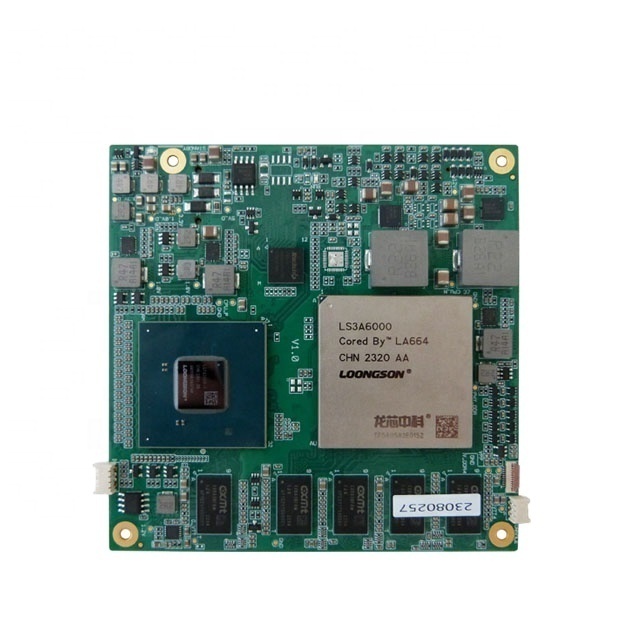

SMLS_3A7A_HI_OV
|
|
Dimensions
|
95x95mm
|
|
Memory
|
Onboard DDR4 8GB
|
|
Design specifications
|
referring to the PICMG COM Express Type6 pin definition
|
|
Package
|
Static Electricity Bag+foam+carton
|
Product Features
|
Item
|
|
Description
|
|
|
Processor
|
CPU
|
Loongson quad-core 3A6000 processor
|
|
|
|
Clock Frequency
|
Default clock frequency of 2.5GHz (Subject to original factory testing)
|
|
|
Chipset
|
Bridge Chip
|
Loongson 7A2000, integrated with independent GPU, DDR4 2GB graphics memory
|
|
|
Memory
|
Type
|
Onboard DDR4
|
|
|
|
Capacity
|
8GB
|
|
|
Trusted Root
|
Trusted SE
|
Reserved support
|
|
|
Debug
|
Debug Serial Port Pin Connector
|
1 onboard CPU RS232 debug serial port
1 onboard SE RS232 debug serial port |
|
|
Expansion Interfaces
|
PCIE
|
Supports 32 PCIe channels, with software-configurable default allocation as follows:
G0: Standard 2 lanes of PCI-E 3.0x8 H: Standard 2 lanes of PCI-E x4, optional 1 lane of PCI-E x8 F1: Standard 1 lane of PCI-E 3.0x4, optional 2 lanes of PCI-E x1 F0: Standard 4 lanes of PCI-E 2.0x1, optional 1 lane of PCI-E x4 |
|
|
|
USB
|
8 USB 2.0 interfaces, 4 USB 3.0 interfaces
|
|
|
|
SATA
|
3 SATA 3.0 interfaces
|
|
|
|
Ethernet
|
2 10/100/1000Mb adaptive Gigabit Ethernet ports (GBe1 temporarily unavailable)
|
|
|
|
Audio
|
1 HDA
|
|
|
|
Display
|
1 HDMI, 1 VGA, duplicate screen mode
1 24-bit LVDS interface, resolution 1920*1080 |
|
|
|
LPC
|
1 LPC channel
|
|
|
|
SPI
|
1SPI channel，supports 3 chip selects (peripherals)
|
|
|
|
I²C
|
2I²channels
|
|
|
|
Serial
|
4 7A_uart0/1/2/3 TTL serial ports
|
|
|
|
GPIO
|
4 GPIO inputs, 4 GPIO outputs
|
|
|
Power
|
Type
|
3.0V RTC，5V Standby and 12V Primary
|
|
|
|
Power Consumption
|
Typical module power consumption (TDP 35W)
|
|
|
Physical Parameters
|
Dimensions（W×D）
|
95x95mm
|
|
|
Environmental Adaptability
|
Industrial Grade
|
Operating temperature: -40℃-65℃, 5-95% RH, non-condensing
|
|
|
|
|
Storage temperature: -55℃-80℃, 5-95% RH, non-condensing
|
|
