Quick Details
-
Brand Name:
-
TF
-
Model Number:
-
Lithium Ion
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
About 23.5kg
-
The charging ratio:
-
100A/200A
-
The discharge rate:
-
200A,400A(<3S)
-
Battery type:
-
LiFePO4(LFP)
-
Voltage:
-
48V-384V
-
Nominal Capacity:
-
100ah/200AH
-
Life Cycling (0.5C 25℃):
-
6000 cycles @ 0.5C
-
Warranty:
-
5 Years
-
Operating Voltage [V]:
-
90~112
-
Ah Efficiency [%]:
-
99.5
-
OEM/ODM Service:
-
Warmly Welcomed
-
Delivery Time:
-
15-20 Days
-
IP protection:
-
IP65
Quick Details
-
Storage Type:
-
-10 ~ 50°C
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
TF
-
Model Number:
-
Lithium Ion
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
About 23.5kg
-
The charging ratio:
-
100A/200A
-
The discharge rate:
-
200A,400A(<3S)
-
Battery type:
-
LiFePO4(LFP)
-
Voltage:
-
48V-384V
-
Nominal Capacity:
-
100ah/200AH
-
Life Cycling (0.5C 25℃):
-
6000 cycles @ 0.5C
-
Warranty:
-
5 Years
-
Operating Voltage [V]:
-
90~112
-
Ah Efficiency [%]:
-
99.5
-
OEM/ODM Service:
-
Warmly Welcomed
-
Delivery Time:
-
15-20 Days
-
IP protection:
-
IP65

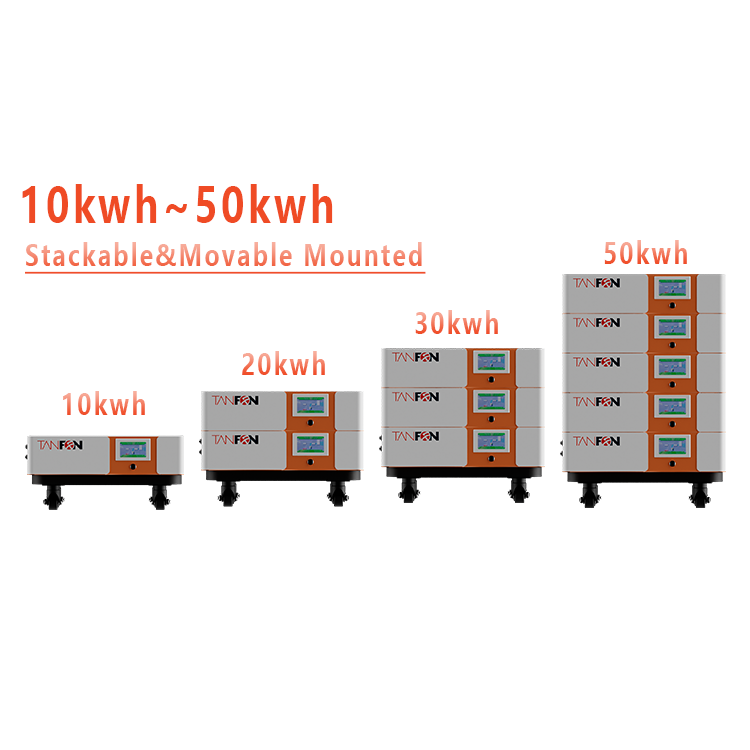

Italia CEI 0-21 stackable 48V 5Kwh 10Kwh Battery Fotovoltaico Agli Ioni Di Litio Lifepo4 Energy Storage Lithium Ion Batteries
|
LiFePO4 Lithium Battery Advantage
|
|
|
|
|
||||
|
Longer Cycle Life:
Offers up to 15 times longer cycle life and 5 times longer float/calendar life than lead acid battery.
Lighter Weight:
About 40% weight of a comparable lead acid battery, save up to 60% in weight.
Quick Charge:
Short charge time compared with lead acid battery.
Low Self-Discharge:
Lower self-discharge compared with lead acid battery, longer storage time without recharging.
Superior Safety:
Multi-protection methods built inside to protect the battery from overcharge, over discharge and short circuit situation
High Efficient:
Higher round-trip energy efficiency of the average (92%) than lead acid battery 80% (discharge from 100% to 0% and back to 100% charged).
|
|
|
|
|
||||
|
Product Power
|
10Kwh
|
15Kwh
|
20Kwh
|
30Kwh
|
|||
|
Nominal voltage
|
51.2V
|
51.2V
|
51.2V
|
51.2V
|
|||
|
Nominal capacity
|
200Ah
|
300Ah
|
400Ah
|
600Ah
|
|||
|
Maximum Charge Current
|
100A
|
150A
|
200A
|
300A
|
|||
|
Continuous Discharge Current
|
160A
|
240A
|
320A
|
480A
|
|||
|
Cell type
|
LiFePO4 Battery ( Lithium iron Phosphate Battery )
|
|
|
|
|||
|
ChargeVoltage
|
57V
|
|
|
|
|||
|
Water Dust Resistance
|
IP50
|
|
|
|
|||
|
Discharge Cut Off Voltage
|
46V
|
|
|
|
|||
|
Communi cate Protocol (optional)
|
RS485/RS232/CAN
|
|
|
|
|||
|
Application connection
|
1 string 1 parallel
|
|
|
|
|||
|
Cycle life
|
>3000 cycles @0.2C 100%D.O.D
|
|
|
|
|||
Battery Performance Test Results
