Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IKW5-A04A
-
Product name:
-
phone hook switch
-
Function:
-
2P2T
-
Rating:
-
DC 60V 0.2A
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Dielectric Intensity:
-
≥1500VAC,1min
-
Electric Life:
-
≥500000Cycles
-
Material:
-
Plactic & Copper
-
temperature:
-
-25+70℃
-
Type:
-
Hook switch
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
0.2A
-
Max. Voltage:
-
60V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IKW5-A04A
-
Product name:
-
phone hook switch
-
Function:
-
2P2T
-
Rating:
-
DC 60V 0.2A
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Dielectric Intensity:
-
≥1500VAC,1min
-
Electric Life:
-
≥500000Cycles
-
Material:
-
Plactic & Copper
-
temperature:
-
-25+70℃
-
Type:
-
Hook switch
Products Description
product description：
· The telephone hook switch is a mechanical single voltage stabilizer composed of a moving contact piece, a tension spring, a pressure rod, a normally closed contact piece, a moving contact piece bracket, etc.
contact structure. In the normal state, the moving contact piece is in contact with the normally closed position. When the external force acts on the A end of the pressure rod, the pressure rod can rotate around the axis of its fulcrum.
Turning a certain angle, the moving shaft on the pressure rod will also move up and down. Whenever the movement switches the critical height H, the moving contact piece of the switch will move under the tension spring.
Switching action will occur under the action. This contact and switching method is characterized by fast and reliable switching, long life, stable contact resistance and starting force.
· The telephone hook switch is a mechanical single voltage stabilizer composed of a moving contact piece, a tension spring, a pressure rod, a normally closed contact piece, a moving contact piece bracket, etc.
contact structure. In the normal state, the moving contact piece is in contact with the normally closed position. When the external force acts on the A end of the pressure rod, the pressure rod can rotate around the axis of its fulcrum.
Turning a certain angle, the moving shaft on the pressure rod will also move up and down. Whenever the movement switches the critical height H, the moving contact piece of the switch will move under the tension spring.
Switching action will occur under the action. This contact and switching method is characterized by fast and reliable switching, long life, stable contact resistance and starting force.
·
Uses: Mainly used for telephones and building intercoms
Product Paramenters
|
Detailed Specification
|
|
|
|
Product Name
|
Telephone Hook Switch
|
|
|
Function
|
2P2T
|
|
|
Rating
|
DC60V 0.2A
|
|
|
Contact Resistance
|
≤50mΩ
|
|
|
Insulation Resistance
|
≥100mΩ
|
|
|
Material
|
Copper and plastic
|
|
|
Dielectric Intensity
|
≥1500VAC,1min
|
|
|
Action
|
Required
|
|
|
Electric Life
|
≥500000Cycles
|
|

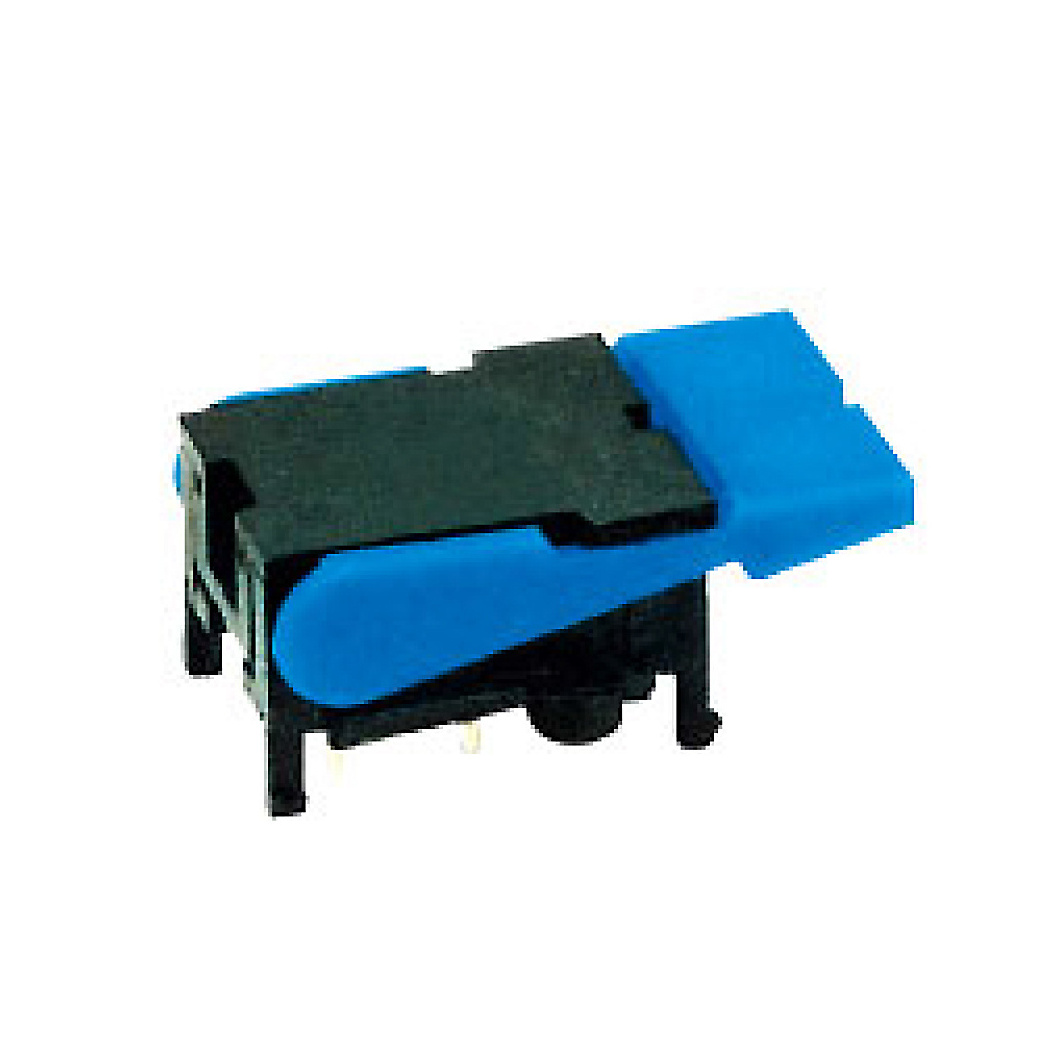

Details Images
