Quick Details
-
Brand Name:
-
Rakinda
-
Image Sensor::
-
752*480
-
Light Source::
-
White Light
-
Symbologies::
-
1D Or QR
-
Communication Protocol::
-
Support TCP / UDP / HTTP
-
Power Input::
-
9-18V
-
Optional function:
-
wifi or BT
-
Operation Temperature::
-
-20℃-60℃
-
Application:
-
Elevator/Gym/Turnstile
Quick Details
-
Frequency:
-
13.56Mhz
-
Protocol:
-
ISO 14443A
-
Place of Origin:
-
China
-
Brand Name:
-
Rakinda
-
Image Sensor::
-
752*480
-
Light Source::
-
White Light
-
Symbologies::
-
1D Or QR
-
Communication Protocol::
-
Support TCP / UDP / HTTP
-
Power Input::
-
9-18V
-
Optional function:
-
wifi or BT
-
Operation Temperature::
-
-20℃-60℃
-
Application:
-
Elevator/Gym/Turnstile

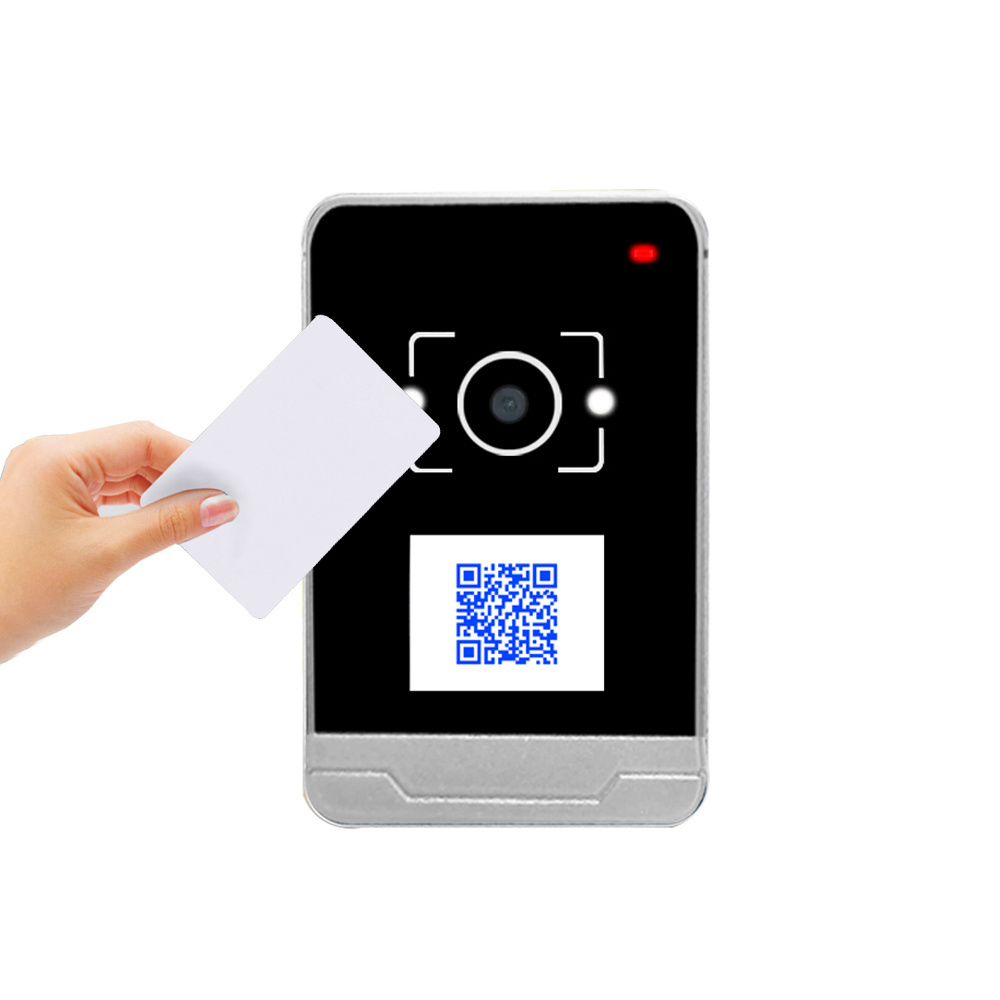

RD009 TCP/HTTP IC ID QR Code Scanner Access Control Reader 4G With Screen QR Wiegand For Turnstile Or Elevator
Description for RD009 QR and Mifared card reader Access control Device:
RD009 is a four-in-one product with network access control + QR code scanning head + RFID card reader + TFT true color display,
with its own voice amplifier and speaker.
And it support TCP/HTTP, relay controller,
very suitable for turnstile or elevator or gym project,
Once you scan the barcode or swipe the IC card well, then you can enter or pass the gate. Free SDK will be provided.
Smart Card Access Control Features:
* Can customize the voice, and can expand the TTS voice function
* Encrypted QR code that complies with the agreed rules can open the door/gate directly when it is not connected to the Internet.
* Equipment capacity: the card capacity is 85,000 cards and 100,000 records, the number of QR codes is 100,000 times.
* It can be expanded and installed with BT module, LORA module, RS232/RS485 module functions
Contact me:
Tel/Whatsapp : +86-15173128923
Skype: live:8278c52ce2811302
Wechat: may050123
RD009 4G QR Code Access Control Devices Parameters:
| Image Sensor | 752X480 | |
| Light Source | White LED | |
| Symbologies | 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code | |
| 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. | ||
| Reading Distance | 10-55mm | |
| Scan Angle | 360° Full Angle | |
| Power Input | 9-18VDC | |
| Working Current | < 600mA | |
| Can read like ISO14443Aor ISO14443B card serial number | Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc. | |
| Barcode or 2D code input | Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules | |
| Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI | |
| Communication Protocol | Support TCP / UDP / HTTP | |
| Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice | |
| Device input | 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input | |
| Equipment output | 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc. | |
| Wiegand output | Wiegand 26/34 output | |
| Installation size | 120mm *76mm * 25mm (L*W*H), Compatible with standard 86 box | |
FAQ:
Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.
Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly
according to the contact info. We will send you proper link directly.
Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T
Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.
Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.
Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.
Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.
Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,
expliantion by email or call in time.
Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
