Quick Details
-
Dimensions(L*W*H):
-
20000*5150*4300mm
-
Weight:
-
48000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
ARC 6 Colors Gravure Printing Machine for Film
-
Keyword:
-
Gravure Printing Machine
-
Plate Type:
-
Gravure Cylinder
-
Printing Material:
-
PET 12-60μm/ BOPP 15-60μm
-
Plate Cylinder Diameter:
-
120mm-300mm
-
Diameter Of Unwind/Rewind:
-
800mm
-
Dry Method:
-
Steam/ Oil/ Gas/ Electric, etc.
-
Max. Mechanical Speed:
-
200-400m/min
-
Certification:
-
ISO9001:2000
Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
Yuncheng
-
Voltage:
-
380V
-
Dimensions(L*W*H):
-
20000*5150*4300mm
-
Weight:
-
48000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
ARC 6 Colors Gravure Printing Machine for Film
-
Keyword:
-
Gravure Printing Machine
-
Plate Type:
-
Gravure Cylinder
-
Printing Material:
-
PET 12-60μm/ BOPP 15-60μm
-
Plate Cylinder Diameter:
-
120mm-300mm
-
Diameter Of Unwind/Rewind:
-
800mm
-
Dry Method:
-
Steam/ Oil/ Gas/ Electric, etc.
-
Max. Mechanical Speed:
-
200-400m/min
-
Certification:
-
ISO9001:2000

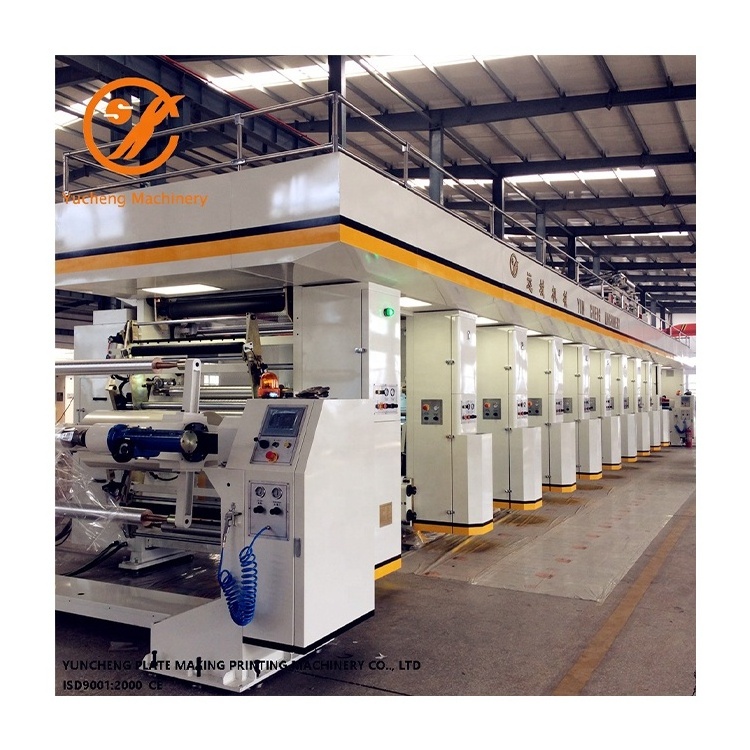

Automatic Color Register 6 7 8 9 Colors Gravure Printing Machine for Plastic Film
Product Description
Product Description of Automatic Color Register 6 7 8 9 Colors Gravure Printing Machine for Plastic Film
Rotogravure printing machine is suit for the cellophane paper, BOPP, PET, PVC, PE, aluminum foil, paper and so on, multicolor progression printing possesses of choiceness printing performance and roll material. It is used in all kinds of top grade printing abroad.
| Main Technical Data of Automatic Color Register 6 7 8 9 Colors Gravure Printing Machine for Plastic Film | |
| Printing Sequence | From Left to Right |
| No. of Printing Color | 6 Colors |
| Max. Web Width | 1250mm |
| Max. Machine Speed | 200m/min-400m/min |
| Plate Cylinder Diameter | 120-300mm |
| Register Accuracy | Longitudinal+/-0.1mm(auto.); Horizontal+/-0.1mm(Auto.) |
| Unwind/Rewind Diameter | 800mm |
| Tension Range | 3-30Kg (Full Load) |
| Tension Accuracy |
+/-0.5Kg |
| Paper Core Diameter | 76mm(I.D.)x92mm(O.D.) |
| Air Pressure | 0.8Mpa |
| Printing Impression | 500Kg |
| Dry Method | Electricity, Gas |
| Cooling Water | Approx. 8T/h (2Kg/cm3) |
| Main Motor Power | 22-54Kw |
| Printing Material | PET 12-60μm/ BOPP 15-60μm |
