- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TPM
-
Dimensions(L*W*H):
-
600*500*1050mm
-
Weight:
-
50 KG, 50kg
-
Certification:
-
CE
-
Model:
-
TS-D100
-
Printing color:
-
1 color
-
Max printing size:
-
200*150mm
-
Max screen frame size:
-
230*200mm
-
Printing speed:
-
1300pcs/hr
-
Air pressure:
-
6 bar
-
Rated Voltage:
-
220V/50Hz
-
Dimension:
-
600*500*1050mm
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
220V/50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TPM
-
Dimensions(L*W*H):
-
600*500*1050mm
-
Weight:
-
50 KG, 50kg
-
Certification:
-
CE
-
Model:
-
TS-D100
-
Printing color:
-
1 color
-
Max printing size:
-
200*150mm
-
Max screen frame size:
-
230*200mm
-
Printing speed:
-
1300pcs/hr
-
Air pressure:
-
6 bar
-
Rated Voltage:
-
220V/50Hz
-
Dimension:
-
600*500*1050mm
Product Description

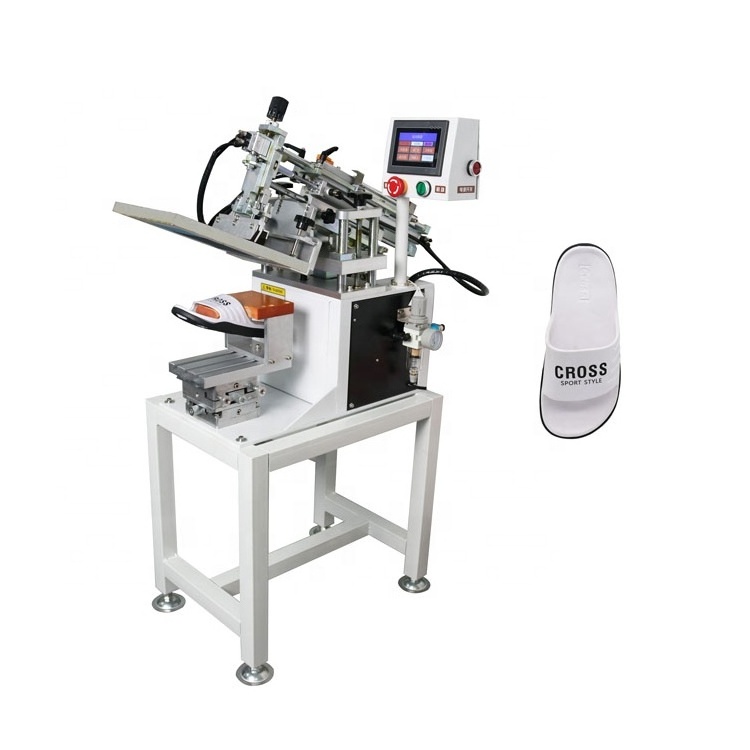

Semi-auto mini desktop small size shoes insole silk screen printer printing machine
Feature
1. computer control and operate all of functions of machine, high automation and easy operation.
2. it can be a round and conical printing function.
3. automatically scraping ink, backing ink, and worktable lift and down, it can not only operate easily, but also ensure printingquality stable.
4. the printing stroke and speed can be adjustable to meet different printing requirements.
5. self-balancing of the blade, to ensure printing pressure balance
6. worktable and silk frame can all be lightly adjusted in back and front, left and right ,high printing precision it is also
adjusted easily and fast.
7. part of the scraper can be independently lifted, replacement and cleaning easy and convenient network box.
2. it can be a round and conical printing function.
3. automatically scraping ink, backing ink, and worktable lift and down, it can not only operate easily, but also ensure printingquality stable.
4. the printing stroke and speed can be adjustable to meet different printing requirements.
5. self-balancing of the blade, to ensure printing pressure balance
6. worktable and silk frame can all be lightly adjusted in back and front, left and right ,high printing precision it is also
adjusted easily and fast.
7. part of the scraper can be independently lifted, replacement and cleaning easy and convenient network box.
Specification
|
Model
|
TS-D100
|
|
Worktable Size
|
120x180mm
|
|
Max. Printing Size
|
230x160mm
|
|
Max. Substrate Height
|
150mm
|
|
Max. Printing Speed
|
1300pcs/hr
|
|
Air Pressure
|
6bar
|
|
Rated Voltage
|
220V 50Hz
|
|
Power
|
0.04kw
|
|
Dimension(L×W×H)
|
600x500x1050mm
|
|
Weight
|
50kg
|
