1.Small beam size from 5um 2.Compact and light weight
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
0.01 KG
-
wavelength:
-
635nm 650nm
-
housing material:
-
alunimium anodized or brass
-
Package type:
-
each module into static free bag
-
beam type:
-
dot, line, cross
-
Material:
-
brass and gold-plated
-
Certificated:
-
certified and ISO9001
-
Delivery Detail:
-
10-20day depending on the QTY
-
Product name:
-

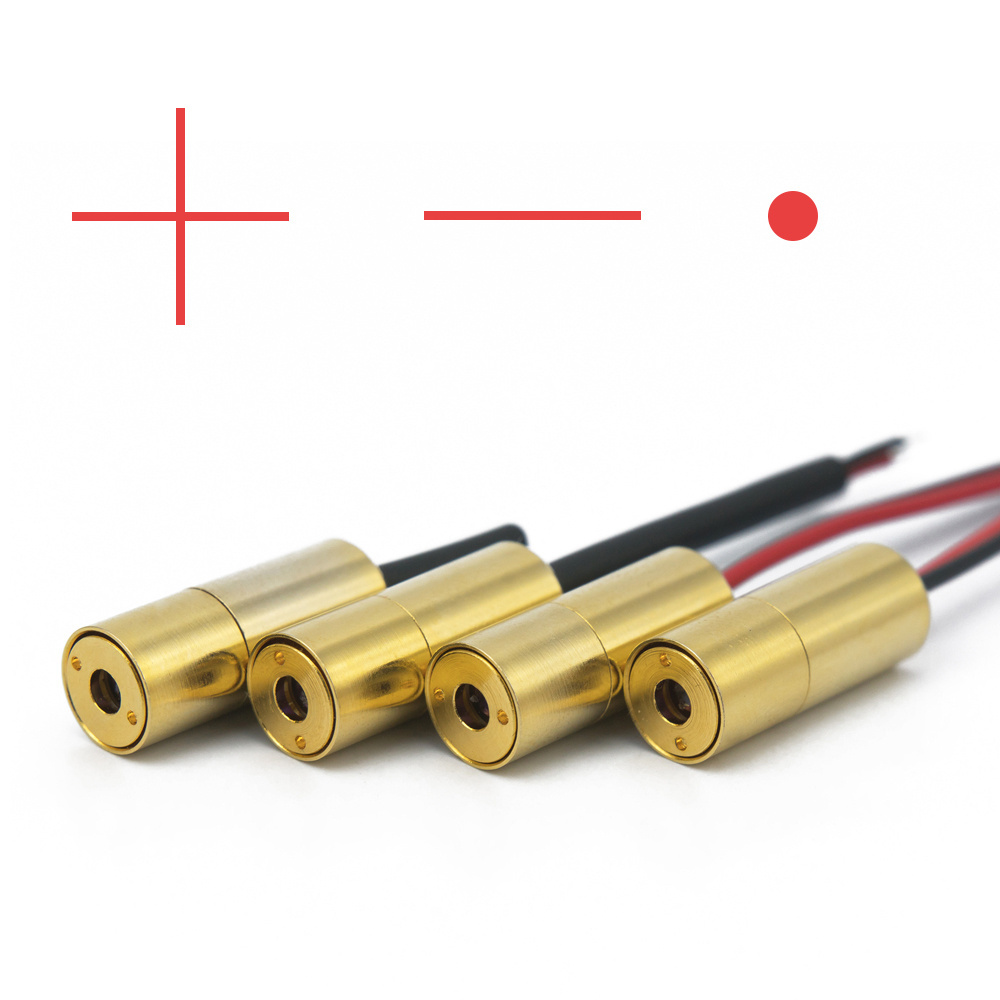

650nm 635nm 5mW Dot Red Laser Module
-
Output power:
-
5mw
-
Size:
-
customizable
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Component
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.01 KG
-
wavelength:
-
635nm 650nm
-
housing material:
-
alunimium anodized or brass
-
Package type:
-
each module into static free bag
-
beam type:
-
dot, line, cross
-
Material:
-
brass and gold-plated
-
Certificated:
-
certified and ISO9001
-
Delivery Detail:
-
10-20day depending on the QTY
-
Product name:
-
650nm 635nm 5mW Dot Red Laser Module
-
Output power:
-
5mw
-
Size:
-
customizable
|
Specification
|
Industrial Diode Laser Module
|
|
|
|
|
|
|
||||||
|
Wavelength
|
635nm
|
|
650nm
|
|
|
|
|
||||||
|
Output Power
|
≤5mW
|
|
|
|
|
|
|
||||||
|
CDRH Class
|
I,II,IIIa
|
|
|
|
|
|
|
||||||
|
Aperture
|
Ø1.0mm,Ø1.5mm,Ø2.0mm,Ø2.4mm,Ø3.0mm
|
|
|
|
|
|
|
||||||
|
Divergence
|
0.6mrad,0.8mrad,1.0mrad,1.5mrad,2.0mrad,3.0mrad
|
|
|
|
|
|
|
||||||
|
Beam Size
|
5x10mm,6x12mm,8x16mm,10x20mm(@10m)
|
|
|
|
|
|
|
||||||
|
Laser Drive Modes
|
CW,Analog,Modulation,Digital Mdulation
|
|
|
|
|
|
|
||||||
|
Lens
|
Optical Glass Lens
|
|
|
|
|
|
|
||||||
|
Input Voltage
|
3.0to5.0v
|
|
|
|
|
|
|
||||||
|
Operating Temperature
|
-10℃~50℃
|
|
|
|
|
|
|
||||||
|
Storage Temperature
|
-40℃~80℃
|
|
|
|
|
|
|
||||||
|
MTBF
|
>8,000hours
|
|
|
|
|
|
|
||||||
3.Long term stability 4.High reliability
5.High power density 6.Water-resistant IP55~65
Elite offers the ultra-small beam laser diode module,specially designed for high precision instrumrnt and equipment,widely used in
precise positioning and high-precision detection.
precise positioning and high-precision detection.
FAQ
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified.
7. How long is the warranty period?
12 months.
