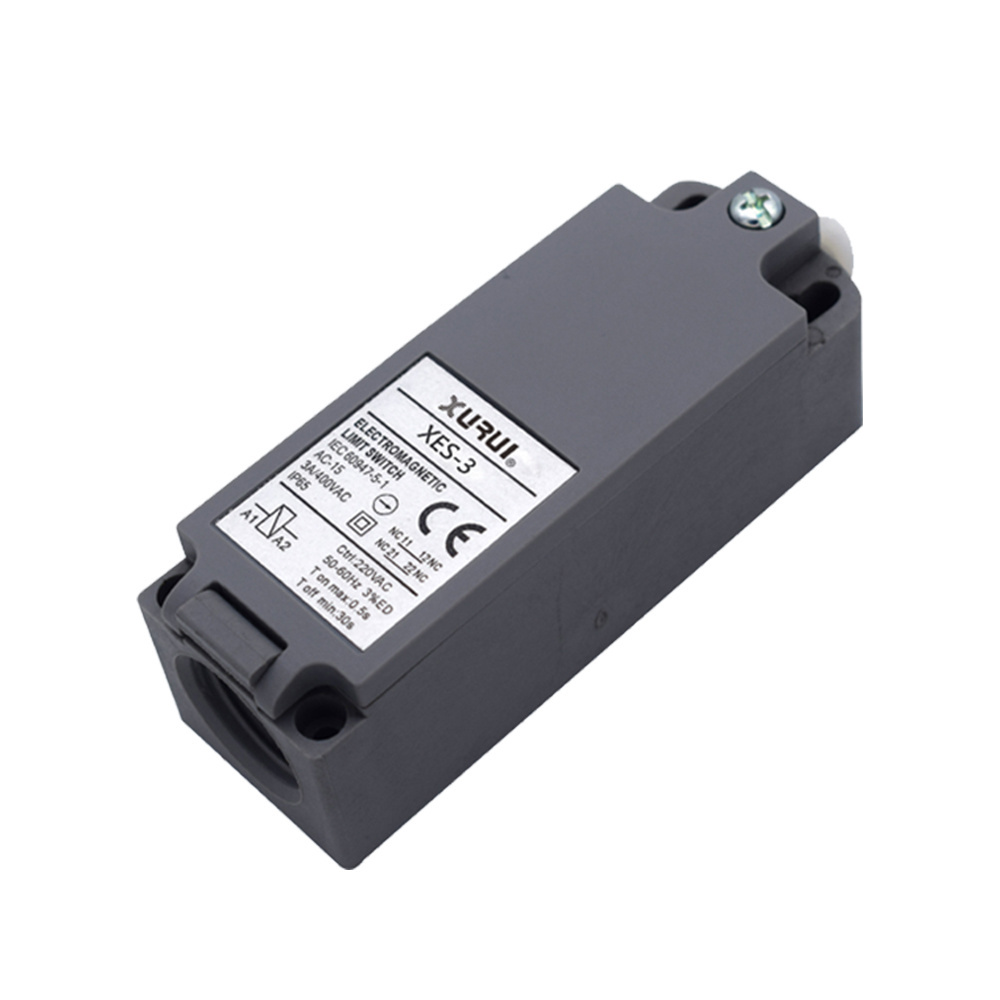

Quick Details
-
Model Number:
-
XES-3
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10-70℃
-
Max. Current:
-
3A
-
Standard:
-
IEC60947-5-1
-
Utilisation category:
-
AC-15
-
Mechanical life:
-
1,000,000 times above
-
Electrical life:
-
100,000 times above
-
Rating:
-
3A 400VAC
-
Insulation resistance:
-
≥100MΩ(DC500V)
-
Contact resistance:
-
≤25mΩ(intial value)
Quick Details
-
Max. Voltage:
-
400VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XES-3
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10-70℃
-
Max. Current:
-
3A
-
Standard:
-
IEC60947-5-1
-
Utilisation category:
-
AC-15
-
Mechanical life:
-
1,000,000 times above
-
Electrical life:
-
100,000 times above
-
Rating:
-
3A 400VAC
-
Insulation resistance:
-
≥100MΩ(DC500V)
-
Contact resistance:
-
≤25mΩ(intial value)
Property & Application
- Economic plastic housing, light weight.
- Preventing oil and water.
- Double way switch, double spring inner switch.
- Mainly used in elevator protection and control.
Model & Meanings
Contact Forms
Specification
| Item | Data | |
| Standards | DIN EN 81, IEC 60947-5-1 | |
| Utilisation Category | AC-15 | |
| Rating | 3A/400VAC | |
| Insulation resistance | ≥100MΩ (DC500V) | |
| Contact resistance | ≤25mΩ (initial value) | |
| Withration Voltage | ≥2000VAC | |
| Life | Electrical | ≥ 100,000 |
| Mechanical | ≥ 1,000,000 | |
| Protection degree | IP65 | |
| Magnet |
220VAC 50-60Hz 3%ED T on max 0.5s, T off min 30s 24VDC 3%ED T on max 0.5s, Toff min 30s |
|
Dimension
Structure
Structure Contrast
Mounting & Maintenance
- The switch can be mounted through the slotted holes using M4 and M3 screws.
- If the assembly is made carefully, no special maintenance is required.
- Due to the use of this switch as a safety device it is recommended to carry out periodical routine checks.
