9 steps
multi elevators dispensing
dishes

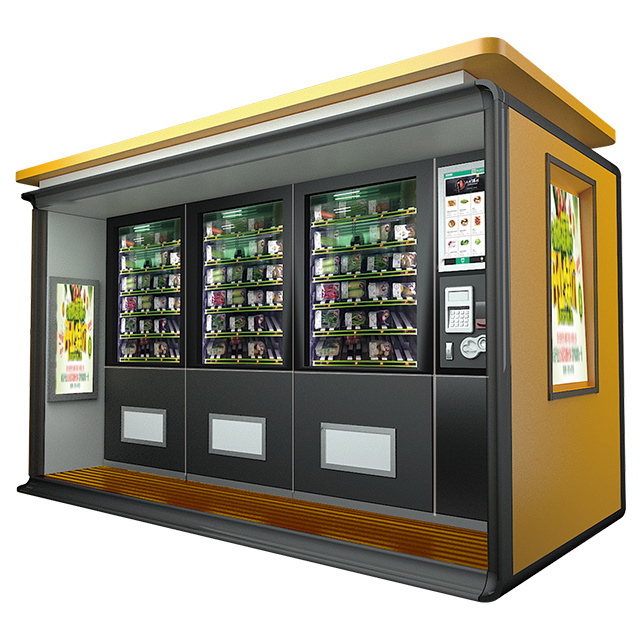

smart kitchen vending machine kiosk
support single cabinet or double design, Single cabinet 9 aisles *6 layers*10 slots,capacity max 600pcs commodities, 60 kinds of commodities can be vending in one single cabinet vending machine.the metal case is made of stainless steel parts and many patented technology parts,high quality machines support 3 years warranty after sale policy.normal temperature version for toys and dry products,fresh cooling refrigeration for snacks and drinks,frozen system for ice cream and frozen foods request.smart elevator and robotic arm elevator is optional for fragile commodities vending.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
9Steps
-
Power:
-
2000W
-
Product name:
-
kitchen vending machine
-
Payment System:
-
cash and cashless system
-
Color:
-
white
-
Application:
-
9Steps android app
-
Capacity:
-
900-1500pcs
-
Certificate:
-
CE FCC ROHS ISO
-
Weight:
-
3080kg
-
Touch screen:
-
21.5inch capacitive
-
Cooling system:
-
R134a MSDS refrigeration option
-
Dispenses:
-
smart elevator option
Quick Details
-
Type:
-
Vending Machines
-
Dimension:
-
L2350*W890*H1935mm
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
9Steps
-
Power:
-
2000W
-
Product name:
-
kitchen vending machine
-
Payment System:
-
cash and cashless system
-
Color:
-
white
-
Application:
-
9Steps android app
-
Capacity:
-
900-1500pcs
-
Certificate:
-
CE FCC ROHS ISO
-
Weight:
-
3080kg
-
Touch screen:
-
21.5inch capacitive
-
Cooling system:
-
R134a MSDS refrigeration option
-
Dispenses:
-
smart elevator option
Product Description
|
Product Name
|
multi elevators dispensing dishes smart kitchen vending machine kiosk
|
|
|
|
Material
|
21.5-55inch touch screen +stainless steel metal case+cash machine/cashless machine/elevator/refrigeration options
|
|
|
|
Package
|
exporting wooden case with pallet,package size 2550*910*2100mm,585kg/pc
|
|
|
|
General Specification
|
Motherboard
|
Android RK3288
|
|
|
|
RAM
|
2G
|
|
|
|
Storage Memory
|
8G
|
|
|
General Specification
|
OS
|
Android /7.1
|
|
|
|
Network
|
Gigabit Network
|
|
|
|
Lane
|
Standard 6 rows * 9columns, 54*10 cargo lanes (adjustable)
|
|
|
|
Slot Capacity
|
About 210pcs-540pcs（adjustable）
|
|
|
|
Payment Method
|
ICT banknotes cash accpeter+ card pos with NFC fucntion
|
|
|
|
Subassembly
|
Cash accepter with bill change fucntion
|
|
|
|
Optional
|
1. Temperature control system: high-efficiency and energy-saving compressor, support timing switch, free control of temperature
2. Printer (optional) 3. Coins and cash modules (optional) 4. Scanner (optional) |
|
|
Panel Specification
|
Screen
|
21.5 Inch touch screen
|
|
|
|
Screen type
|
TFT-LCD
|
|
|
|
Backlight Type
|
WLED
|
|
|
|
Visual Size
|
477mm*269mm（H*V）
|
|
|
|
Resolution
|
1920*1080
|
|
|
|
Contrast
|
3000:1
|
|
|
|
Perspective
|
H:178°, V:178°
|
|
|
|
Brightness
|
250nits（Non touch），225nits（Touch）
|
|
|
|
Touch Technology
|
Capacitance Touch
|
|
|
|
Touch Points
|
10 Points
|
|
|
|
Operating Voltage
|
DC 5v
|
|
|
|
Operating Temperature
|
0°C ~ 40°C, 20% ~ 80% RH.
|
|
|
|
Storage Temperature
|
-20°C~ 60°C, 10% ~ 95% RH
|
|
|
|
Interface Type
|
VGA , HDMI，USB，LAN
|
|
|
|
Processor
|
RK3288 Quad Corel.8G
|
|
|
|
Chipset
|
HZ cortex-A17
|
|
|
|
Extension Interface
|
Support TF Card expansion
|
|
|
|
Display
|
GPU Mail-T764
|
|
|
|
Memory Type
|
Built-in EMMC，Max 64GB Optional
|
|
|
|
USB Interface
|
2*USB HOST,4*USB Port
|
|
|
|
Output
|
HDMI Output ,EDP Output, LVDS Output, Audio Output
|
|
|
|
Timer Switch
|
Support
|
|
|
|
RTC Clock
|
Support
|
|
|
|
Printers
|
Support
|
|
|
|
Scanner
|
Support
|
|
|
|
Camera
|
Support
|
|
|
|
Others
|
USB or MDB port
|
|
Details Images
9 steps professional vending machine app for management and control,five years free,another five years 60usd/pc
customized trays and slots for different products inside
high quality products and professional service is 9 steps 16 years style
Packing&Shipping
exporting wooden case with pallet for LCL containers or by air by courier,exporting carton with pallet for FCL containers by sea
FAQ
Do you support customized design/size/functions/wrap? YES
