Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-16ET2ET1S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
16 Port Gigabit Ethernet Switch 1000Mbps Network
-
Interface:
-
16*RJ45 Ports+2*RJ45 &1*SFP Uplink ports
-
Power Supply:
-
External power supply:AC100-240V 50/60Hz
-
Speed Rate:
-
Full Gigabit
-
Working Voltage:
-
5~16V
-
Operating Temperature:
-
-10℃ ~ 50℃
-
Customzied:
-
OEM/ODM
-
Housing:
-
Metal
-
Color:
-
Black
-
Warranty:
-
3 years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
38Gbps
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-16ET2ET1S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
16 Port Gigabit Ethernet Switch 1000Mbps Network
-
Interface:
-
16*RJ45 Ports+2*RJ45 &1*SFP Uplink ports
-
Power Supply:
-
External power supply:AC100-240V 50/60Hz
-
Speed Rate:
-
Full Gigabit
-
Working Voltage:
-
5~16V
-
Operating Temperature:
-
-10℃ ~ 50℃
-
Customzied:
-
OEM/ODM
-
Housing:
-
Metal
-
Color:
-
Black
-
Warranty:
-
3 years
Product Description

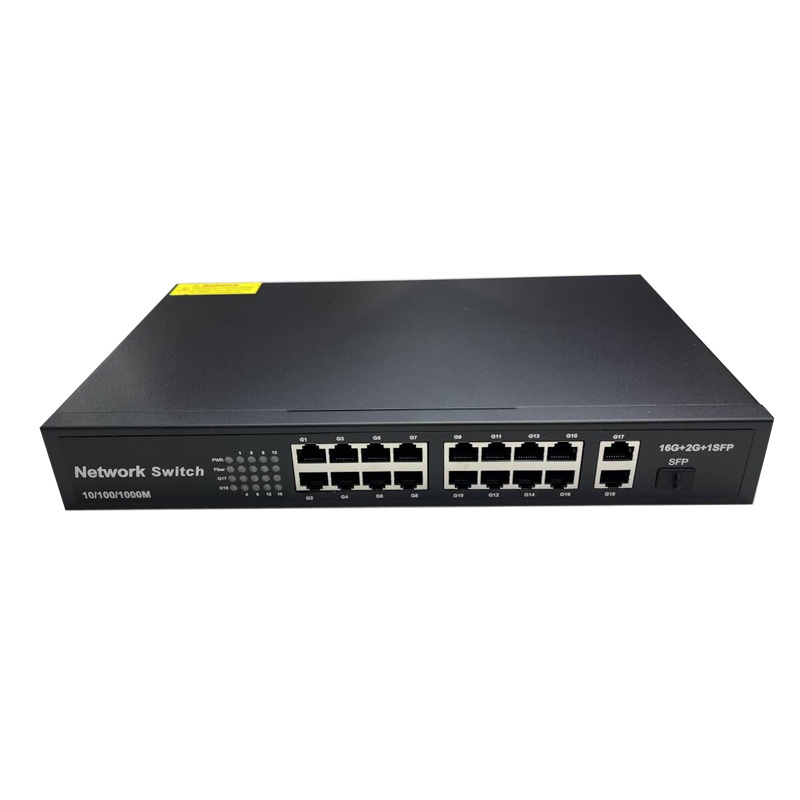

16 Port Gigabit Ethernet Network Switch
The 16-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 16 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
Feature
* 16*Gigabit RJ45 Ports+2*10/100/1000Mbps RJ45 Uplink ports+1*1.25G SFP Uplink port
* Apply to 3、IEEE802.3u、IEEE802.3abstandard
* Ethernet ports support 10/100/1000M adaptive
* Support Auto MDI/MDIX
* Panel indicators to monitor working status and help fault analysis
* Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
* Apply to 3、IEEE802.3u、IEEE802.3abstandard
* Ethernet ports support 10/100/1000M adaptive
* Support Auto MDI/MDIX
* Panel indicators to monitor working status and help fault analysis
* Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
Application Environment
* Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system
integration,etc.
* Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation,
education and other industries
* Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV,videophone and other applications
* Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
* Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system
integration,etc.
* Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation,
education and other industries
* Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV,videophone and other applications
* Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
Specification
|
I/O Interface
|
|
|
|
Power
|
AC Input (100-240V)
|
|
|
Ethernet
|
16* 10/100/1000M RJ45 Ports+2*10/100/1000Mbps RJ45 Uplink ports+1*1.25G SFP Uplink port
|
|
|
Performance
|
|
|
|
Bandwidth
|
38Gbps
|
|
|
Throughput
|
23.8Mpps
|
|
|
Packet Buffer
|
4Mbit
|
|
|
MAC Address
|
8K
|
|
|
Jumbo Frame
|
4Kbytes
|
|
|
Transfer Mode
|
Store and forward
|
|
|
MTBF
|
100000 hours
|
|
|
Standard
|
|
|
|
Network protocol
|
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
|
|
Network Medium
|
10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
|
Certification
|
|
|
|
Security Certificate
|
CE, FCC, RoHS
|
|
|
Environment
|
|
|
|
Working Environment
|
Working Temperature: -10~50°C
Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
|
Physical Specification
|
|
|
|
Structure Size
|
Product Size: 312*185*46mm
Package Size: 410*230*82mm Product Net-Weight: 1.60kg Product Gross-Weight: 1.8kg (With mount ear) |
|
|
Packing Info
|
MEAS: 47*42*47cm
Packing Qty: 12 unit Packing weight：27KG (With mount ear) |
|
|
Power Voltage
|
Power Input Voltage ：AC 100-240 V 12V1A
|
|
|
Power
|
Maximum 12W
|
|
|
Package List
|
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair
|
|
|
LED Indicators
|
PWR (Power indicator), Link (Network Link), LOOP (Loop alarm), 1000M
|
|
|
DIP Switch
|
VLAN：Port Isolation, 1-14 ports are isolated each other, all communicate with uplink port 15/16;
Default：Default mode, Support loop alarm; Extend：Monitor Mode, 1-14 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 15 and port 16 as uplink port； |
|
