Quick Details
-
Voltage:
-
220/230/Customizable
-
Dimension(L*W*H):
-
134x117x97cm+115x50x97cm
-
Application:
-
Woodworking, furniture factory, Farm, Flooring factory
-
Weight (KG):
-
436 KG
-
Power (kW):
-
1500W+2*2200W(3 individal motor)
-
Marketing Type:
-
New Product 2023
-
Product name:
-
5 Functions Combination Woodworking Machine
-
Keyword:
-
Spindle Moulders wood planers panel table saw
-
Color:
-
Customer Actual Requirements
-
After-sales Service Provided:
-
24-hour Online Support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QNR
-
Usage:
-
woodworking
-
Voltage:
-
220/230/Customizable
-
Dimension(L*W*H):
-
134x117x97cm+115x50x97cm
-
Application:
-
Woodworking, furniture factory, Farm, Flooring factory
-
Weight (KG):
-
436 KG
-
Power (kW):
-
1500W+2*2200W(3 individal motor)
-
Marketing Type:
-
New Product 2023
-
Product name:
-
5 Functions Combination Woodworking Machine
-
Keyword:
-
Spindle Moulders wood planers panel table saw
-
Color:
-
Customer Actual Requirements
-
After-sales Service Provided:
-
24-hour Online Support
Products Description

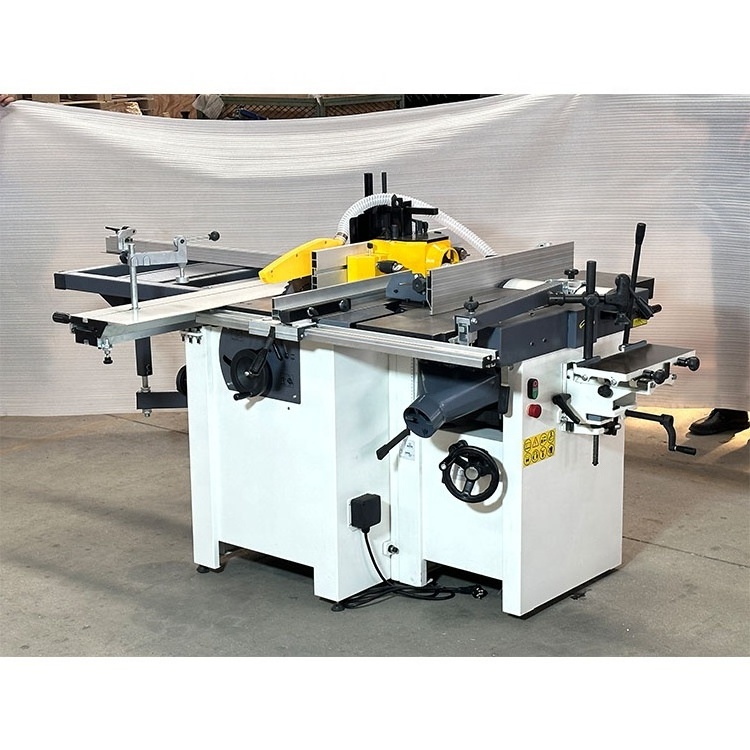

5 Functions Combination Woodworking Machine Spindle Moulders wood planers panel table saw wood saw machines
|
Model
|
W15-CM10H
|
|
|
Motors
|
1500W + 2x 2200w (3 individal motors)
|
|
|
Panel saw:
|
|
|
|
Table size
|
980*480mm
|
|
|
Sliding beam
|
1300*238mm
|
|
|
Blade size
|
254*30mm
|
|
|
Cutting capacity
|
80mm@90°，54mm@45°
|
|
|
Blade speed
|
4000rpm
|
|
|
Planer thicknesser:
|
|
|
|
Table size
|
1130x260mm
|
|
|
Planer width
|
260mm
|
|
|
Blade speed
|
5500rpm
|
|
|
Blade size:
|
70mm, 3knives
|
|
|
Max cut depth of planer
|
3mm
|
|
|
Max cut depth of thicknesser
|
4mm
|
|
|
Thicknesser feed speed
|
5.5m/min
|
|
|
Spindle moulder:
|
|
|
|
Table size
|
980x480mm
|
|
|
Spindle size
|
30mm
|
|
|
Spindle travel
|
110mm
|
|
|
Max tooling diameter
|
163mm
|
|
|
spindle speed
|
4 speeds 1400/4000/6000/9000rpm
|
|
|
GW/NW
|
256/226kg + 180/150kg
|
|
|
Packing size
|
134x117x97cm + 115x50x97cm
|
|
Advantage:
Planer thicknesser :
1.
bigger motor 2200w.
2.
simply slip from planer function to thicknesser function;
3.
smart table structure to keep same parrallism when planer table lifting;
4.
Optional mortising kit, new and large.
Panel saw:
1.bigger motor 2200w;
2.
Panel saw blade near the 238mm aluminum beam;
3.
strong telescopic amr to take the weight of large panel;
4.
Aluminum beam travel >1250mm;
5.
foldable rip fence as same as panel saw W1-PS10L;
6.
smooth and strong aluminum guide as same as our 10" table saw W1-TS10B.
Spindle moulder:
1.
bigger motor power 1500w;
2.
Larger tooling diameter 163mm;
3.
Spindle travel 105mm;
4.
4 spindle speeds 1400/4000/6000/9000rpm;
5.
can use cutter block or router bits.
